HP V1910 User Manual

181

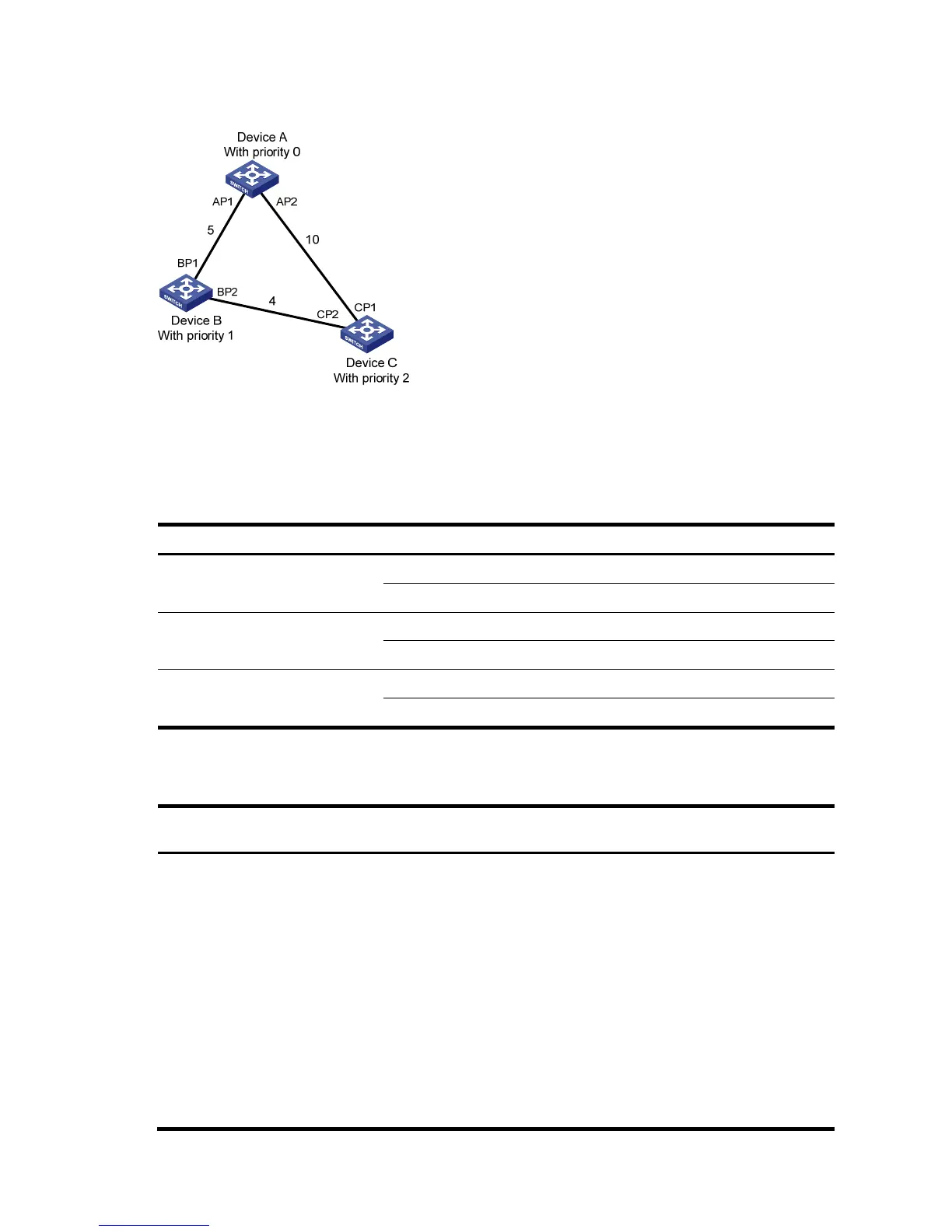

a. Network diagram for the STP algorithm
As shown in a, the priority values of Device A, Device B, and Device C are 0, 1, and 2, and the path costs
of links among the three devices are 5, 10 and 4 respectively.
 Initial state of each device
3. Initial state of each device
Device Port name BPDU of port
Device A
AP1 {0, 0, 0, AP1}
AP2 {0, 0, 0, AP2}
Device B
BP1 {1, 0, 1, BP1}
BP2 {1, 0, 1, BP2}
Device C
CP1 {2, 0, 2, CP1}
CP2 {2, 0, 2, CP2}
 Comparison process and result on each device
4. Comparison process and result on each device
Device Comparison process
Configuration BPDU on
p
orts after com
p
arison
Device A
 Port AP1 receives the configuration BPDU of Device B {1, 0, 1,
BP1}. Device A finds that the configuration BPDU of the local
port {0, 0, 0, AP1} is superior to the received configuration
BPDU, and therefore discards the received configuration
BPDU.
 Port AP2 receives the configuration BPDU of Device C {2, 0, 2,
CP1}. Device A finds that the BPDU of the local port {0, 0, 0,
AP2} is superior to the received configuration BPDU, and
therefore discards the received configuration BPDU.
 Device A finds that both the root bridge and designated bridge
in the configuration BPDUs of all its ports are itself, so it
assumes itself to be the root bridge. In this case, it does not
make any change to the configuration BPDU of each port, and
starts sending out configuration BPDUs periodically.
AP1: {0, 0, 0, AP1}
AP2: {0, 0, 0, AP2}

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
