HP V1910 User Manual

239
Enable LLDP on the ports of Switch A and Switch B to monitor the link between Switch A and Switch B and
the link between Switch A and the MED device on the NMS.

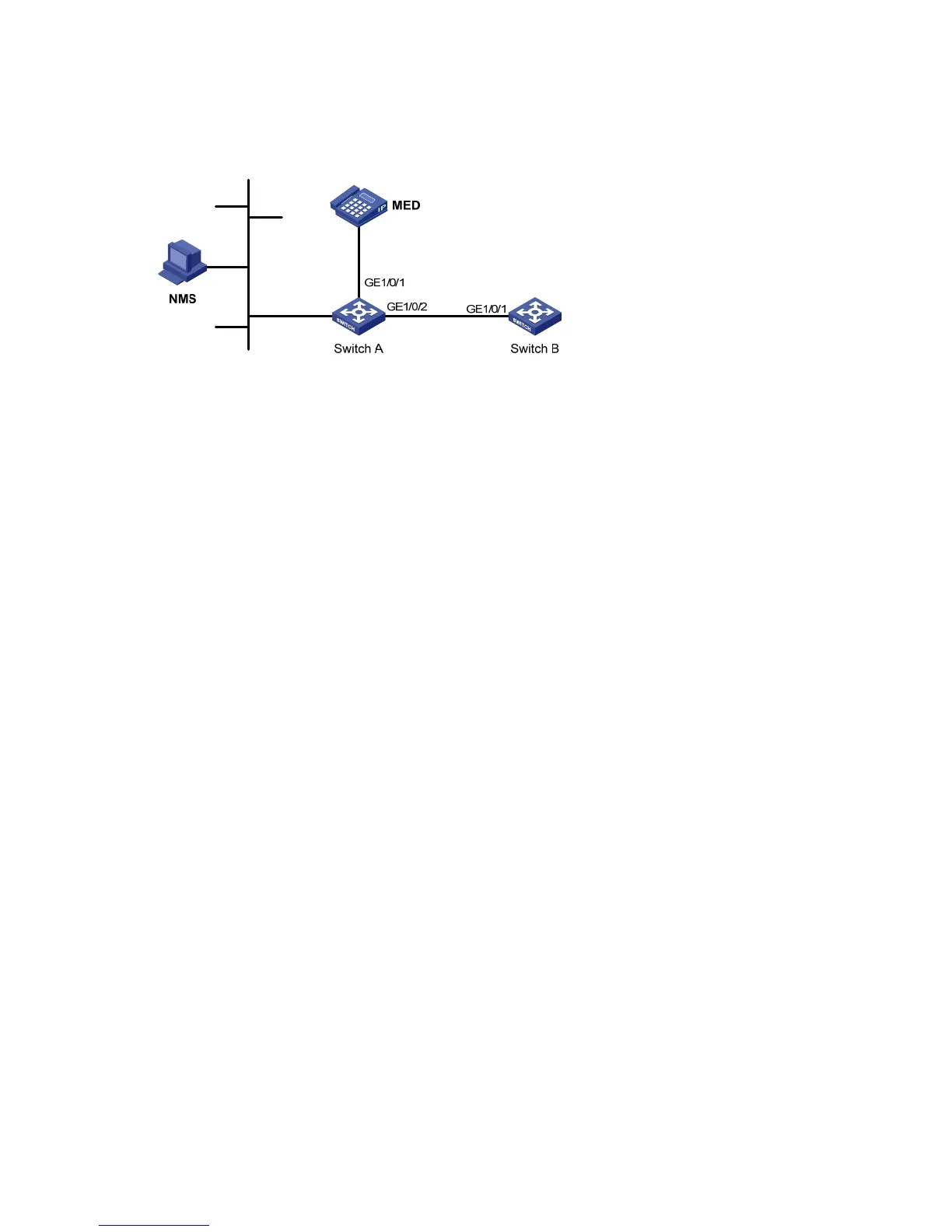

a. Network diagram for basic LLDP configuration
Configuration procedure
Table 61 Configure Switch A
# Enable LLDP on GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2. This step is optional, because LLDP
is enabled on Ethernet ports by default.
# Set the LLDP operating mode to Rx on GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2.
 Select Network  LLDP from the navigation tree to enter the Port Setup tab, as shown in b. Select port
GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 and click Modify Selected. The page shown in c
appears.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
