HP V1910 User Manual

260

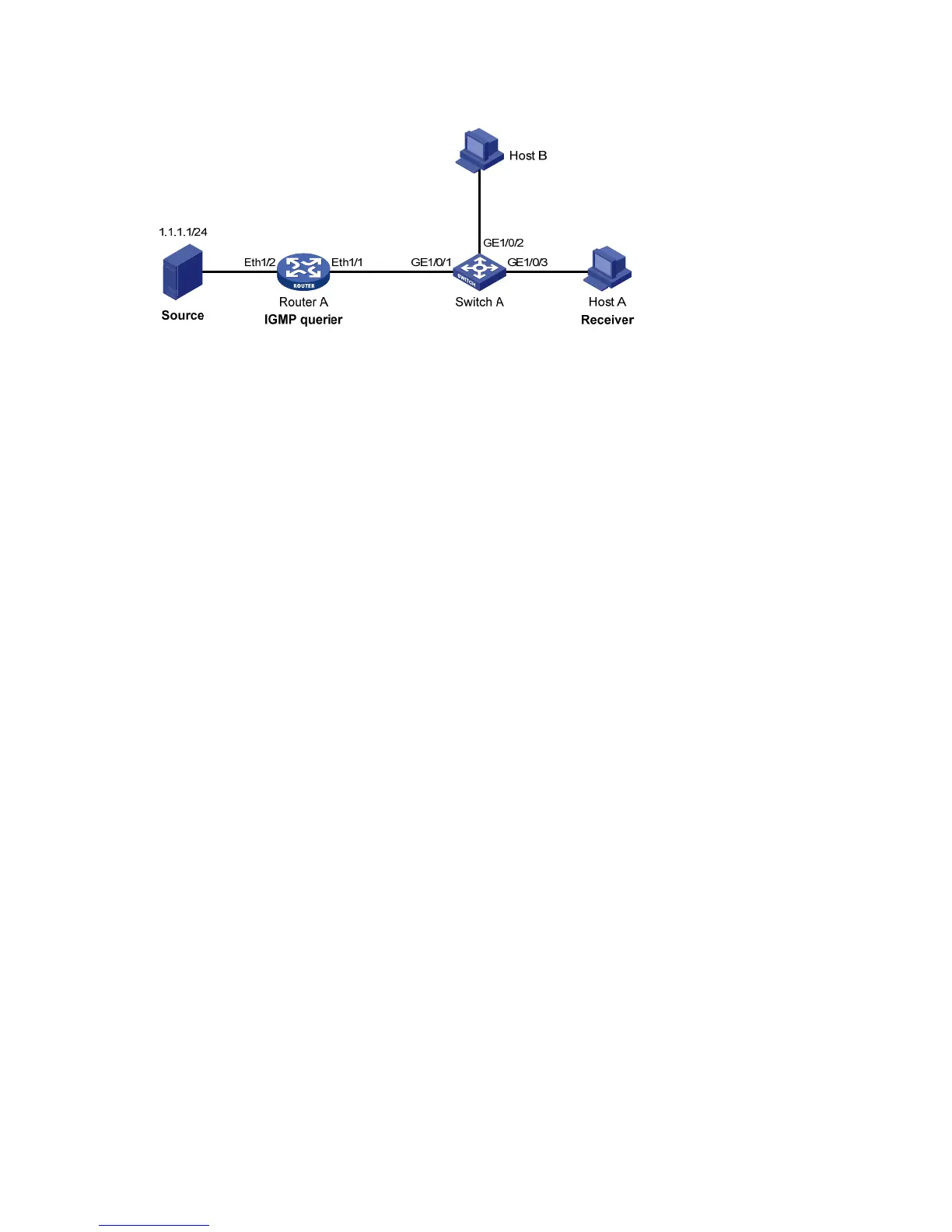

a. Network diagram for IGMP snooping configuration
Configuration procedure
Table 65 Configure IP addresses
Configure the IP address for each interface as per a. The detailed configuration steps are omitted.
Table 66 Configure Router A
Enable IP multicast routing, enable PIM-DM on each interface, and enable IGMP on Ethernet 1/1. The
detailed configuration steps are omitted.
Table 67 Configure Switch A
# Create VLAN 100 and add GigabitEthernet 1/0/1 through GigabitEthernet 1/0/3 to VLAN 100.
 Select Network  VLAN in the navigation tree and click the Create tab to enter the configuration page
shown in b.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
