HP V1910 User Manual

270

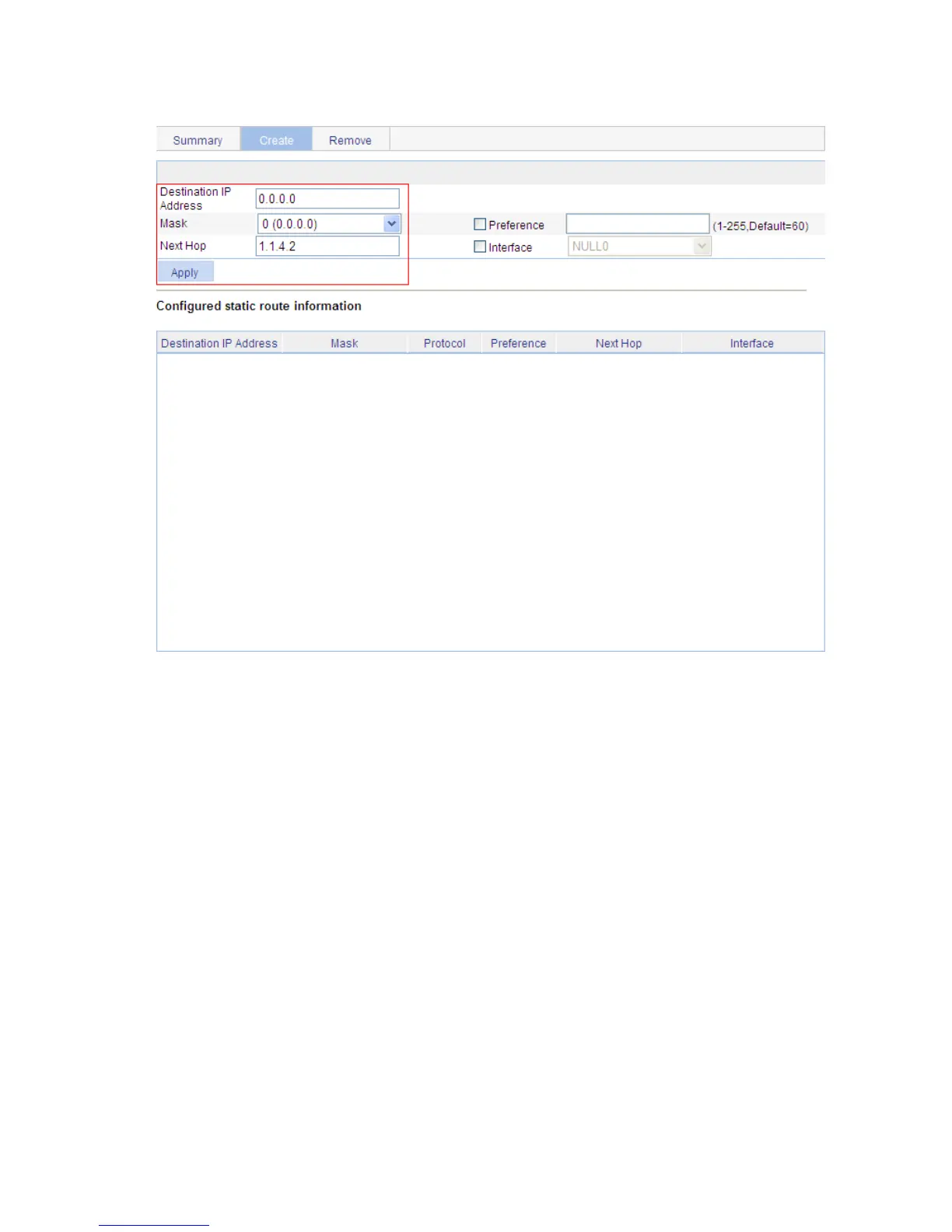

b. Configure a default route
# Configure a static route to Switch A and Switch C respectively on Switch B.
 Select Network  IPv4 Routing from the navigation tree of Switch B, and then click the Create tab to
enter the page shown in c.
 Type 1.1.2.0 for Destination IP Address.
 Select 24 (255.255.255.0) from the Mask drop-down list.
 Type 1.1.4.1 for Next Hop.
 Click Apply.
 Type 1.1.3.0 for Destination IP Address.
 Select 24 (255.255.255.0) from the Mask drop-down list.
 Type 1.1.5.6 for Next Hop.
 Click Apply.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
