HP V1910 User Manual

405

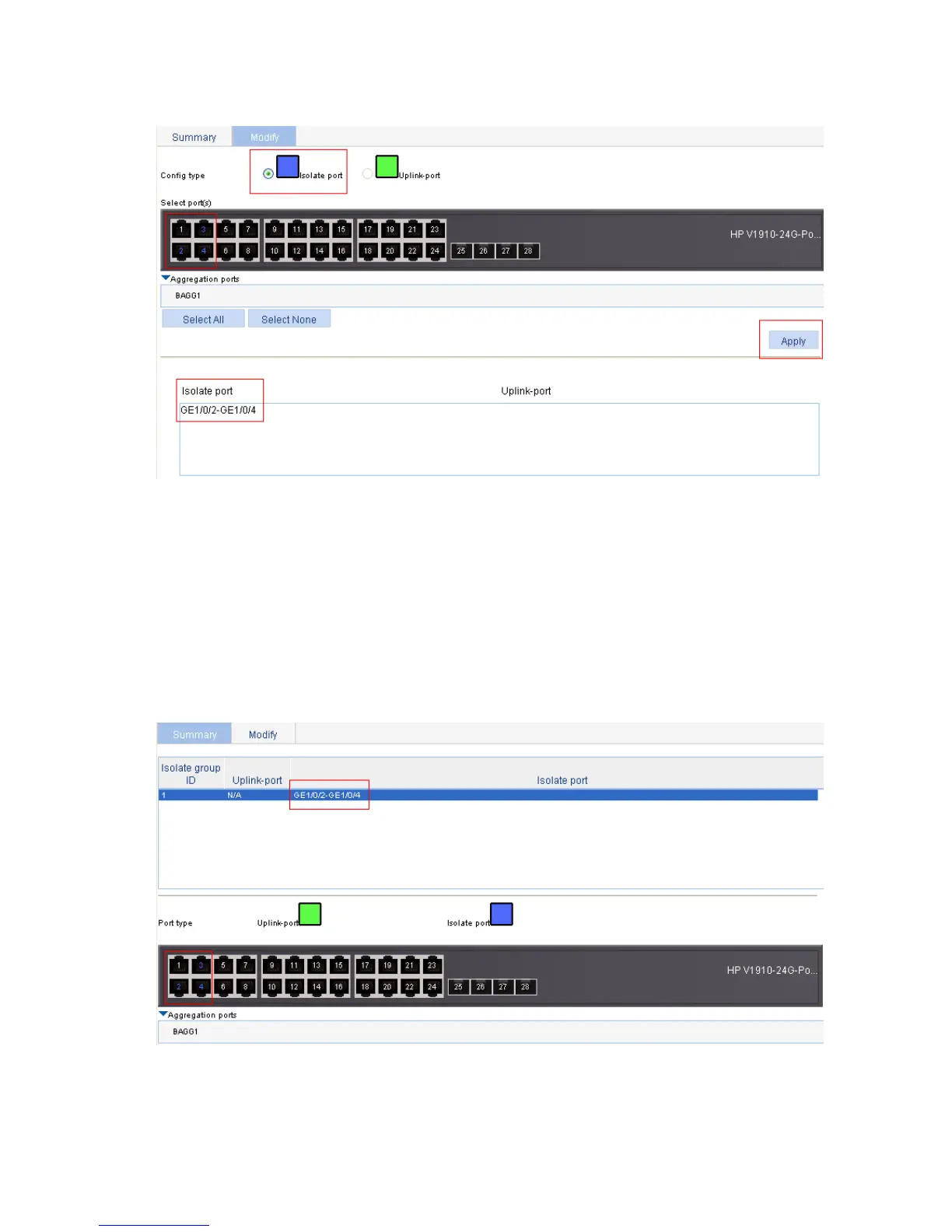

a.
Configure isolated ports for an isolation group
 Select Isolate port for the port type.
 Select GigabitEthernet 1/0/2, GigabitEthernet 1/0/3, and GigabitEthernet 1/0/4 on the chassis
front panel.
 Click Apply. A configuration progress dialog box appears.
 After the configuration process is complete, click Close in the dialog box.
# View information about the isolation group.
Click Summary. The page shown in b appears.
b. Information about port isolation group 1
As shown on the page, port isolation group 1 contains these isolated ports: GigabitEthernet 1/0/2,
GigabitEthernet 1/0/3, and GigabitEthernet 1/0/4.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
