HP V1910 User Manual

34

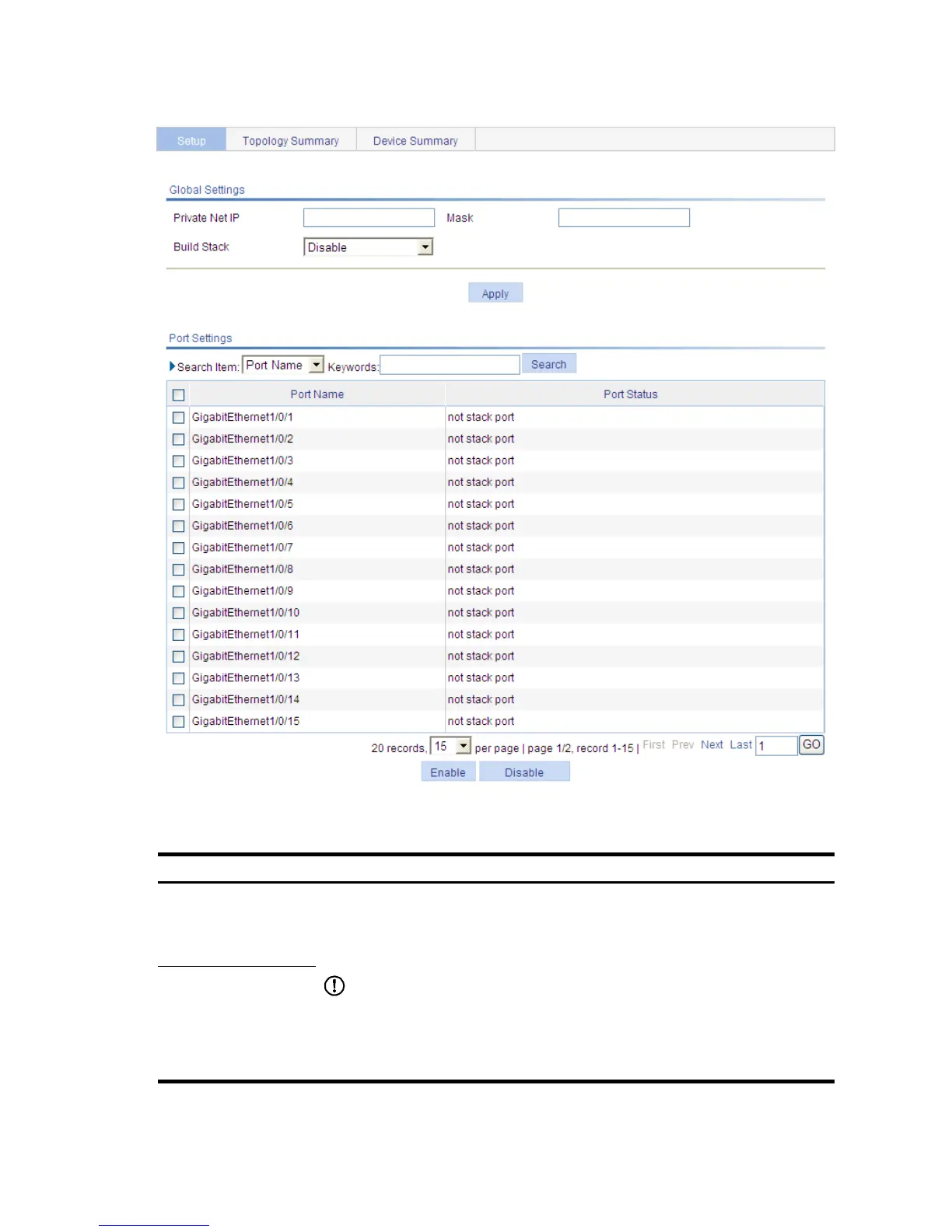

a. Setup
2. Configuration items of global parameters
Item Descri
p
tion
Private Net IP
Configure a private IP address pool for the stack.
The master switch of a stack must be configured with a private IP address pool to
ensure that it can automatically allocate an available IP address to a member switch
when the device joints the stack.
IMPORTANT:
When you configure a private IP address pool for a stack, the number of IP addresses
in the address pool needs to be equal to or greater than the number of switches to be
added to the stack. Otherwise, some switches may not be able to join the stack
automatically for lack of private IP addresses.
Mask

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
