HP V1910 User Manual

71
Configuration procedure
# Set the rate of GigabitEthernet 1/0/4 to 1000 Mbps.

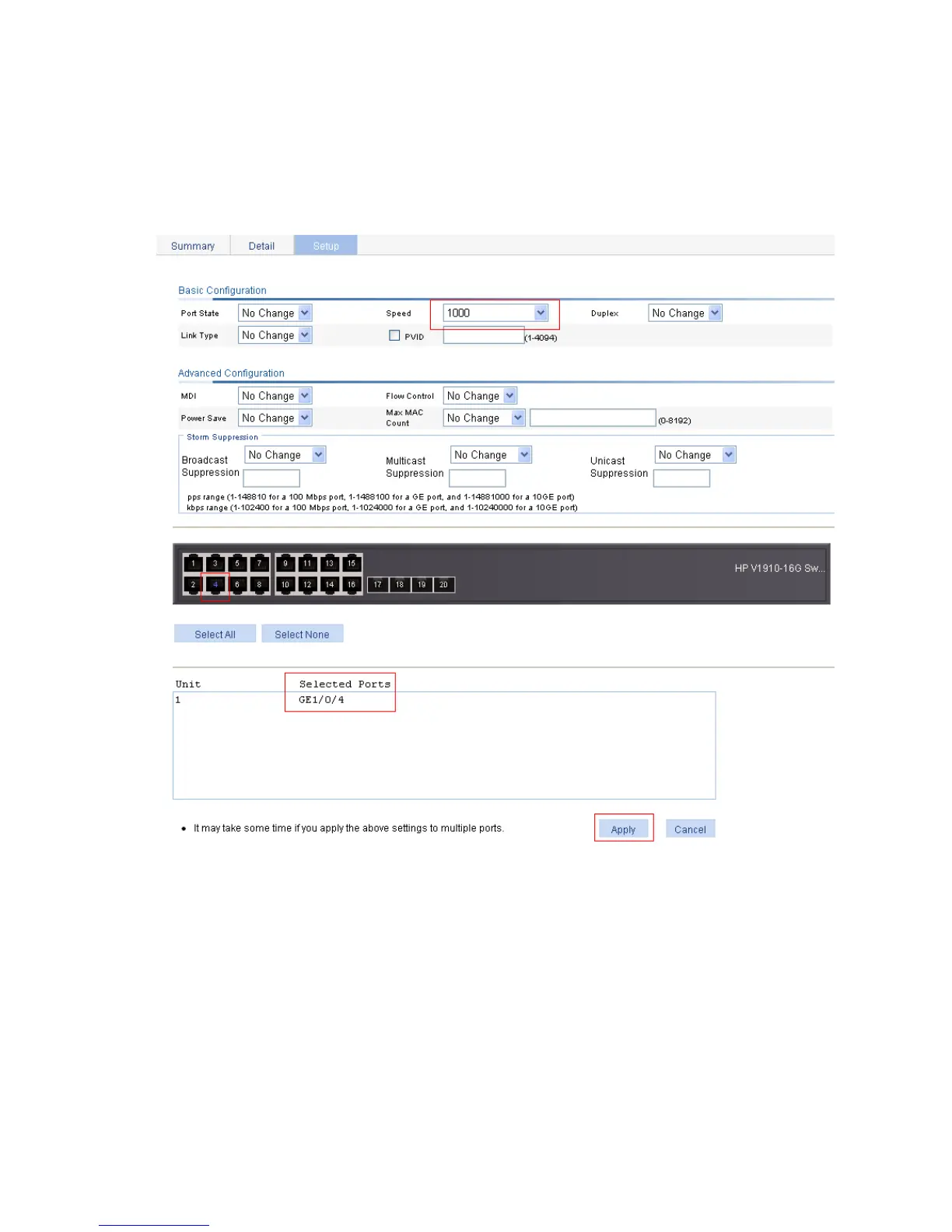

 Select Device  Port Management from the navigation tree, click the Setup tab to enter the page
shown in a, and make the following configurations:
a. Configure the rate of GigabitEthernet 1/0/4
 Select 1000 in the Speed dropdown list.
 Select GigabitEthernet 1/0/4 on the chassis front panel.
 Click Apply.
# Batch configure the auto-negotiation rate range on GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and
GigabitEthernet 1/0/3 as 100 Mbps.
 Select Auto 100 in the Speed dropdown list on the page shown in b.
 Select GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 on the chassis
front panel.
 Click Apply.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
