DIMM 1

The second DIMM from the top of the IXS card is the failing item. To determine the

part number, go to symbolic FRU “MEMORY” on page 558.

This ends the procedure.

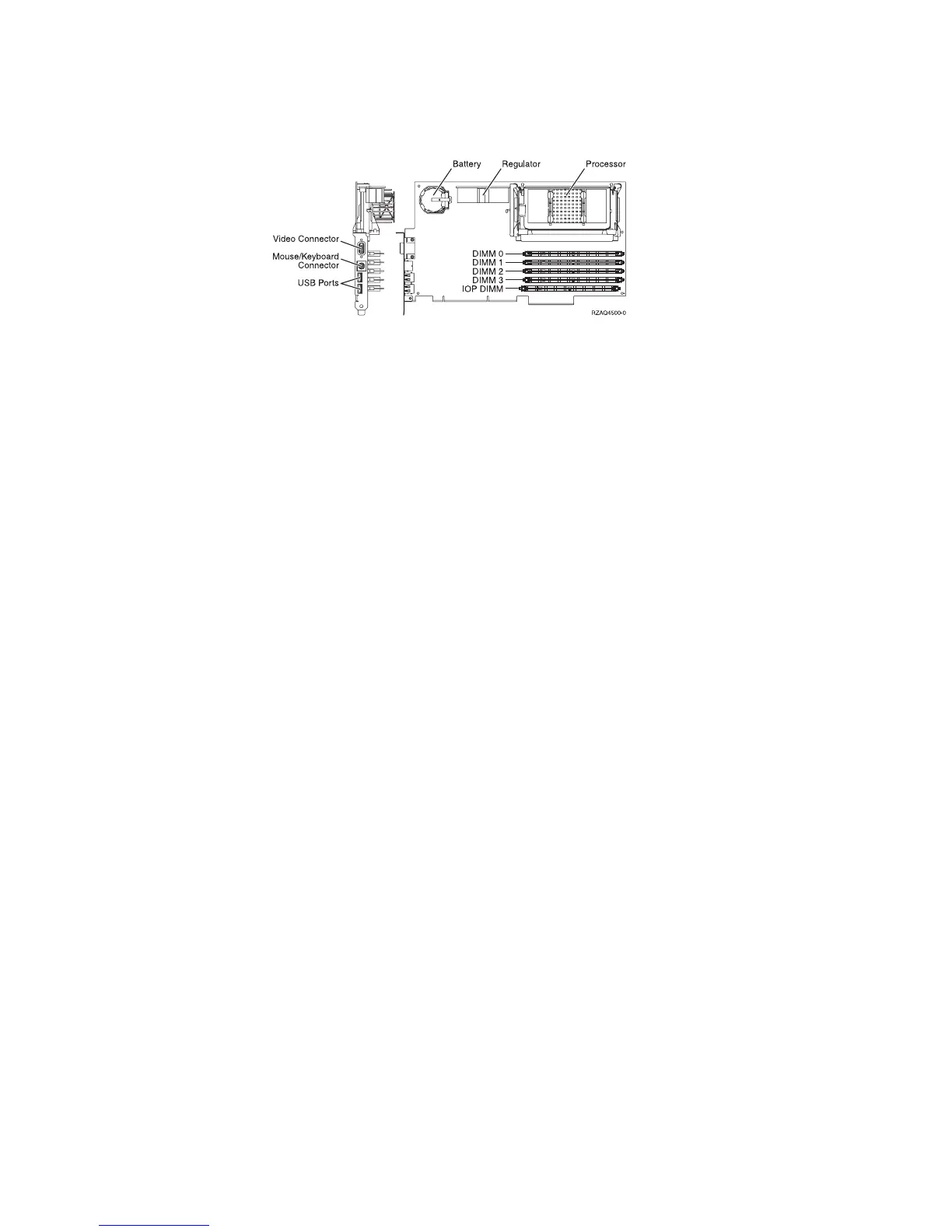

Figure 9. Locations of DIMM 0, DIMM 1, DIMM 2 and DIMM 3 on 2890 Integrated xSeries Server (IXS) card.
