This ends the procedure.
Type 2748, 2763, 2778 – Cache Directory Card
Attention: All cards are sensitive to electrostatic discharge (see “Appendix C.
Working with Electrostatic Discharge-Sensitive Parts” on page 955).
1. Remove the card using the concurrent card removal and replacement procedure
for the model or FC that you are working on (see “Chapter 4. Removal and
Installation Procedures” on page 617).
2. Locate the cache directory card B; a small rectangular card mounted on the I/O
card. See Figure 23.
3. Spread the tabs on each side of the cache directory card and raise the back of
the cache directory card B up away from the I/O card. The cache directory
card will pivot up about 20°
4. Pull cache directory card out.
Note: To install the replacement cache directory card, the cache directory card
should be wiggled into place at a 20°angle before pushing it down and
locking the tabs. Be sure that the holes on each side of the cache directory
card are filled by the pegs on the cache card to ensure proper seating.
This ends the procedure.
Type 2890 – Integrated xSeries Server (IXS)
Attention: All cards are sensitive to electrostatic discharge (see “Appendix C.
Working with Electrostatic Discharge-Sensitive Parts” on page 955).

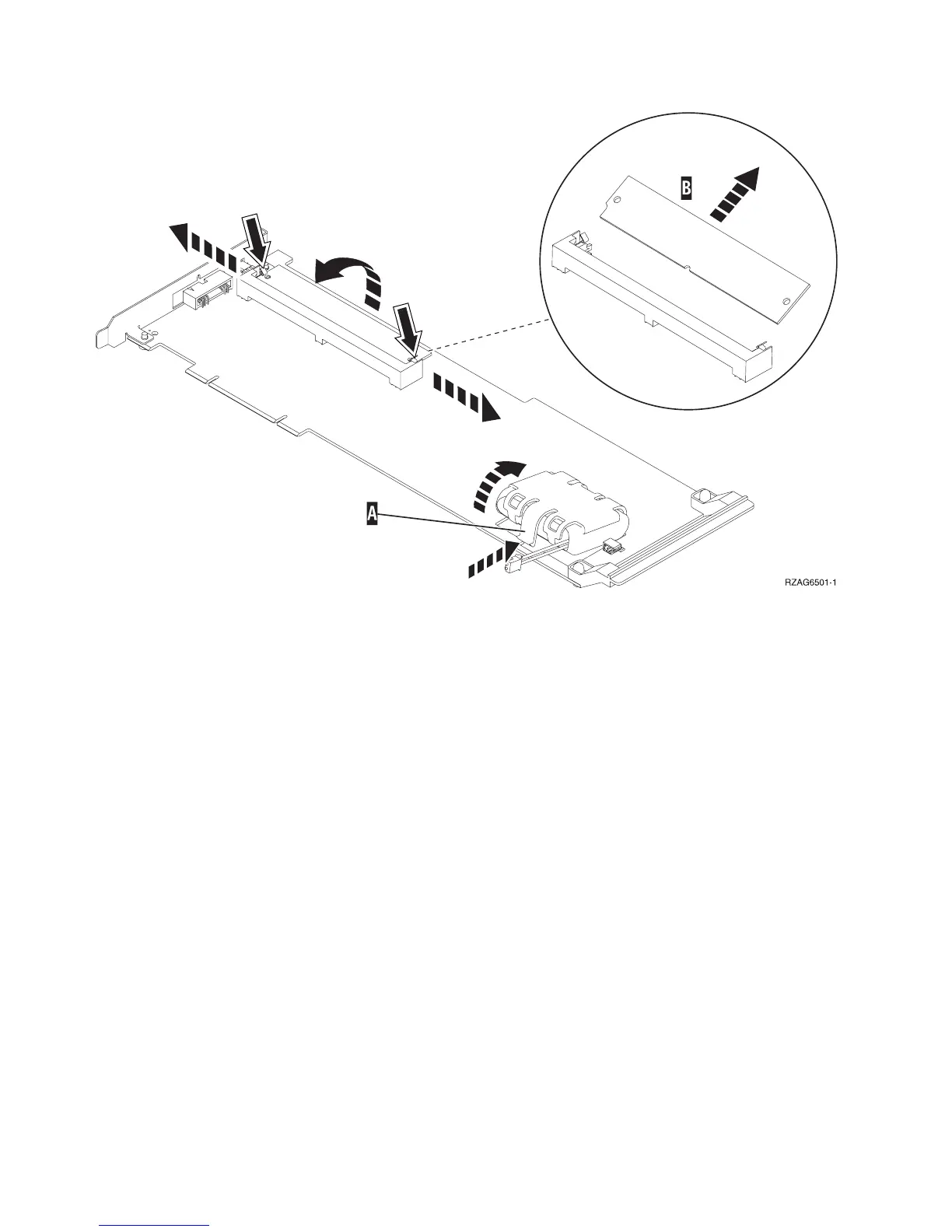

Figure 23. Cache Battery Pack and Cache Directory Card for Type 2748, 2763, 2778
Remove and Replace Procedures
686
iSeries Model 830, 840, SB2, and SB3 Problem Analysis, Repair and Parts V5R1
