Locations — FC 5079 I/O Tower
J11 is an RPO connection, J14 is a Uninterruptable Power Supply connector, J15 is
an SPCN 1 connector, and J16 is an SPCN 2 connector.
Note: Service the FC 5079 as two independent FC 5074 towers in the same 1.8
meter rack. See “Locations — FC 5074 I/O Tower” on page 736.

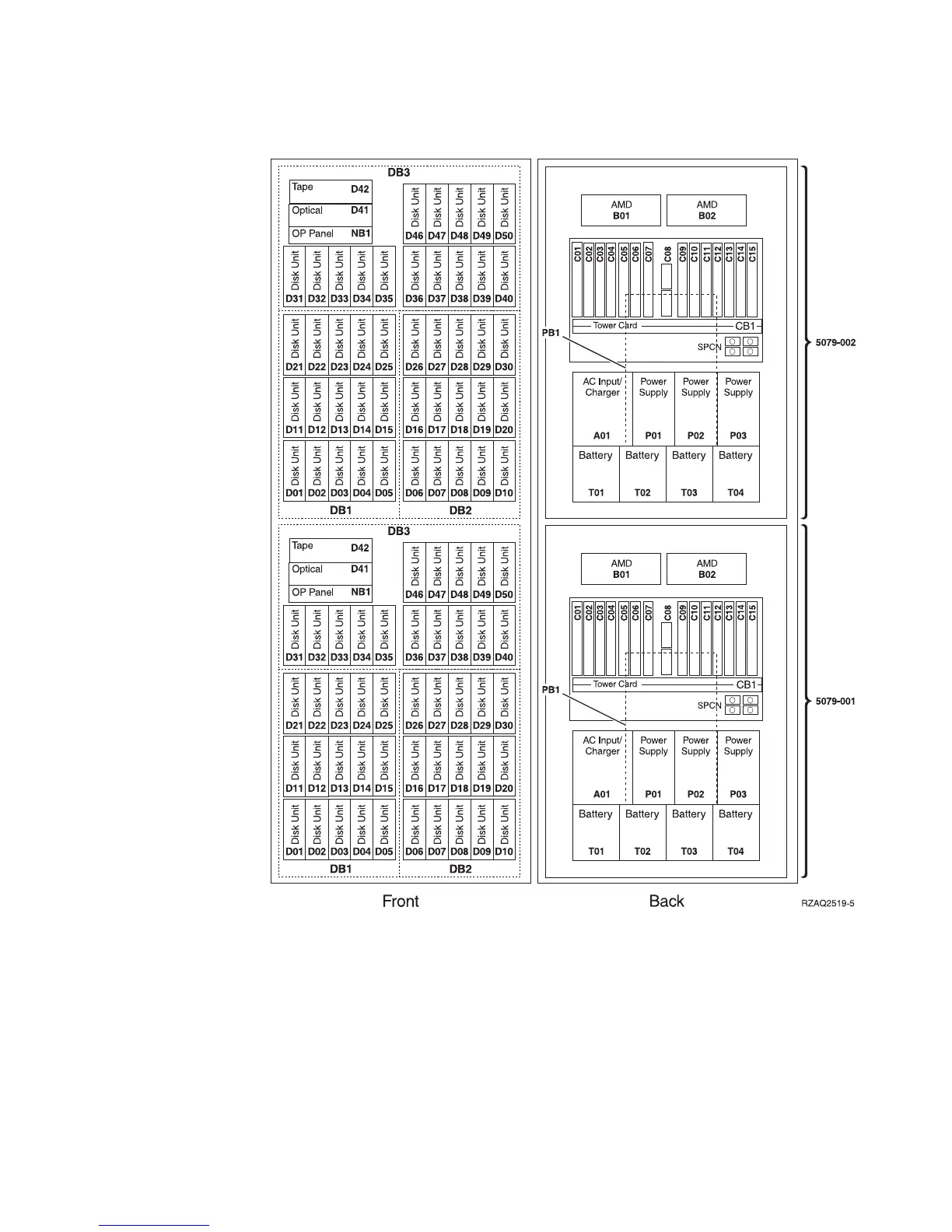

Figure 48. Locations for FC 5079 I/O Tower
Locations and Addresses
Chapter 5. Locations, Addresses, and Part Listings 747
