Table 70. FC 5075 I/O Tower Signal Cables

Name Description Part Number

SIGC01 SPCN Card (SB1) to Control

Panel (NB1)

04N6113

SIGC02 SPCN Card (SB1) to rear

SPCN connectors

23L2910

SIGC03 SPCN Card (SB1) to Device

Board (DB1)

23L2911

SIGC04 Tower Card (CB1) to SPCN

Card (SB1)

23L2913

SIGC05 Tower Card (CB1) to rear

HSL connectors

23L2888

SIGC06 Tower Card (CB1) to Device

Board (DB1)

23L2889

Table 71. FC 5075 I/O Tower Power Cables

Name Description Part Number

PWRC01 Line cord to Power

Distribution Backplane (PB1)

04N5192

PWRC02 Power Distribution

Backplane (PB1) to SPCN

Card (SB1) and Device Board

(DB1)

23L2909

PWRC03 SPCN Card (SB1) to AMDs

(B01 and B02)

23L2908

FC 5078, 0578 I/O Tower

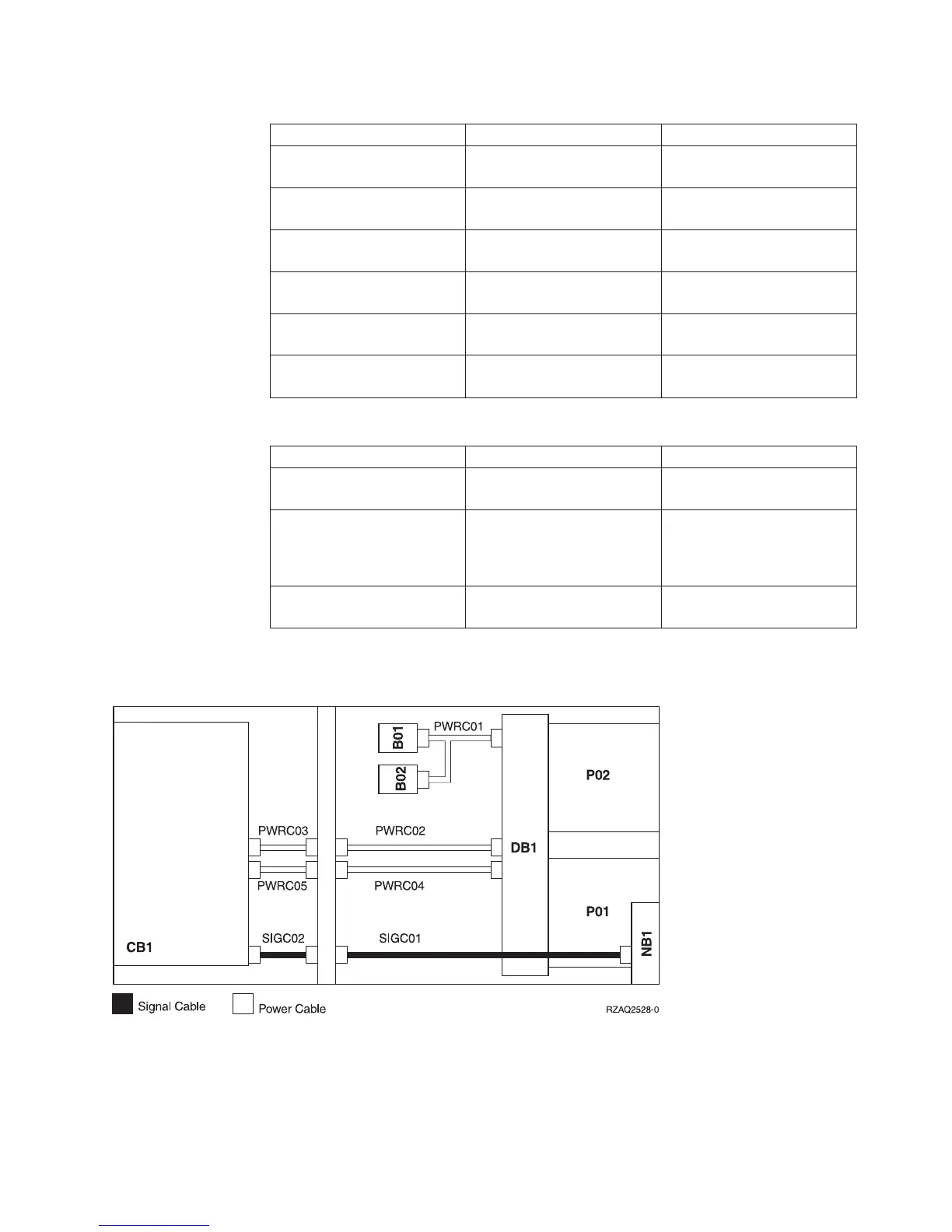

Figure 61. FC 5078, 0578 I/O Tower Power and Signal Cables

Power and Signal Cables

Chapter 5. Locations, Addresses, and Part Listings 801
