b. Disconnect the power cord.

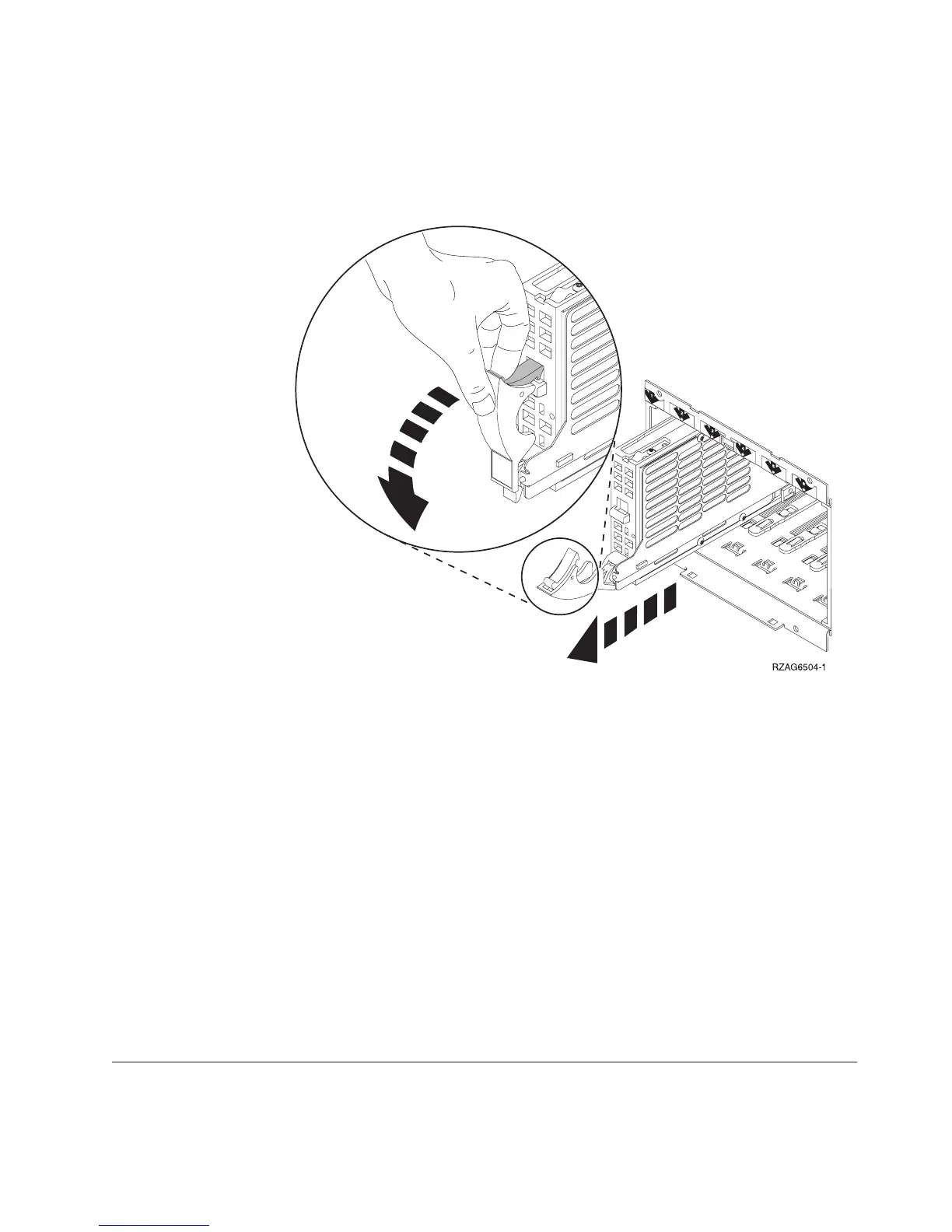

c. To remove the disk unit, pinch the two surfaces of the latching mechanism
together and pull the handle towards you to release the disk unit from the
slot.
d. Remove the unit from the tower.
5. Are you finished with the repair?
No Yes
↓ Replace the covers that were removed during this procedure and return
to the procedure that sent you here.
This ends the procedure.
6. To Install a disk unit using dedicated maintenance perform the following:
a. Power off the expansion tower (see “Expansion Tower and SPCN Controlled
Expansion Unit Power Procedure” on page 926).
b. Disconnect the power cord.
c. Put the disk unit part way into the desired slot and rotate the handle of the
disk unit towards you.
d. Push the disk unit completely into the slot and rotate the handle towards
the disk unit to latch it into the slot.
e. Replace the covers that were removed during this procedure and return to
the procedure that sent you here.
This ends the procedure.
FC 5075 – Control Panel – NB1
1. Open the front cover.
Remove and Replace Procedures
Chapter 4. Removal and Installation Procedures 645
