Locations — Models 840, SB3 System Unit with Processor

Tower and FC 9079 Base I/O Tower

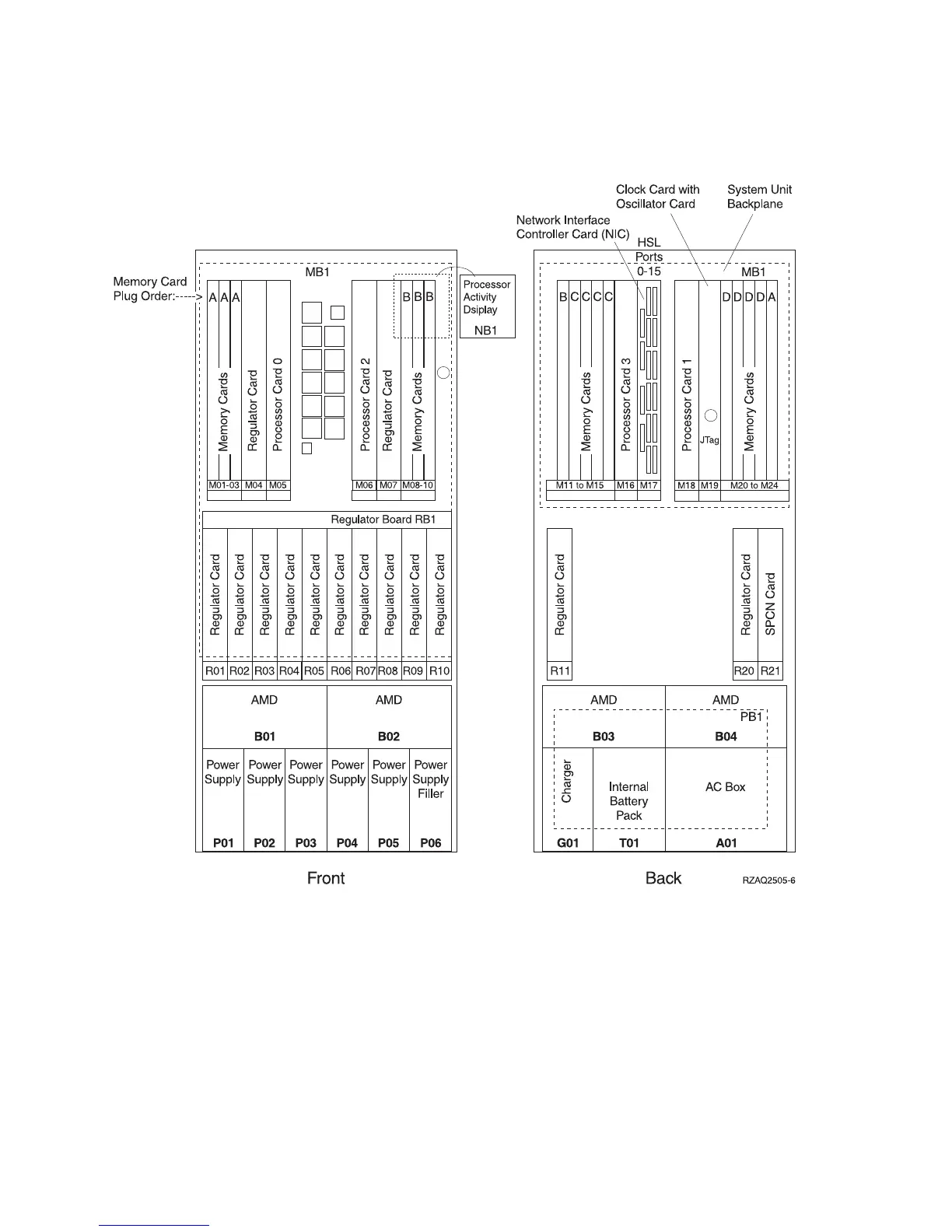

Figure 35. Model 840, SB3 Processor Tower

Locations and Addresses

Chapter 5. Locations, Addresses, and Part Listings 719
