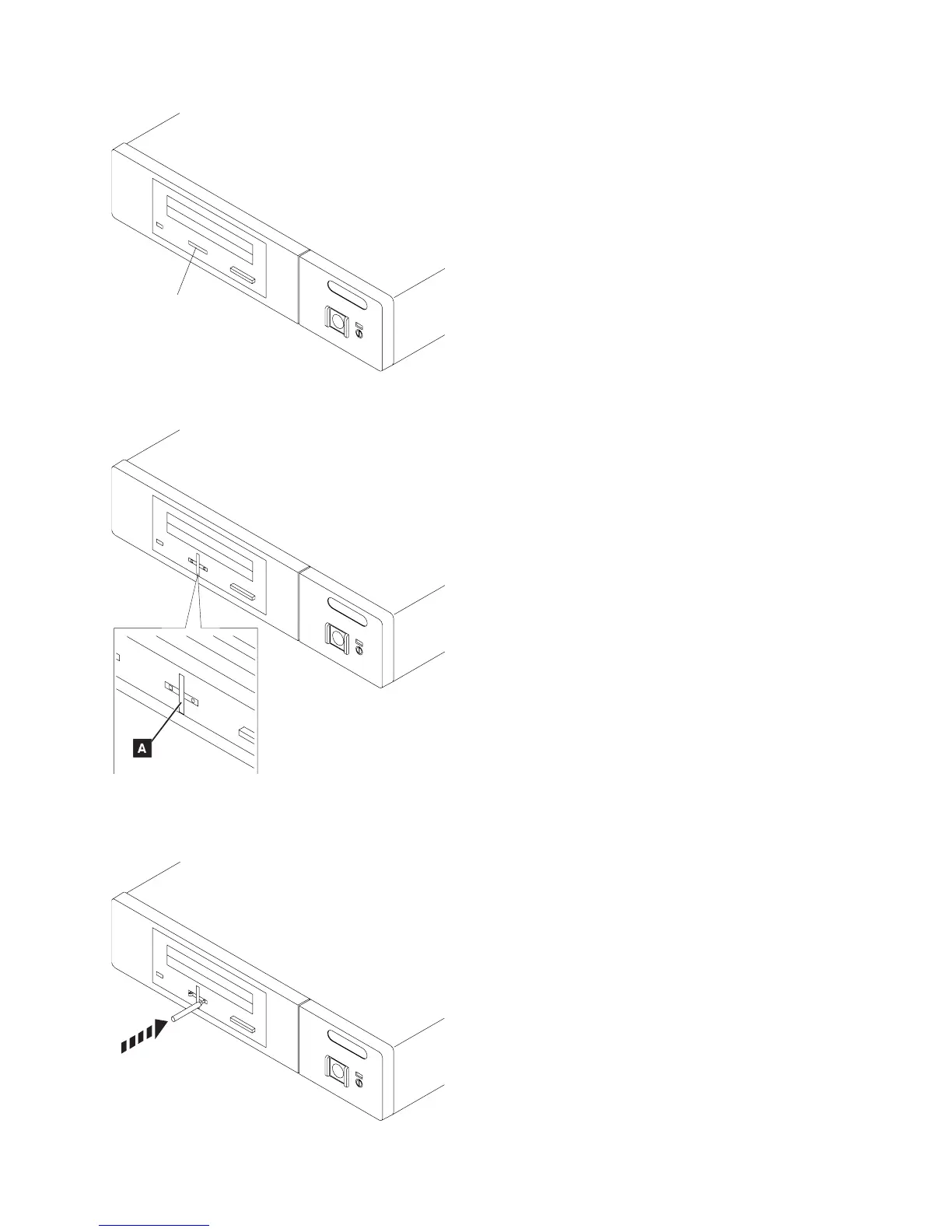

3. Insert a solid metal rod (like a bristol wrench) into the manual tape cartridge

unload hole and push in until it stops and the arm appears.

Manual Tape

Cartridge

Unload Lid

RV3B766-0

RV3B767

-

0

RV3B768-0

Remove and Replace Procedures

Chapter 4. Removal and Installation Procedures 703
