Notes:
1. The FC 9079 Base I/O Tower contains two system PCI busses.
2. In the FC 9079 Base I/O Tower FRU Locations and Failing Components table
below, the first of the two busses in the tower is ″0001″ and the second bus in
the tower is designated as ″yyyy″.
3. In FC 9079 towers the bus connected to card positions C01 - C04 is bus number
0001. The other bus in FC 9079 towers is not required to be in order.
4. Card position C01 is required to be an I/O processor.
5. Card positions C05 and C11 are required to be either I/O processors or
Integrated xSeries Servers (IXS).
6. J11 is an RPO connection, J14 is a Uninterruptable Power Supply connector, J15
is an SPCN 1 connector, and J16 is an SPCN 2 connector.
7. Multi-adapter Bridge domains are labeled PCI Bridge Set inside the tower.
8. The following table provides information necessary to identify the IOP to
which IOAs are assigned. The left column indicates the domain in which IOA
assignment is allowed. The right column is used to determine the IOP to which
an IOA is assigned. The first position in the list must be an IOP. The remaining
positions may be IOPs or IOAs. IOAs are assigned to the first IOP located to
their left in the list. Although IOAs can be manually reassigned using SST/DST,
the IOA assignments return to the default order after each IPL.
Multi-adapter bridge domain / PCI Bridge
Set
IOA assignment rules
C01 - C04 C01, C02, C03, C04
C05 - C10 C05, C06, C07, C08, C09, C10

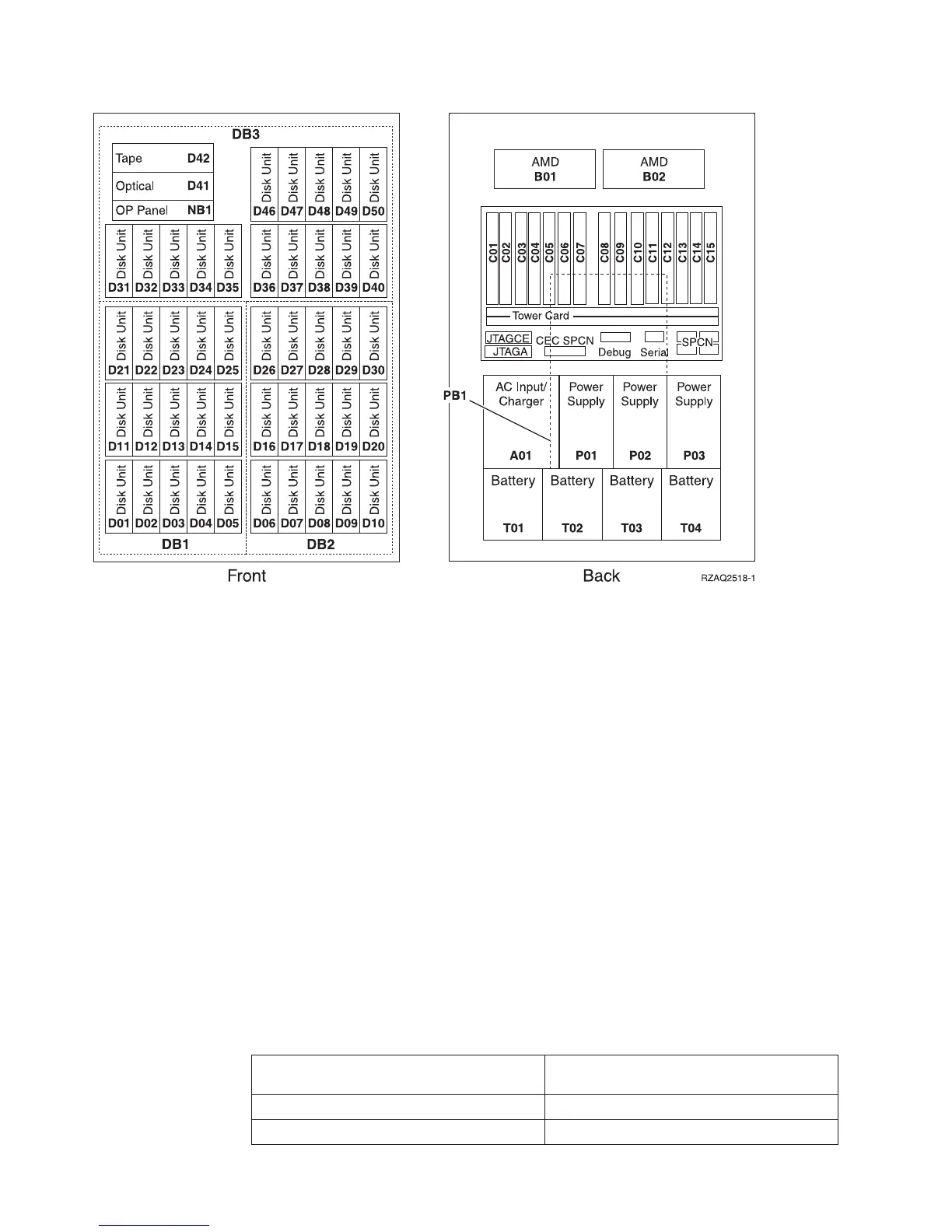

Figure 36. Locations for FC 9079 Base I/O Tower (On Models 840, SB3 System Unit)
Locations and Addresses
724
iSeries Model 830, 840, SB2, and SB3 Problem Analysis, Repair and Parts V5R1
