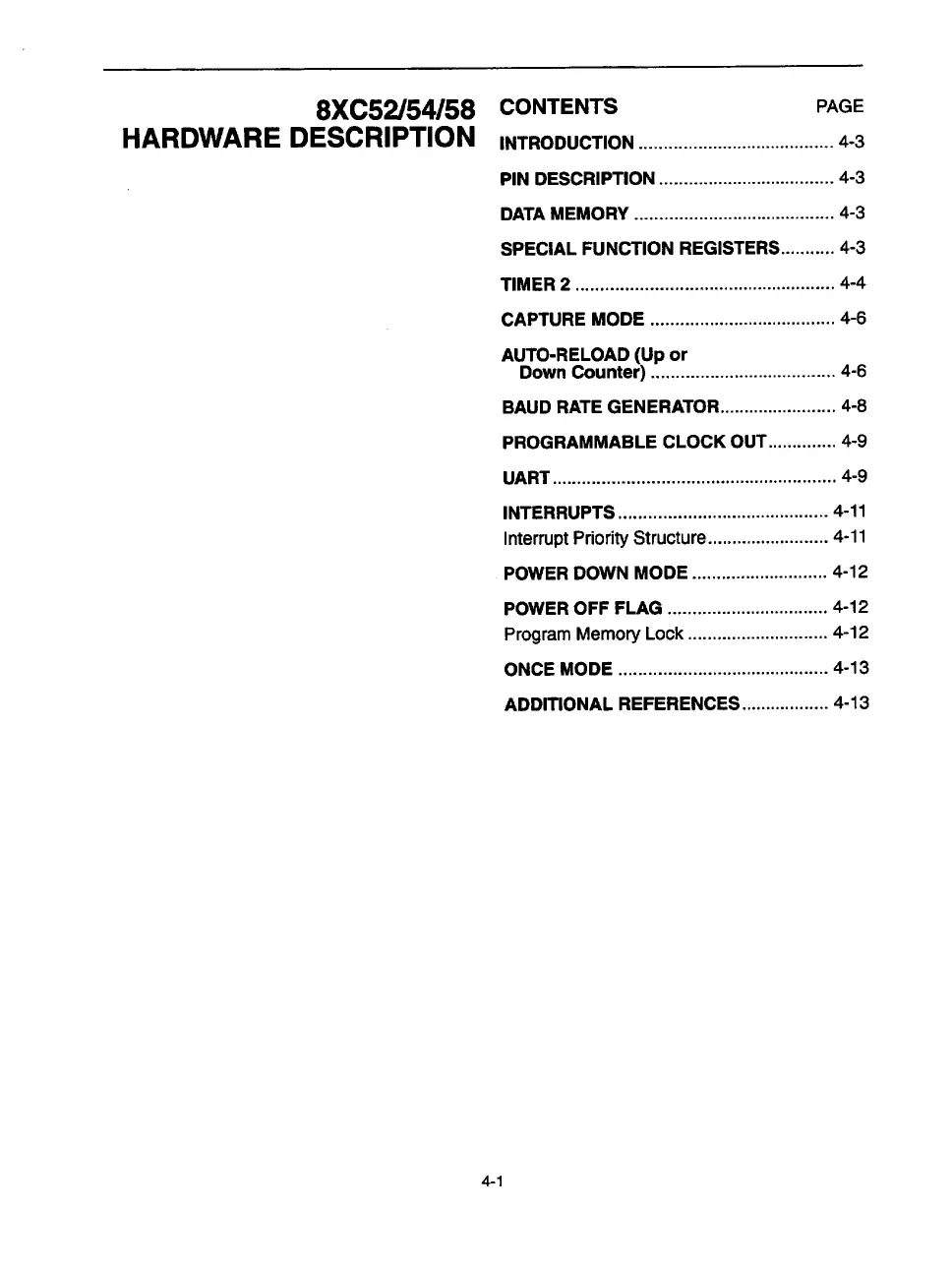

8XC52/54/58 CONTENTS
PAGE
HARDWAREDESCRIPTION lNTRODUCTION ........................................ 4-3
PIN DESCRIPTION .................................... 4-3
DATAMEMORY ......................................... 4-3
SPECIAL FUNCTION REGISTERS........... 4-3
TIMER 2
..................................................... 4-4
CAPTURE MODE ...................................... 4-6
AUTO-RELOAD(Up or
Down Counter) ...................................... 4-6
BAUDRATEGENERATOR........................ 4-8
PROGRAMMABLE CLOCK OUT.............. 4-9
UART..........................................................4-9
INTERRUPTS........................................... 4-11
InterruptPriorityStructure......................... 4-11
POWERDOWN MODE ............................ 4-12
POWEROFF FLAG ................................. 4-12
ProgramMemoryLock............................. 4-12
ONCE MODE ........................................... 4-13
ADDITIONAL REFERENCES.................. 4-13
