IFS NS3502-8P-2S User Manual
121
VLAN Port Configuration

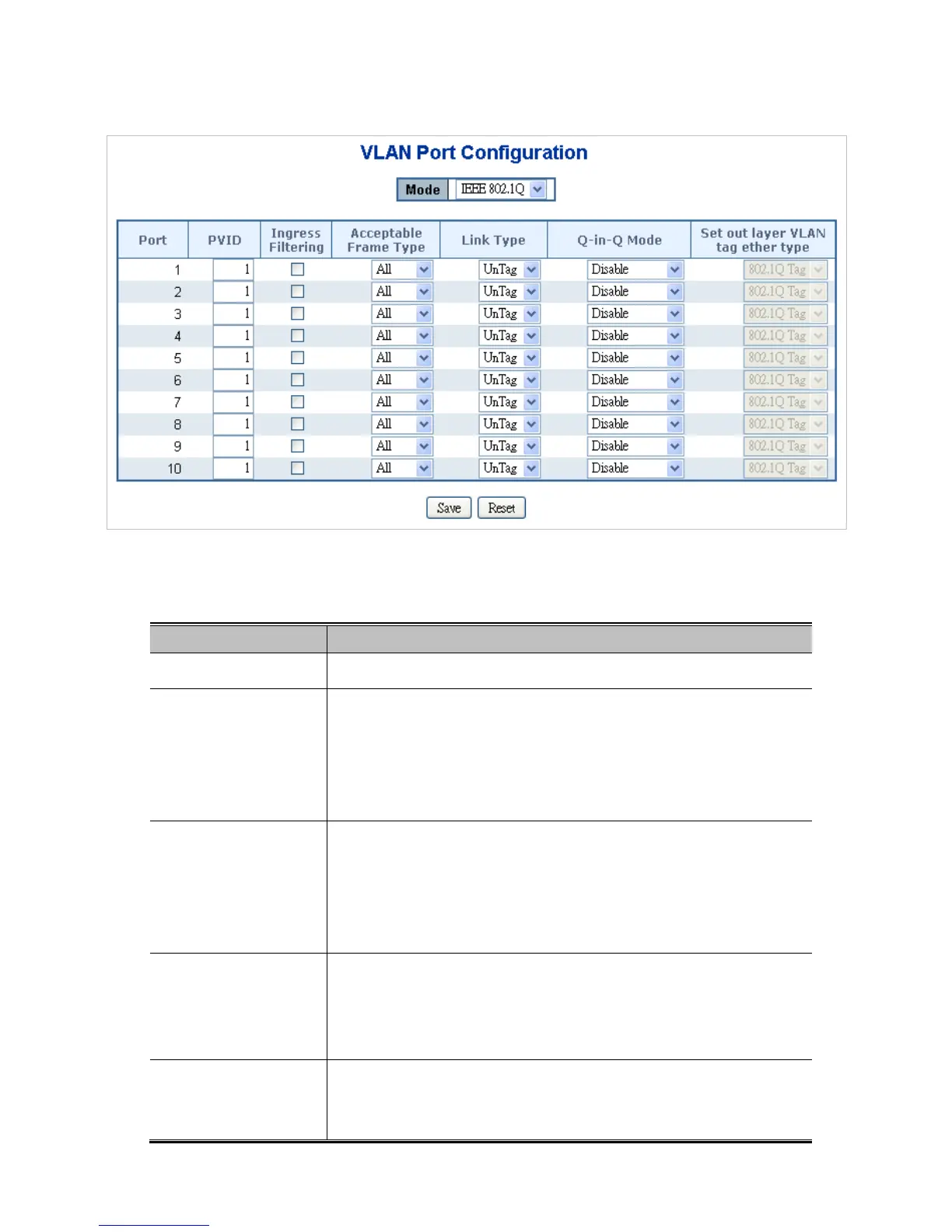

The VLAN Port Configuration screen in Figure 4-6-2 appears.
Figure 4-6-2: VLAN Port Configuration page screenshot
The page includes the following fields:
Object Description
• Port
This is the logical port number for this row.
• PVID
Allow assign PVID for selected port. The range for the PVID is
1-4094.
The PVID will be inserted into all untagged frames entering the
ingress port. The PVID must as same as the VLAN ID that the port
belong to VLAN group, or the untagged traffic will be dropped.
Ingress Filtering Enable ingress filtering for a port by checking the box. This
parameter affects VLAN ingress processing. If ingress filtering is
enabled and the ingress port is not a member of the classified
VLAN of the frame, the frame is discarded. By default, ingress
filtering is disabled (no checkmark).
• Accept Frame Type
Determines whether the port accepts all frames or only tagged
frames. This parameter affects VLAN ingress processing. If the
port only accepts tagged frames, untagged frames received on
the port are discarded. By default, the field is set to All.
• Link Type
Allow 802.1Q Untagged or Tagged VLAN for selected port.
When adding a VLAN to selected port, it tells the switch whether
to keep or remove the tag from a frame on egress.
