The second method to run parallel test scripts is to use groups with a single TSP-Link network. A
group consists of one or more nodes with the same group number. Each group on the TSP-Link
network can run different test scripts at the same time (in parallel).
The following figure displays a single TSP-Link network with groups. This method requires one
TSP-Link network and a single GPIB connection to the computer.

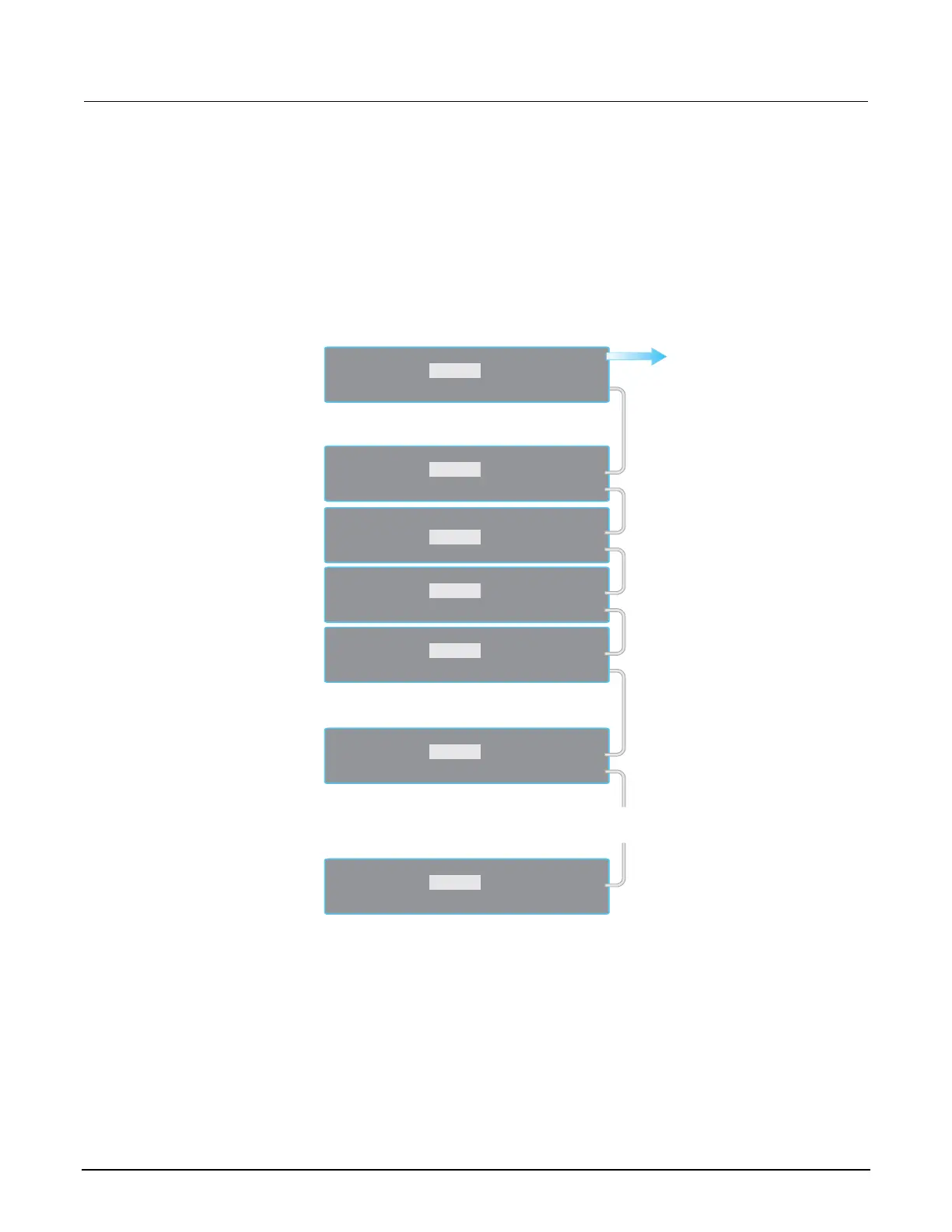

Figure 91: Model 2651A single TSP-Link network with groups
GPIB
TSP-Link In
TSP-Link Out
GPIB
TSP-Link In
TSP-Link Out
GPIB
TSP-Link In
TSP-Link Out
•
•
•
GPIB
TSP-Link In
TSP-Link Out
GPIB
TSP-Link In
TSP-Link Out
GPIB
TSP-Link In
TSP-Link Out
SMU B
GPIB
TSP-Link In
TSP-Link Out
SMU A
GPIB
TSP-Link In
TSP-Link Out
SMU C
GPIB
TSP-Link In
TSP-Link Out
SMU A
GPIB
TSP-Link In
TSP-Link Out
SMU n
SMU n = last SMU in system.
Node n = last node in system.
GPIB
TSP-Link In
TSP-Link Out
SMU D
GPIB
Master
Node 3
Node 4
Node 5
Node n
Node 2
Group leader
Node 6
Group leader
TSP-Link In
TSP-Link Out
SMU A
To
P
C
Group 1
Group 2
Group 0
The following table describes the functions of a single TSP-Link network. Each group in this example
runs multiple test scripts at the same time (parallel processing).
