Model 2651A High Power System SourceMeter® Instrument Reference Manual Section 7: Command reference

2651A-901-01 Rev. A / March 2011 7-29

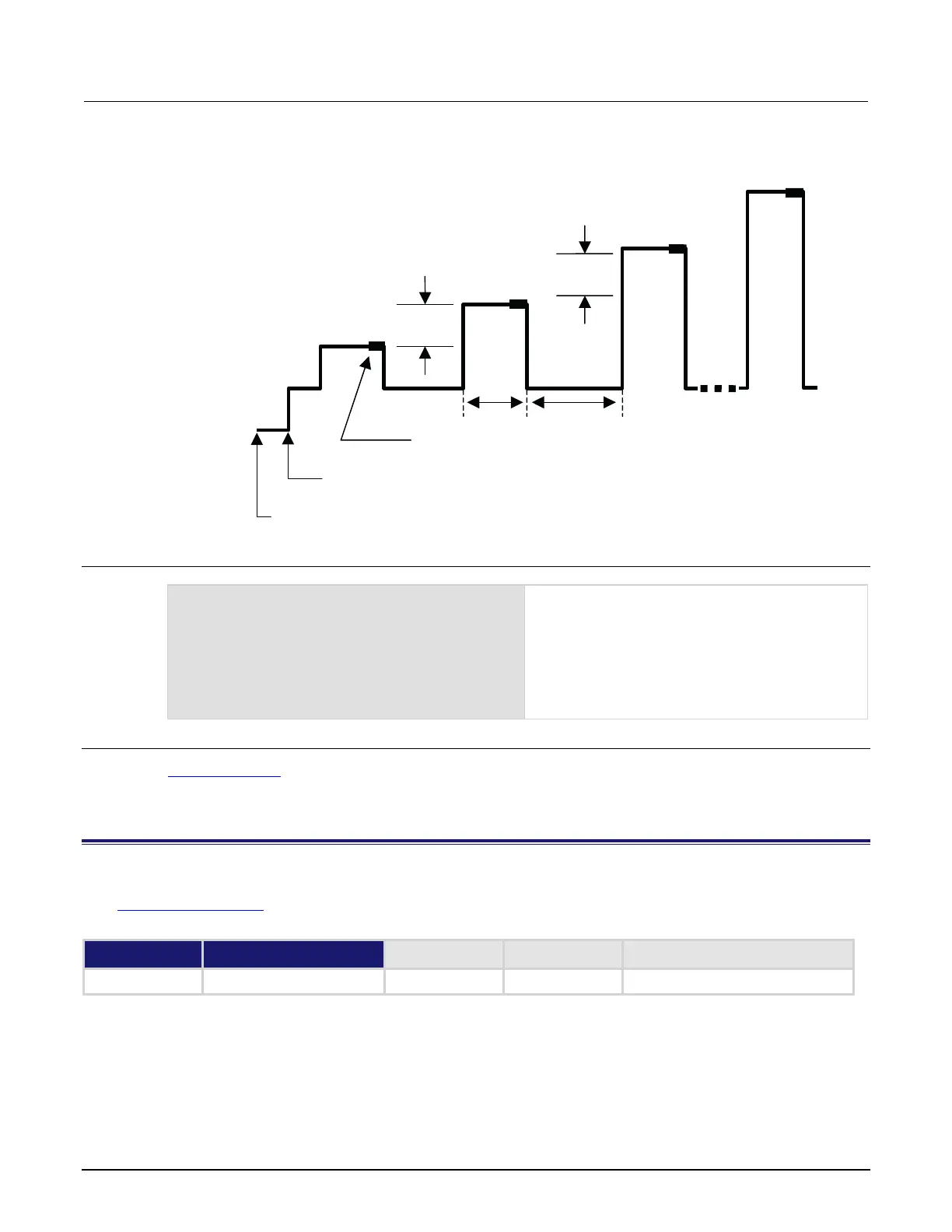

Figure 99: ConfigPulseIMeasureVSweepLin()

Pulse initiated here

toff

Measurement (1/NPLC seconds)

ton

bias level

start

step

stop

step = (stop - start)/(points -1)

Last source value before pulse train was initiated

Example

ConfigPulseIMeasureVSweepLin(smua, 0,

0.01, 0.05, 1, 1e-3, 0.1, 20,

smua.nvbuffer2, 3)

Set up a pulsed sweep that will use SourceMeter

instrument channel A. The pulsed sweep will start at

10 mA, end at 50 mA, and return to a 0 mA bias level

between pulses. Each pulsed step will be on for 1 ms,

and then at the bias level for 100 ms. The voltage

limit will be 1 V during the entire pulsed sweep. The

pulse train will be comprised of 20 pulsed steps and

the pulse train will be assigned a tag index of 3.

Also see

InitiatePulseTest() (on page 7-97)

ConfigPulseIMeasureVSweepLog()

This KIPulse factory script (on page 5-23) function configures a voltage pulse train with a current measurement at

each point.

Type TSP-Link accessible

Affected by Where saved Default value

Function No
