Model 2651A High Power System SourceMeter® Instrument Reference Manual Section 7: Command reference
2651A-901-01 Rev. A / March 2011 7-5
Command name and standard parameters summary
The beginning of each instrument command description starts with the command name, followed by a
table with relevant information for each command. Definitions for the numbered items in the figure
below are listed following the figure.

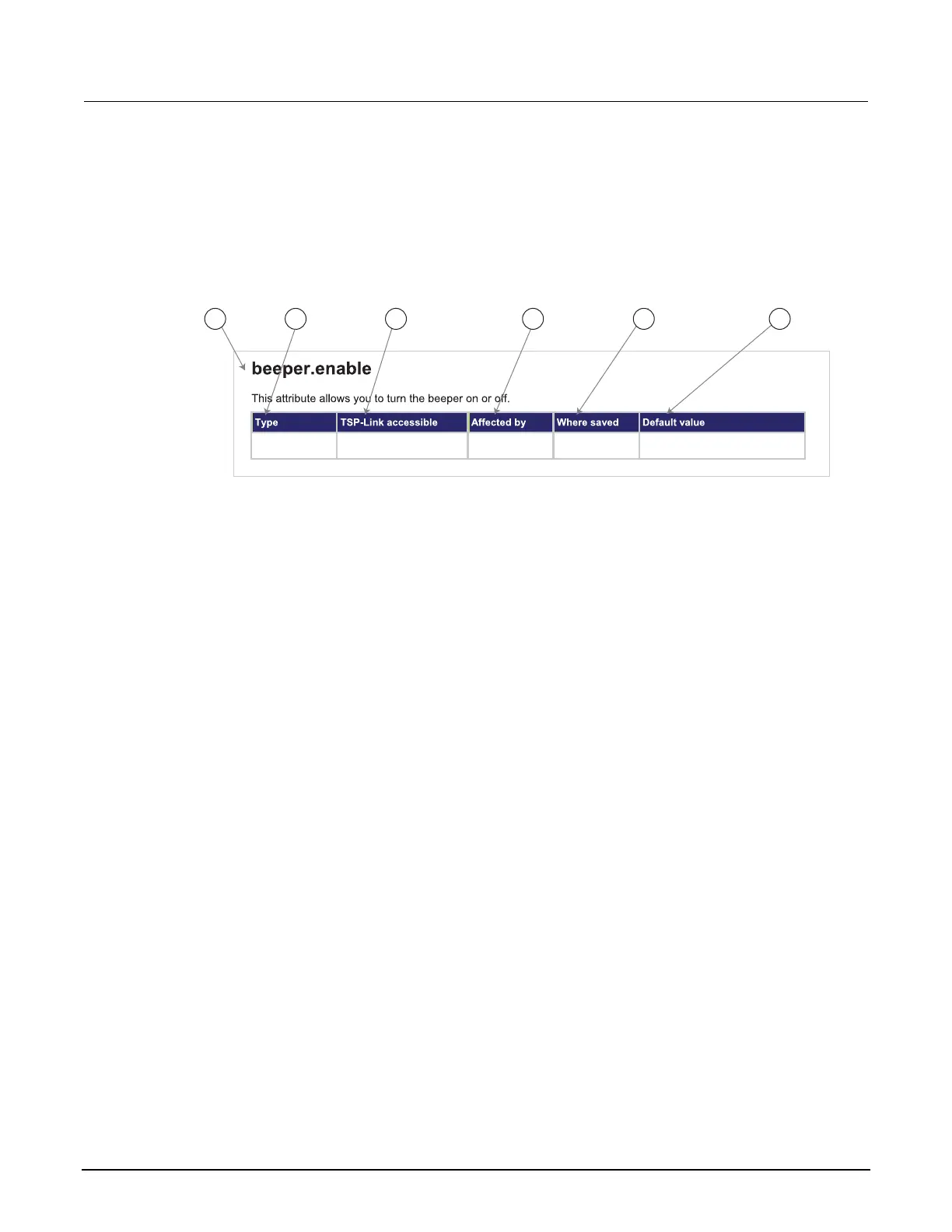

Figure 93: Command name and standard parameters summary
1
23
4
5 6
Saved setupsRecall beeper.ONYes
Attribute (RW)
1. Instrument command name. Signals the beginning of the command description and is followed
by a brief description of what the command does.
2. Type of command. Options are:
• Function. Function-based commands control actions or activities, but are not always directly related to
instrument operation. Function names are always followed by a set of parentheses, for example,
digio.writeport(15). If the function does not need a parameter, the parentheses set remains
empty., for example, exit().
• Attribute (R), (RW), or (W). Attribute-based commands set or read the characteristics of an instrument
feature or operation by defining a value. For example, a characteristic of a TSP-enabled instrument is
the model number (localnode.model); another characteristic is the number of errors in the error
queue (errorqueue.count). For many attributes, the defined value is a number or predefined
constant. Attributes can be read-only (R), read-write (RW), or write-only (W), and can be used as a
parameter of a function or assigned to another variable.
3. TSP-Link accessible. Yes or No; indicates whether or not the command can accessed through a
TSP-Link network.
4. Affected by. Commands or actions that have a direct effect on the instrument control command.
• LAN restore defaults
• Recall
• Reset: This command has varied effects depending on how it is used. Reset actions include:
- Digital I/O trigger reset - Status reset
- Instrument reset - Trigger blender reset
- LAN reset - Trigger timer reset
- LAN restore defaults - TSP-Link trigger reset
- Local node reset - SMU calibration lock
- SMU reset - SMU calibration restore
To Next Page
