Model 2651A High Power System SourceMeter® Instrument Reference Manual Section 2: General operation
2651A-901-01 Rev. A / March 2011 2-15

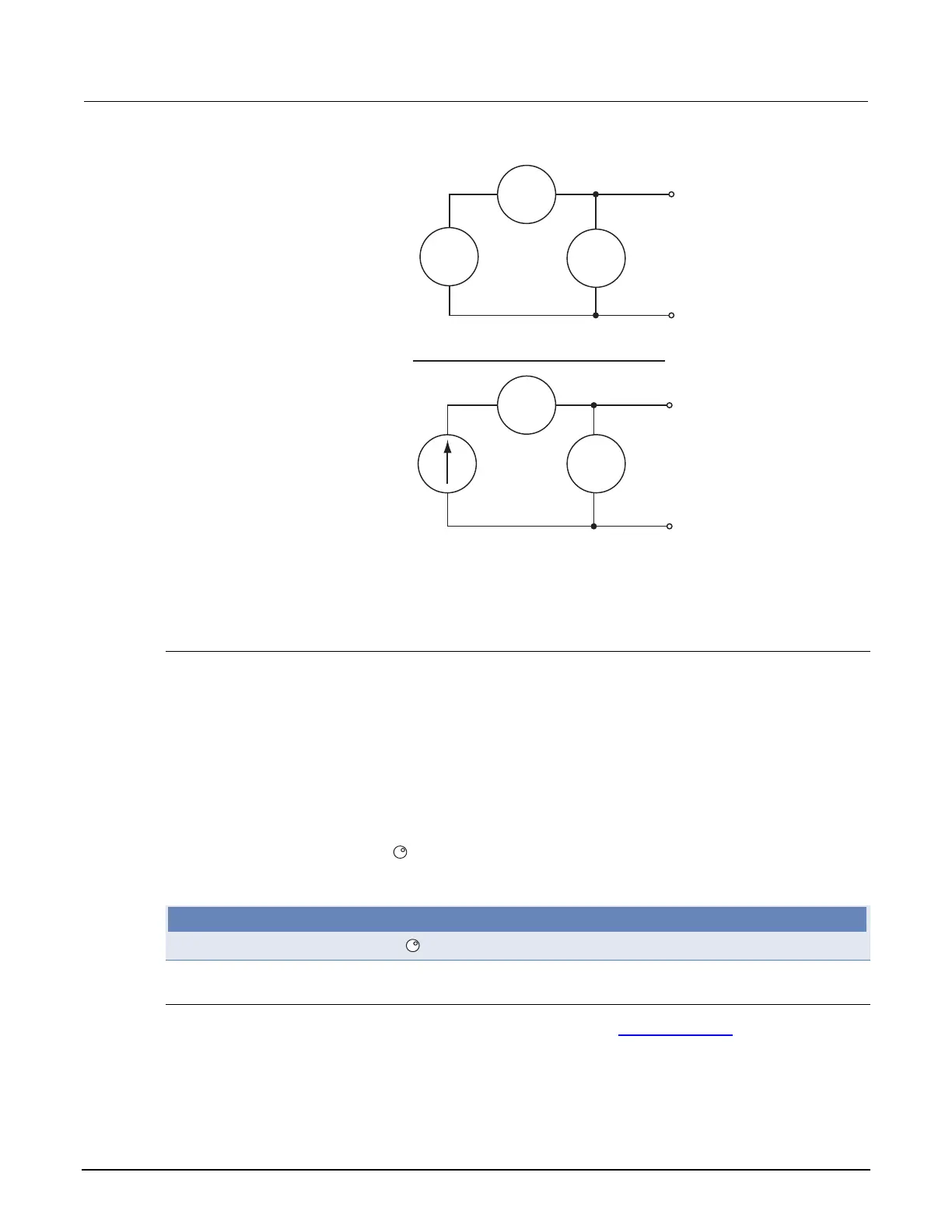

Figure 4: Fundamental source-measure configuration
B: Source I
A: Source V
V-mete
I-source
I-meter
A
I-meter
A
V
V-mete
V
V-source
+
-
Menu overview
Menu navigation
To navigate through the menus and submenus, the Model 2651A must not be in edit mode (the EDIT
indicator is not illuminated).
Selecting menu items
To navigate the Main and Configuration menus, use the editing keys as follows:
• Use the CURSOR arrow keys to select a menu or an option.
• Press the ENTER key to select an item or menu option.
• Rotate the navigation wheel (clockwise or counter-clockwise) to select a value.
• Use the EXIT (LOCAL) key to cancel changes or to back out of the menu structure.
NOTE
You can use the navigation wheel to select items from the menu or submenus.
Menu trees
Many facets of operation are configured through menus. Refer to Menu navigation (on page 2-15) for
more details about using menus.
