Keithley 2651A Reference Manual

Appendix C: LAN concepts and settings Model 2651A High Power System SourceMeter® Instrument Reference Manual
C-12 2651A-901-01 Rev. A / March 2011
Viewing LAN status messages
To view the LAN status messages:
1. From the front panel, press MENU key, and then select LAN > STATUS > CONFIG/FAULT.
2. Press the ENTER key.

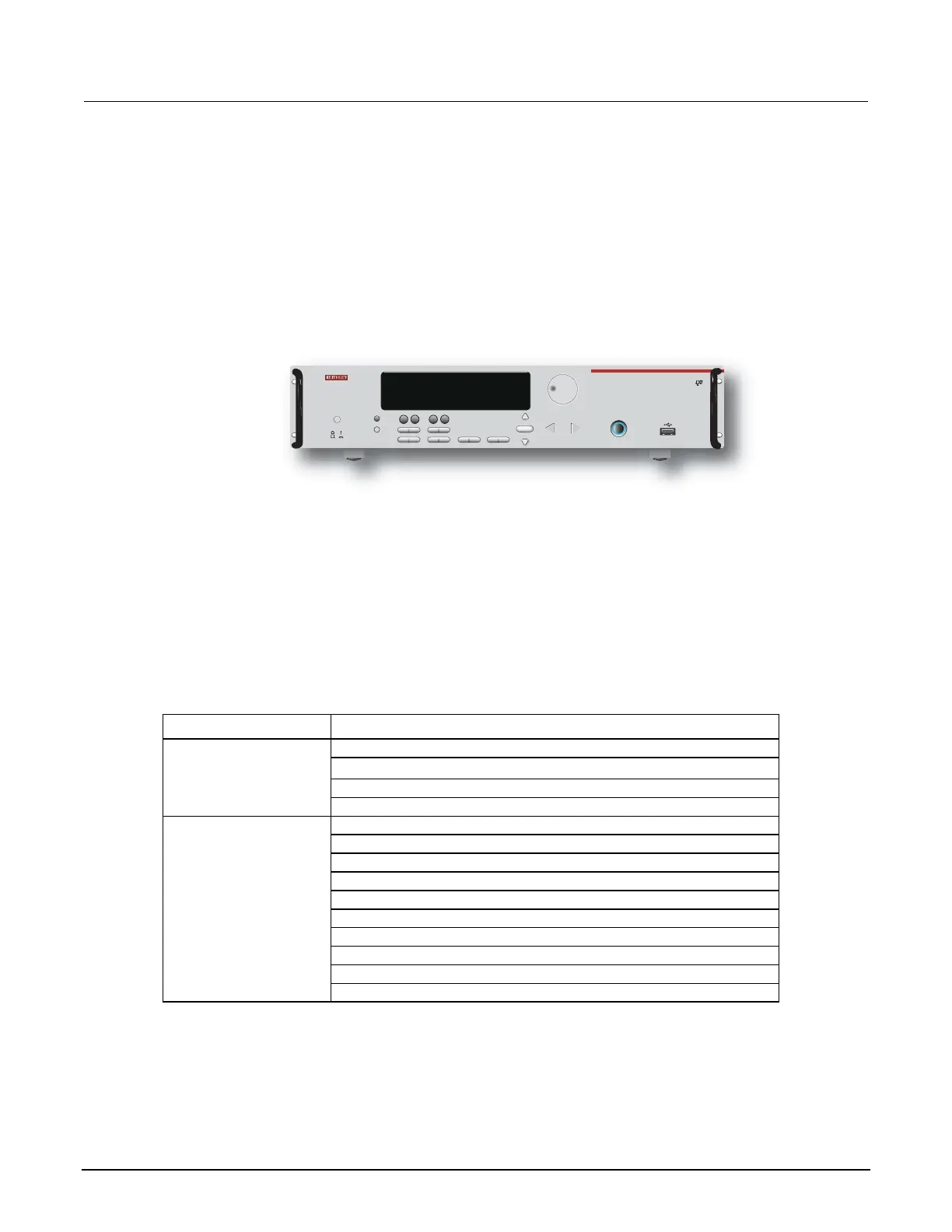

Figure 123: LAN CONFIG/FAULT (Series 2650)
CURSOR
SRC MEAS LIMIT MODE
POWER
AUTO
OUTPUT ON/OFF
2651A SYSTEM SourceMeter
®
12 3
4
DISPLAY
CONFIG
56
78 9
0
+/-
0000
SPEED
DIGITS
FILTER
REL
RECALL
STORE
MENU
TRIG
ENTER
LOCAL
EXIT
RUN
LOAD
CONFIG
NF
P
U
S
H
T
O
E
D
I
T
/
E
N
T
E
R
P
U
S
H
T
O
E
D
I
T
/
E
N
T
E
R
Lan Configuration
AUTO ARM
Closed
There are two types of LAN status messages:
• LAN fault messages: Communicates issues related to physical connectivity.
• LAN configuration messages: Communicates issues or events related to configuration.
The following table displays possible fault and configuration messages.
LAN CONFIG/FAULT messages
LAN message type Possible messages
LAN fault Could not acquire IP address
Duplicate IP address detected
DHCP lease lost
Lan Cable Disconnected.
LAN configuration Starting DHCP Configuration.
DHCP Server Not Found.
DHCP configuration started on xxx.xxx.xxx.xxx
Searching for DNS server(s).
Starting DLLA Configuration.
DLLA Failed.
DLLA configuration started on xxx.xxx.xxx.xxx
Starting Manual Configuration.
Manual configuration started on xxx.xxx.xxx.xxx
