Section 7: Command reference Model 2651A High Power System SourceMeter® Instrument Reference Manual

7-148 2651A-901-01 Rev. A / March 2011

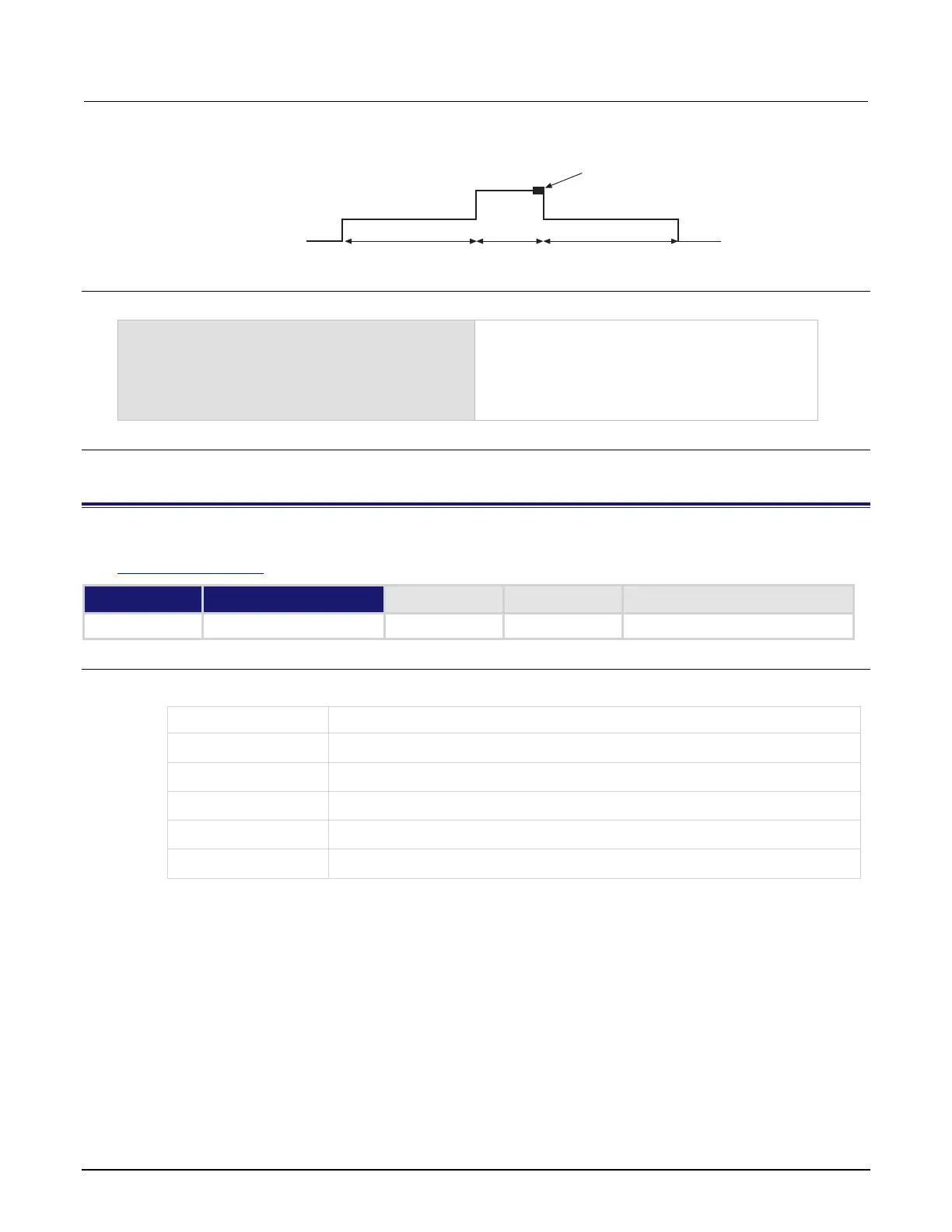

Figure 104: PulseIMeasureV

level

bias

ton

bias

tofftoff

Voltage measurement

Example

PulseIMeasureV(smua, 0.001, 1.0,

20E-3, 40E-3, 10)

SMU A will output 1 mA and dwell for 40 ms, output

1 A and dwell for 20 ms. The voltage measurement

occurs during the 20 ms dwell periods. After the

measurement, the output will return to 1 mA and

dwell for 40 ms. This pulse-measure process will

repeat nine more times.

Also see

None

PulseVMeasureI()

This KIPulse factory script (on page 5-23) function performs a specified number of pulse V, measure I cycles.

Type TSP-Link accessible

Affected by Where saved Default value

Function No

Usage

PulseVMeasureI(smu, bias, level, ton, toff, points)

smu

System SourceMeter

instrument channel (set to smua)

bias

Bias level in volts

level

Pulse level in volts

ton

Pulse on time in seconds

toff

Pulse off time in seconds

points

Number of pulse-measure cycles
