Keysight N9010A EXA Service Guide 425
Replaceable Parts
Hardware

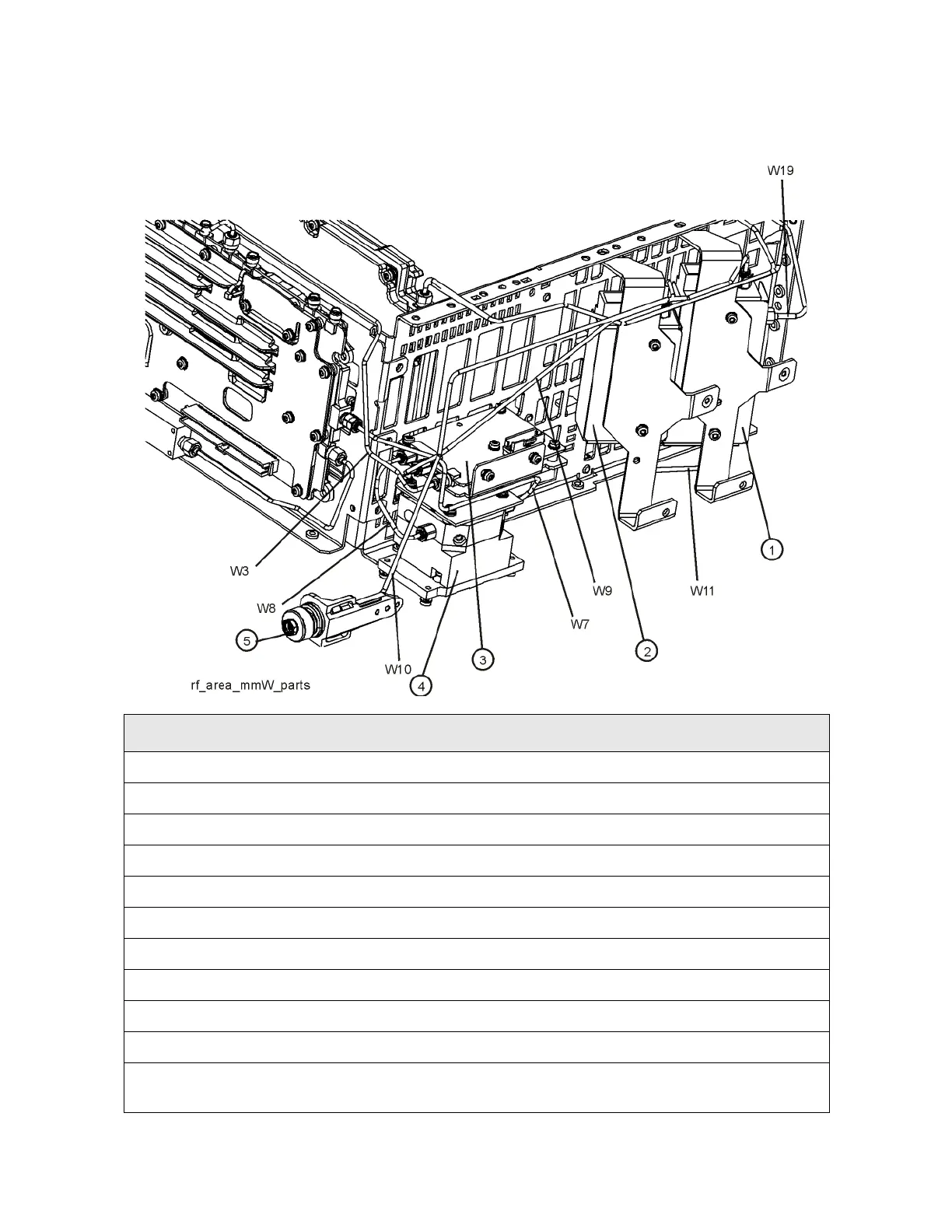

Figure 14-10 RF Area - Option 532, 544
Item Description Keysight Part Number
1 A9 RF Attenuator A 0 to 10 dB (Options 532, 544) 33326-60013
2 A10 RF Attenuator B 0 to 60 dB (Options 532, 544) 33325-60020
3 A11 Low Band Switch Assembly N9020-60051
4 A12 YTF Preselector 5087-7383
W3 Cable Assembly, A11J2 to A13J2 (Semi Rigid) N9020-20131
W7 Cable Assembly, A12 Output to A13J9 (Semi Rigid) N9010-20006
W8 Cable Assembly, A11J3 to A12 Input (Semi Rigid) N9010-20005
W9 Cable Assembly, A10 Output to A11J1 (Semi Rigid) N9010-20004
W10 Cable Assembly, J1 to A9 Input (Semi Rigid) N9020-20133
W11 Cable Assembly, A9 Output to A10 Input (Semi Rigid)) N9010-20002
W19 Cable Assembly, A16J701 to A9 Cal Signal Input/Port 2
(Semi Rigid)
Refer to Table 14-1
