426 Keysight N9010A EXA Service Guide
Replaceable Parts
Hardware

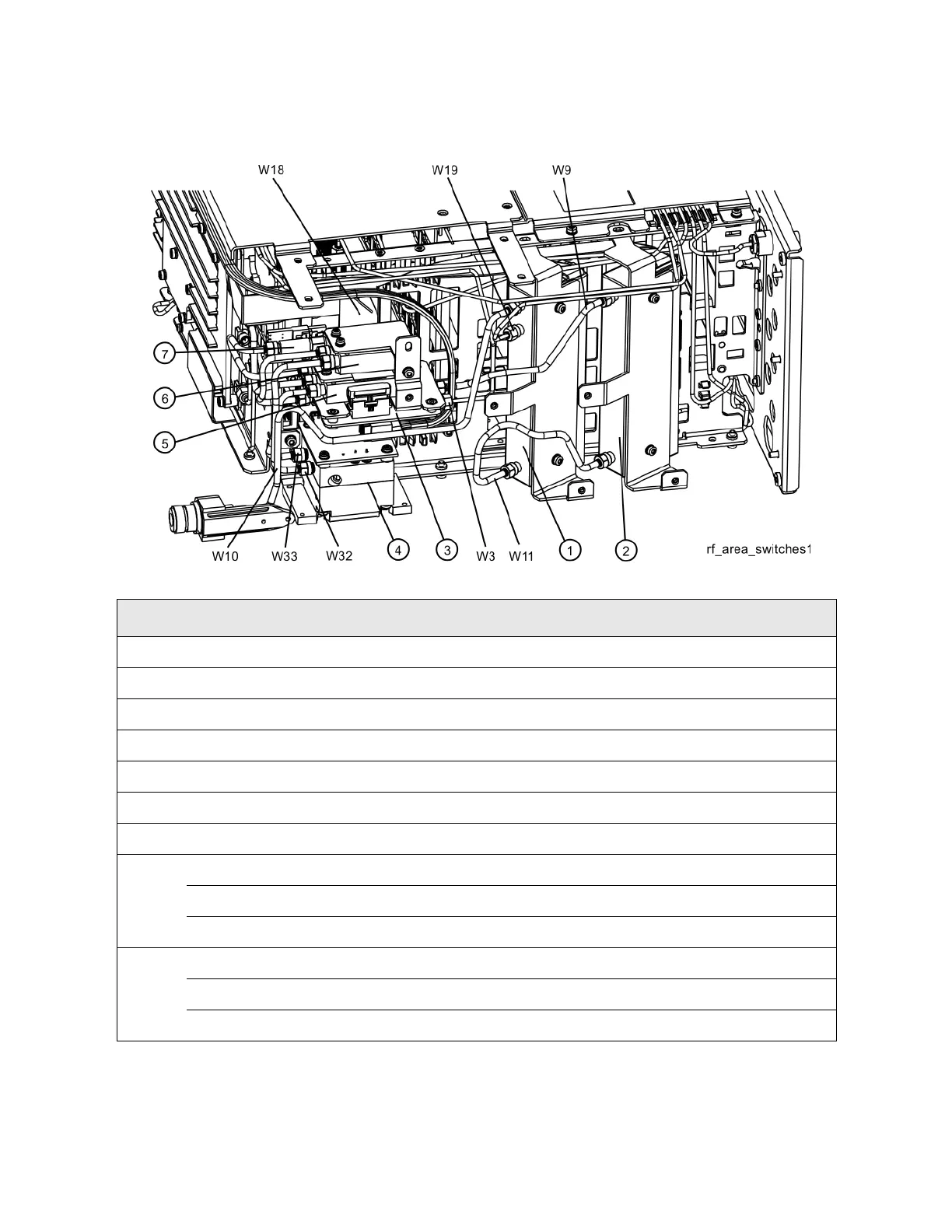

Figure 14-11 RF Area - Options B40, MPB, or DP2
Item Description Keysight Part Number
1 A9 RF Attenuator A (0 to 4 dB) 33360-60008
2 A10 RF Attenuator B (0 to 66 dB) 33321-60083
3 A11 Low Band Switch Assembly E4410-60121
4 A12 YTF Preselector (except Option 503) 5087-7382
5SW1 Coaxial Switch (Options B40, MPB, or DP2) N1810-60069
6SW2 Coaxial Switch (Options B40, MPB, or DP2) N1810-60069
7 AT1 Fixed Attenuator, 6 dB 08493-60026
W3 Cable Assembly, A11J2 to A13J2 (Semi Rigid)
Serial number < MY/SG50510001, Option 503, 507, 513, 526 E4410-20162
Serial number ≥ MY/SG50510001 , Option 503, 507, 513, 526 N9020-20101
W9 Cable Assembly, A10 Output to A11J1 (Semi Rigid)
Serial number < MY/SG50510001, Option 503, 507, 513, 526 E4410-20159
Serial number ≥ MY/SG50510001, Option 503, 507, 513, 526 N9020-20153
