Keysight N9010A EXA Service Guide 435
Replaceable Parts
Hardware

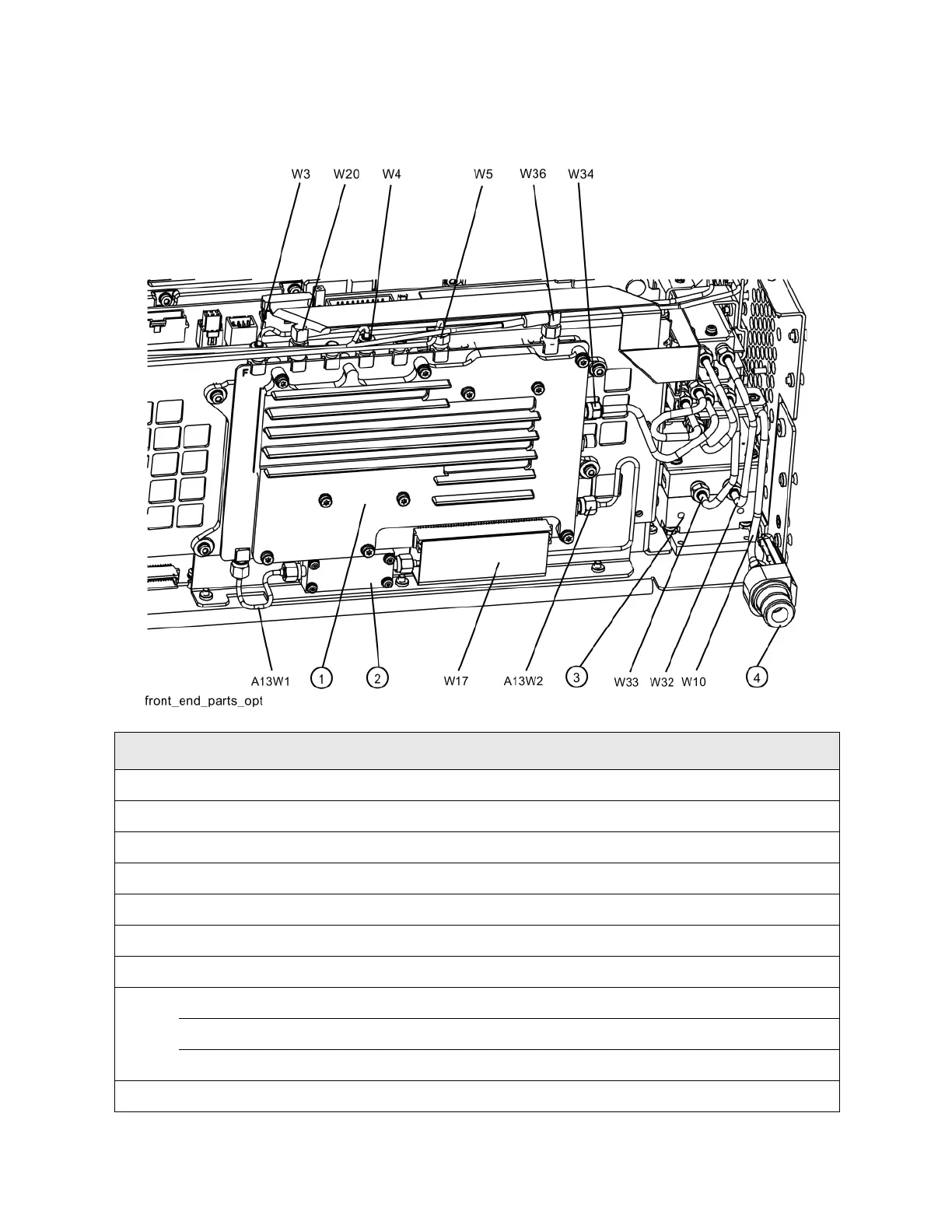

Figure 14-17 Front End Parts - Options MPB, B40, DP2, CR3, or CRP
Item Description Keysight Part Number
1 A13 RF Front End Assembly Refer to Table 14-1
2 A13A1 Bandpass Filter Refer to Table 14-1
A13W1 Cable Assembly, A13J10 to A13A1 Input (Semi Rigid) Refer to Table 14-1
A13W2 Cable Assembly, A13J11 from A13A1 Output (Semi Rigid) Refer to Table 14-1
3 A12 YTF Preselector (except Option 503) 5087-7382
4 J1 Type-N (f) RF Input Connector Assembly (Option 503, 507, 513, 526) 5002-0702
5 A11 Low Band Switch Assembly E4410-60121
W3 Cable Assembly, A11J2 to A13J2 (Semi Rigid)
Serial number < MY/SG50510001, Option 503, 507, 513, 526 E4410-20162
Serial number ≥ MY/SG50510001 , Option 503, 507, 513, 526 N9020-20101
W4 Cable Assembly, A14J740 to A13J4 (Semi Rigid) N9020-20156
