442 Keysight N9010A EXA Service Guide
Replaceable Parts
Hardware

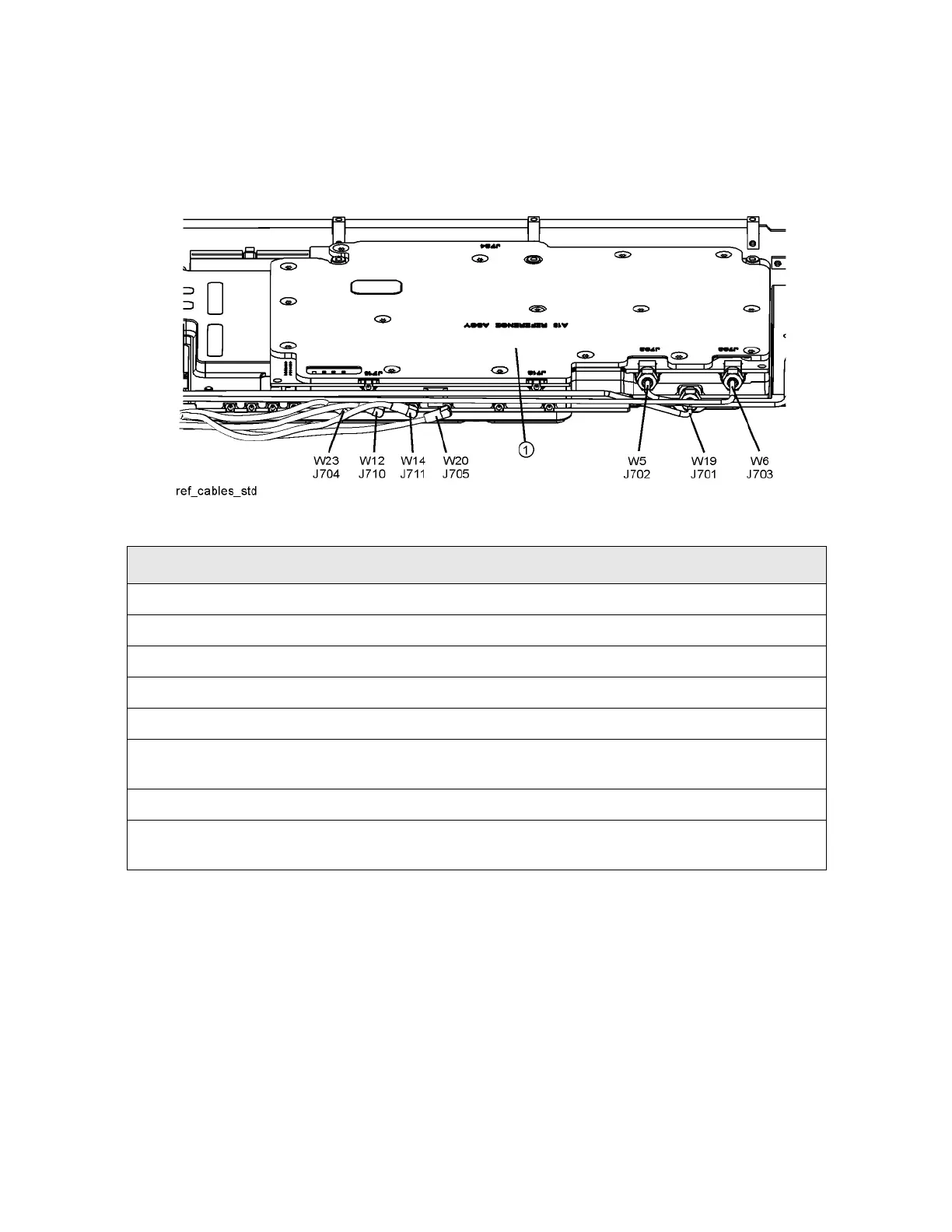

Figure 14-23 Reference Board Cables -
without Options B40, MPB, DP2
Serial Number ≥ MY/SG/US56480000
Item Description Keysight Part Number
1 A16 Reference Assembly N9020-60200
W5 Cable Assembly, A16J702 to A13J1 (Semi Rigid) N9020-20155
W6 Cable Assembly, A16J703 to A14J200 (Semi Rigid) N9020-20154
W12 Cable Assembly, A16J710 to A3J14 (Flexible Coax) 8121-1401
W14 Cable Assembly, A16J711 to A2J300 (Flexible Coax) 8121-1401
W19 Cable Assembly, A16J701 to A9 Cal Signal Input/Port 2
(Semi Rigid)
Refer to Table 14-1
W20 Cable Assembly, A13J6 to A16J705 (Flexible Coax) 8121-1400
W23 Cable Assembly, Ext. Reference Cable (rear frame) to
A16J704 (Flexible Coax)
8121-1402
To Next Page
