Korg PA1X User Manual

370
Effects
Mono – Mono Chain

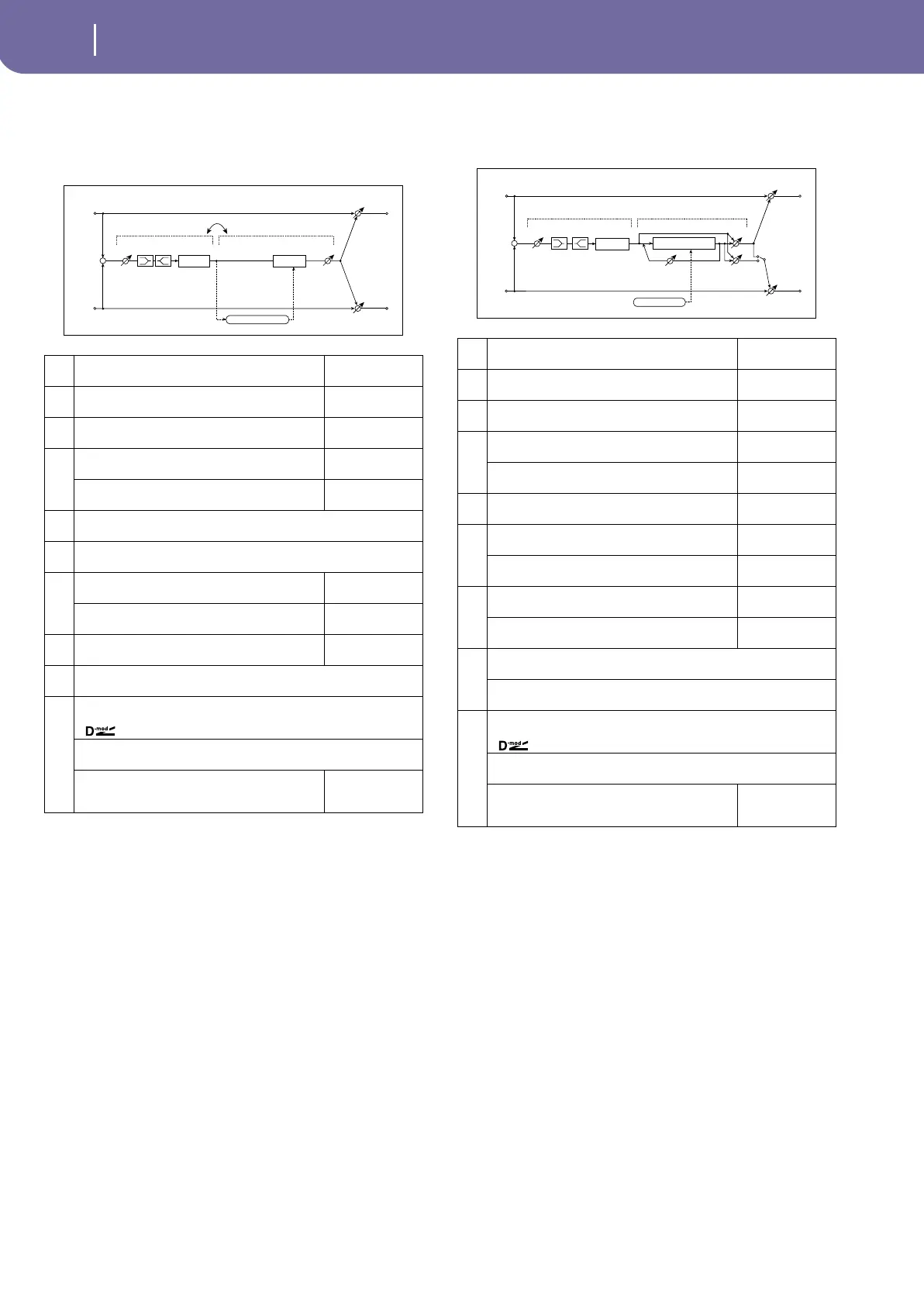

075: Exciter - Limiter
(Exciter – Limiter)
This effect combines a mono-type exciter and a limiter. You can
change the order of the effect connection.
076: Exciter - Cho/Flng
(Exciter – Chorus/Flanger)
This effect combines a mono-type limiter and a chorus/flanger.
a
[X] Exciter Blend
Sets the intensity (depth) of the Exciter effect
–100...+100
☞ Fx:011
b
[X] Emphatic Point
Sets the frequency range to be emphasized
0...70
☞ Fx:011
c
[X] EQ Trim
Table , “Sets the EQ input level,” on page 330
0...100
d
[X] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 330
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 330
–15...+15dB
e
[L] Ratio 1.0:1...50.0:1, Inf:1
Sets the signal compression ratio
☞ Fx:003
f
[L] Threshold [dB] –40...0dB
Sets the level above which the compressor is applied
☞ Fx:003
g
[L] Attack
Sets the attack time
1...100
☞ Fx:003
Release
Sets the release time
1...100
☞ Fx:003
h
[L] Gain Adjust [dB]
Sets the limiter output gain
–Inf, –38...+24dB
☞ Fx:003
i
Routin XCT→LMT, LMT→XCT
Switches the order of the exciter and limiter connection
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
LEQ HEQ
EQ Trim
Exciter
Exciter
Limiter
Limiter
Gain Adjust
Envelope - Control
a
[X] Exciter Blend
Sets the intensity (depth) of the Exciter effect
–100...+100
☞ Fx:011
b
[X] Emphatic Point
Sets the frequency range to be emphasized
0...70
☞ Fx:011
c
[X] EQ Trim
Table , “Sets the EQ input level,” on page 330
0...100
d
[X] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 330
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 330
–15...+15dB
e
[F] Delay Time [msec]
Sets the delay time
0.0...50.0msec
f
[F] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
g
[F] Depth
Sets the depth of LFO modulation
0...100
Feedback
Sets the feedback amount
–100...+100
☞ Fx:020
h
[F] Cho/Flng Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the effect balance of the chorus/flanger
☞ Fx:010, 020
Output Mode Normal, Wet Invert
Selects the output mode for the chorus/flanger
☞ Fx:060
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Chorus/Flanger
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng Wet / Dry
Normal
Wet Invert
Output Mode
–
+
LEQ HEQ
EQ Trim
Exciter
Exciter
