Installing the Video Interface (VIF3)
Connections and setup
Connections and setup

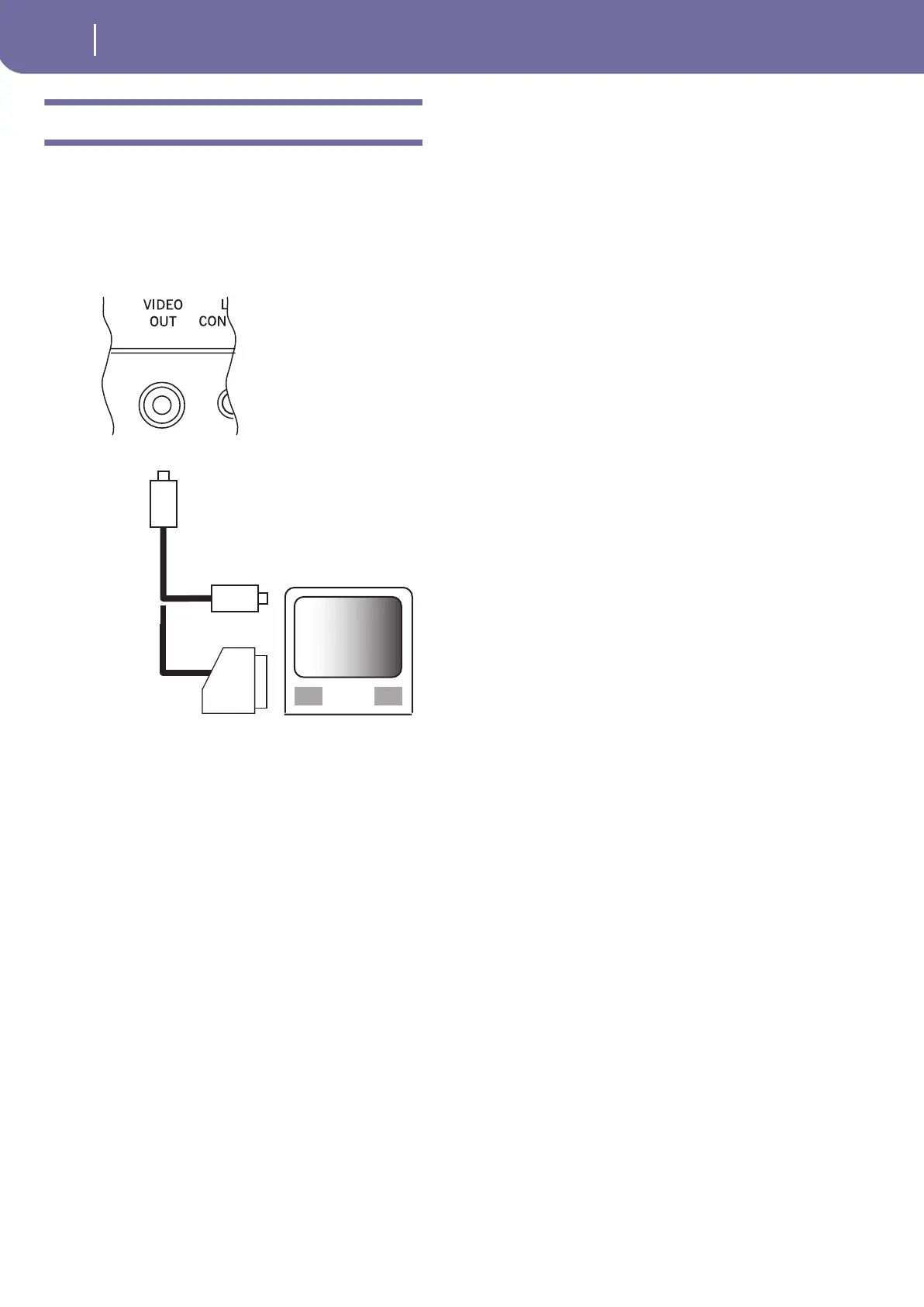

1. Connect the instrument’s video output to the video input
of the television set. Depending on the type of television
set, you can use a cable of the type “RCA-to-RCA” (if the
television set is equipped with a Video Composite input),
or “RCA-to-SCART” (if the television set is equipped with
a SCART connector). You can buy the needed cables at a
store that sells television equipment.
2. Turn the instrument on, and press the GLOBAL button to
gain access to the Global edit mode. Go to the “Video Inter-
face: Video Out” page, and select the video standard (PAL
or NTSC) depending to the installed video board (VIF3-
PAL or VIF3-NTSC).
3. Select the “Write Global-Global Setup” command from the
page menu to save the settings in memory. The Write Glo-
bal-Global Setup dialog box will appear. Press OK to con-
firm.
4. Turn the television set on, and tune it on the AV1 or AV2
input.
5. In the same page of the Global, use the Colors parameter to
choose the preferred set of colors for the lyrics and the
background.
RCA
RCA
SCART
