88
Style Play operating mode
Effects: FX A…D
Effects: FX A…D

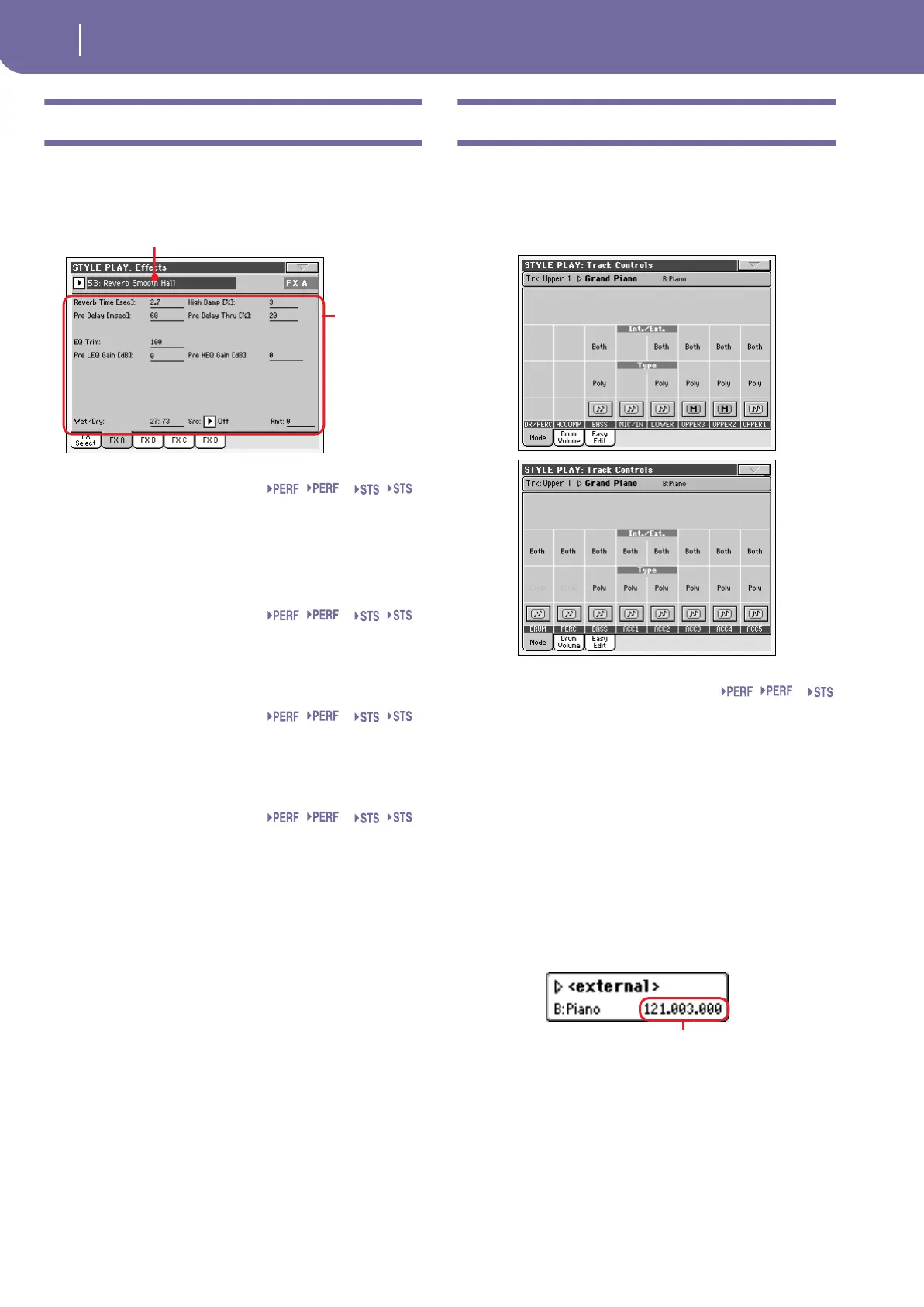

These pages contain the editing parameters for the four effect
processors. Here is an example of the FX A page, with the Reverb
Smooth Hall effect assigned.
Selected effect
Select one of the available effects from this pop-up menu. This is
equivalent to the “FX A…D” parameters found in the “Effects:
FX Select” page (see above).
Note: Effects can be different for each of the four editing pages.
FX parameters
Parameters may be different, depending on the selected effect.
See “Effects” on page 329 for a list of available parameters for
each effect type.
Wet/Dry
Mix between the effected (Wet) and direct (uneffected, Dry) sig-
nal. This is the same as the “Wet/Dry” parameters found in the
“Effects: FX Select” page (see above).
Src (Source)
Modulation source. To select the track generating this message,
see the “Mod.Track (Modulating Track)” parameters found in
the “Effects: FX Select” page (see above). For a list of modulation
source, see the “Effects” chapter.
Track Controls: Mode
This page lets you connect each track to the internal sound gen-
erator and to external MIDI devices. This is very useful to let a
Style track drive an external expander, or play a digital piano
with one of Pa1X’s Keyboard tracks. In addition, here you can set
the polyphony mode for each track.
Int./Ext. (Internal/External)
Internal The track plays the sounds generated by the
internal sound engine. It does not play an exter-
nal instrument connected to the MIDI OUT.
External The track plays an external instrument connected
to the MIDI OUT. The connected device must
receive on the MIDI channel associated with this
track on the Pa1X (see “MIDI: MIDI Out Chan-
nels” on page 238).
A track set to this status does not play the internal
sounds, therefore saving polyphony.
Instead of the assigned Sound name, the <exter-
nal> remark is shown on a track’s area in the
Main page:
If the “Show Program Change name” is checked
(see page 234), a strings of transmitted Control
Change and Program Change data is shown next
to the <external> remark. This will let you know
what the track is transmitting to the MIDI OUT.
In the following example, CC#0 is the Control
Change 0 (Bank Select MSB), CC#32 is the Con-
Selected effect
FX param-
eters
Sty
SB
Sty
SB
Sty
SB
Sty
SB
Sty
Control Change/Program Change area
