239
Global edit mode
MIDI: Filters
Reference

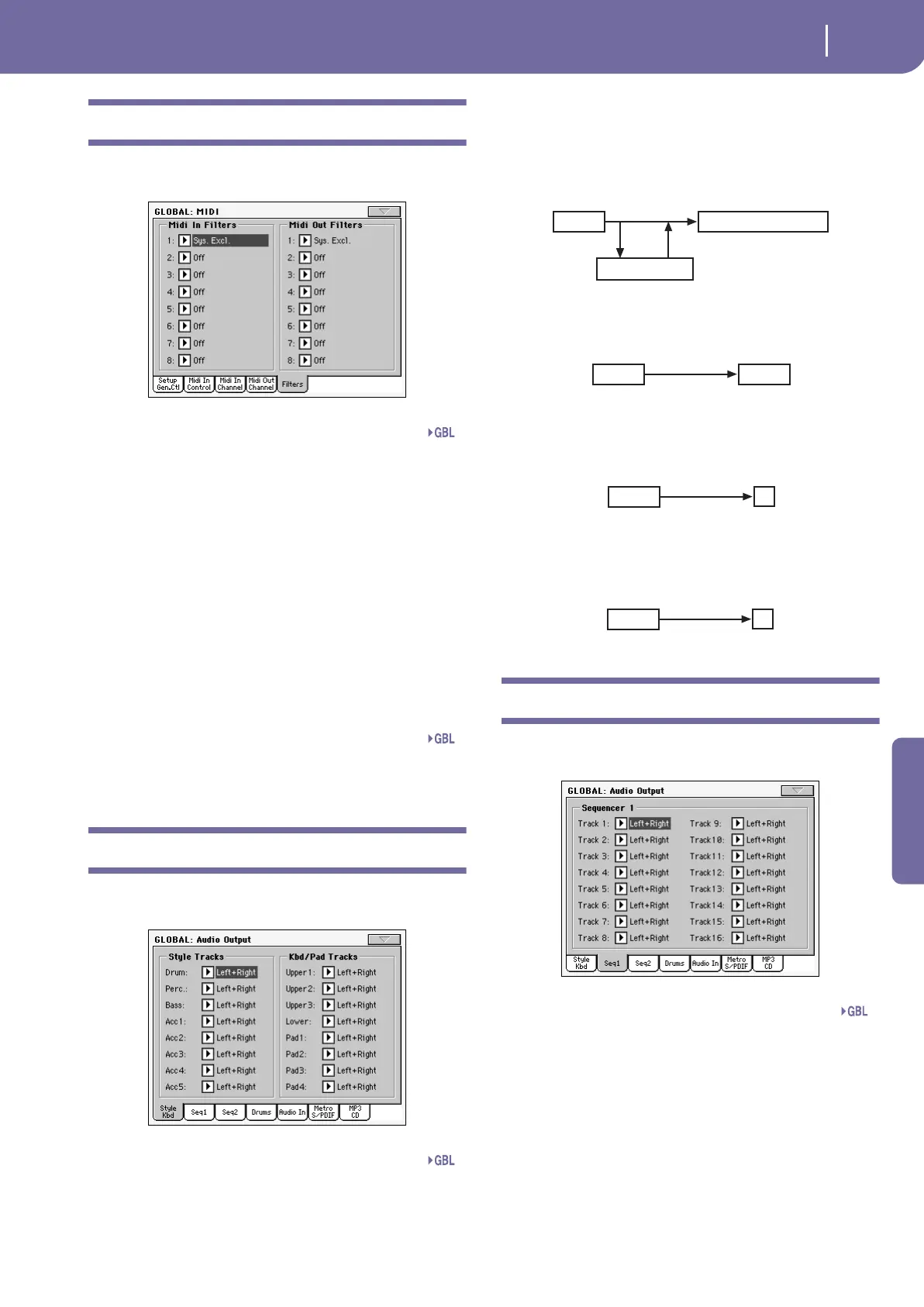

MIDI: Filters
Use this page to set up to 8 filters for the MIDI data received or
sent by the Pa1X.
Midi In Filters
Selected MIDI IN filters.
Off No filter.
Pitch Bend Pitch Bend.
MonoTouch Mono (or Channel) After Touch.
PolyTouch Poly After Touch.
PrgChange Program Change.
SysExcl System Exclusive.
All CC All Control Change messages.
0…127 Control Change message #0…127. See “MIDI
Data” on page 383 for a list of available Control
Change messages.
Midi Out Filters
Selected MIDI OUT filters. See above for information on each
filter type.
Audio Output: Sty/Kbd
This page lets you connect Style, Keyboard and Pad tracks to the
audio outputs.
Tracks
Use these parameters to assign an audio output (OUTPUT sec-
tion, on the back of the instrument) to each track.
Left + Right The selected track is connected to the Left &
Right outs, in stereo. The track is also sent to the
Internal FX processors (A and B for the Style
tracks, C and D for the Keyboard and Pad tracks).
You can set the volume using the MASTER VOL-
UME slider.
Out 1 + 2 The track is connected to the 1 & 2 sub-outs, in
stereo. It is not sent to the Internal FX processors.
The MASTER VOLUME slider has no effect on it.
Out 1 The selected track is connected to the sub-out 1.
It is mixed to mono. It is not sent to the Internal
FX processors. The MASTER VOLUME slider has
no effect on it.
Out 2 The selected track is connected to the sub-out 2.
It is mixed to mono. It is not sent to the Internal
FX processors. The MASTER VOLUME slider has
no effect on it.
Audio Output: Seq1
This page lets you connect Sequencer 1 tracks to the audio out-
puts. These setting are also applied to the Sequencer mode.
Tracks
Use these parameters to assign an audio output (OUTPUT sec-
tion, on the back of the instrument) to each track.
See “Audio Output: Sty/Kbd” on page 239 for more information.
Mid
Mid
Gbl
Track L/Mono & Right
Internal FX
Track 1 & 2
Gbl
