Installing the Video Interface (VIF3)
Installation on the Pa1X Pro
Installation on the Pa1X Pro

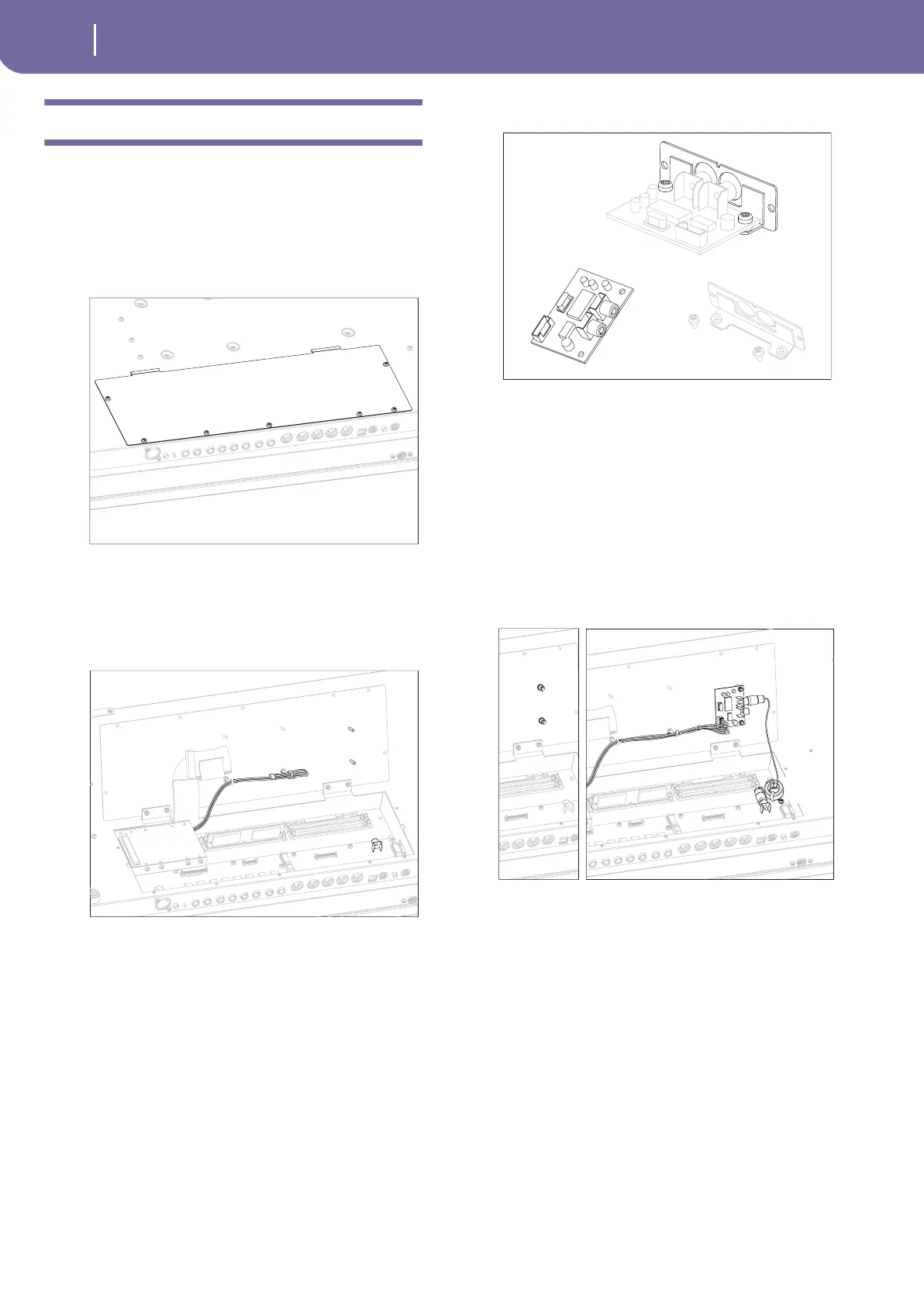

1. Turn the instrument upside down, and remove the seven
screws (d), to open the cover (c) and gain access to the
option compartment.
Note: Block any possible access to the inside of the instrument
during installation to prevent any items from falling inside. In
the event something does fall into the instrument, please
immediately contact your nearest Service Center.
2. As you face the option compartment opening, locate the
area reserved for the video interface, i.e., the one with the
two small vertical spacers and the cable (e), secured by two
clips. Unfasten the cable (e) from the clip (C), and rewire
the clip around the unfastened cable.
3. Examine the video interface (A) included with the kit. Note
how the IC board (f) is joined to the support (g) by means
of the two screws (b). Unscrew the two screws (b) to sepa-
rate them. You will not need the removed screws (b) and
support (g) for the installation on the Pa1X Pro, neverthe-
less we suggest to save them for any future use.
4. Insert the two plastic spacers (B) into the corresponding
screws on the option compartment cover, as shown in the
diagram. Secure the IC board (f) to the two spacers (B),
using the two self-locking nuts (G). Connect the terminal
lug of the cable (e) and the terminal lug without a ring (F)
to the corresponding connectors on the IC board. Unscrew
the screw (b) from the connector board in the option com-
partment, then re-insert it after securing to it the clip (C)
included with the accessory kit. Use the clip to lock the ring
of the free cable terminal lug (F). Connect this terminal to
the RCA connector on the connector board, as shown in
the diagram.
5. Close and secure the compartment cover by reversing the
procedure described in step 1.
c
d
d
d
d
d
d
d
C
e
b
A
f
b
g
b
b
e
G
G
B
B
f
F
b+C
