403
Installing the Video Interface (VIF3)
NTSC, PAL, SECAM
Appendix
You can install a Korg VIF3 Video Interface into your Pa1X or
Pa1X Pro. This interface will let you connect a video monitor or
video projector, to read lyrics on an external device. The card
can be installed by the user. Korg is not responsible for any
damage or injury caused by incorrect installation of this card
by unauthorized personnel.
NTSC, PAL, SECAM
The following instruction refer both to the VIF3-PAL and VIF3-
NTSC versions of the board. When connecting the VIF3-PAL to
a SECAM-compliant TV, the image will be shown in black and
white.
Precautions
• Installation of the card is done at the user’s own risk. Korg will
assume no responsibility for any damage or injury resulting
from its improper installation or use.
• Be sure to disconnect the instrument from the AC plug, before
opening it.
• To prevent your body’s static electricity from damaging the
board’s components, touch an unpainted metallic component
before proceeding with the installation.

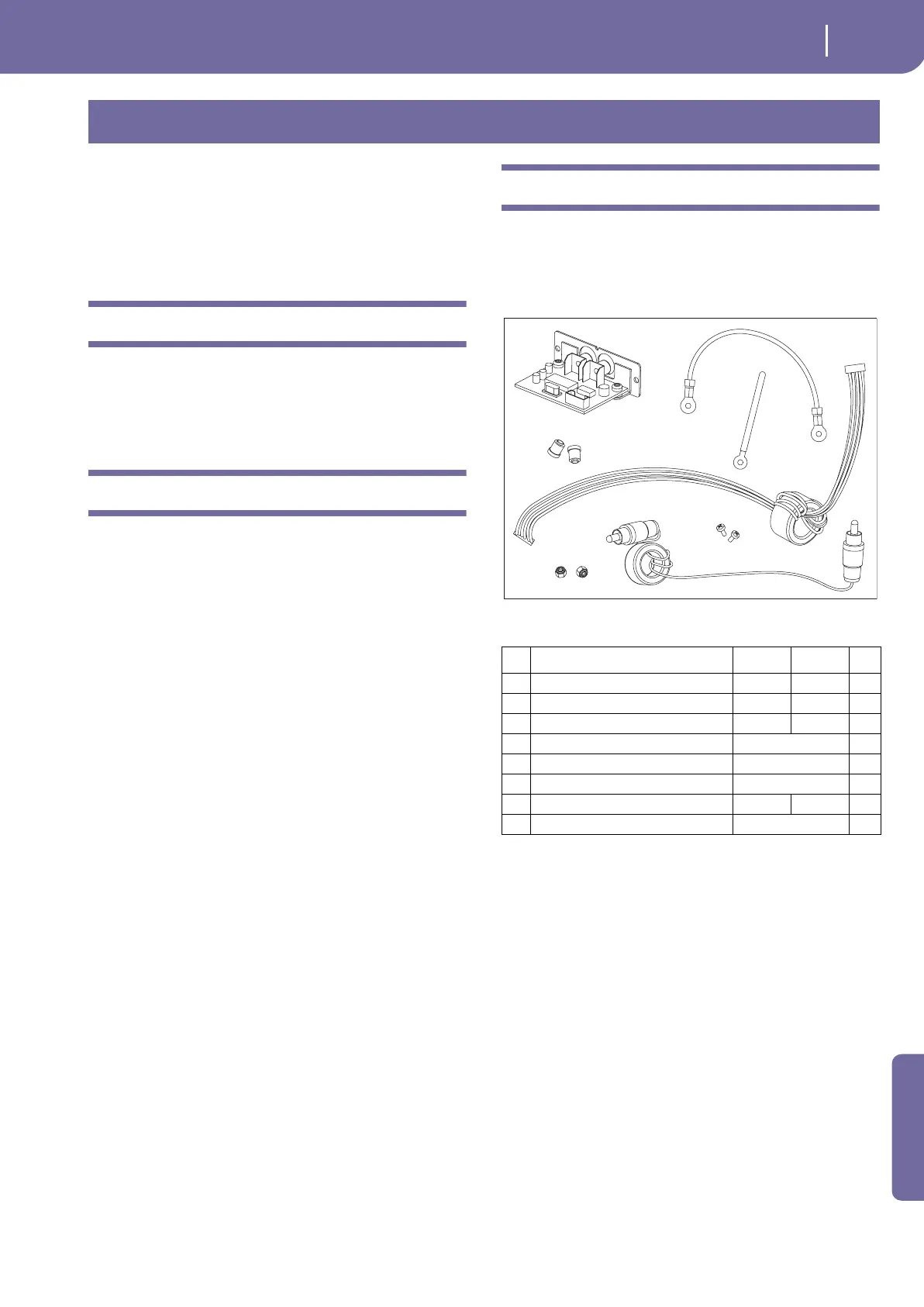

Part listing
Before beginning with the installation, please be sure all the fol-
lowing parts are included with your kit. Some parts are needed
only when installing the board on a particular model, but not on
others. In addition, you will need a cross-point screwdriver and
a pair of pliers (not supplied).
Note: The checkmark means the part is needed for the correspond-
ing instrument. Some components are only for the Pa80 and Pa60,
therefore are not needed on the Pa1X or Pa1X Pro.
Installing the Video Interface (VIF3)
Part name Pa1X Pro Pa1X
A Video card √√× 1
B Plastic spacers √× 2
C Cable holder clip √× 1
D Ground cable (not needed) × 1
E Video card cable (not needed) × 1
F Video cable (not needed) × 1
G Nuts √× 2
H 2.9 x 9.5 self-threading screw (not needed) × 2
A
B
C
D
E
F
G
H
