Korg PA1X User Manual

376
Effects

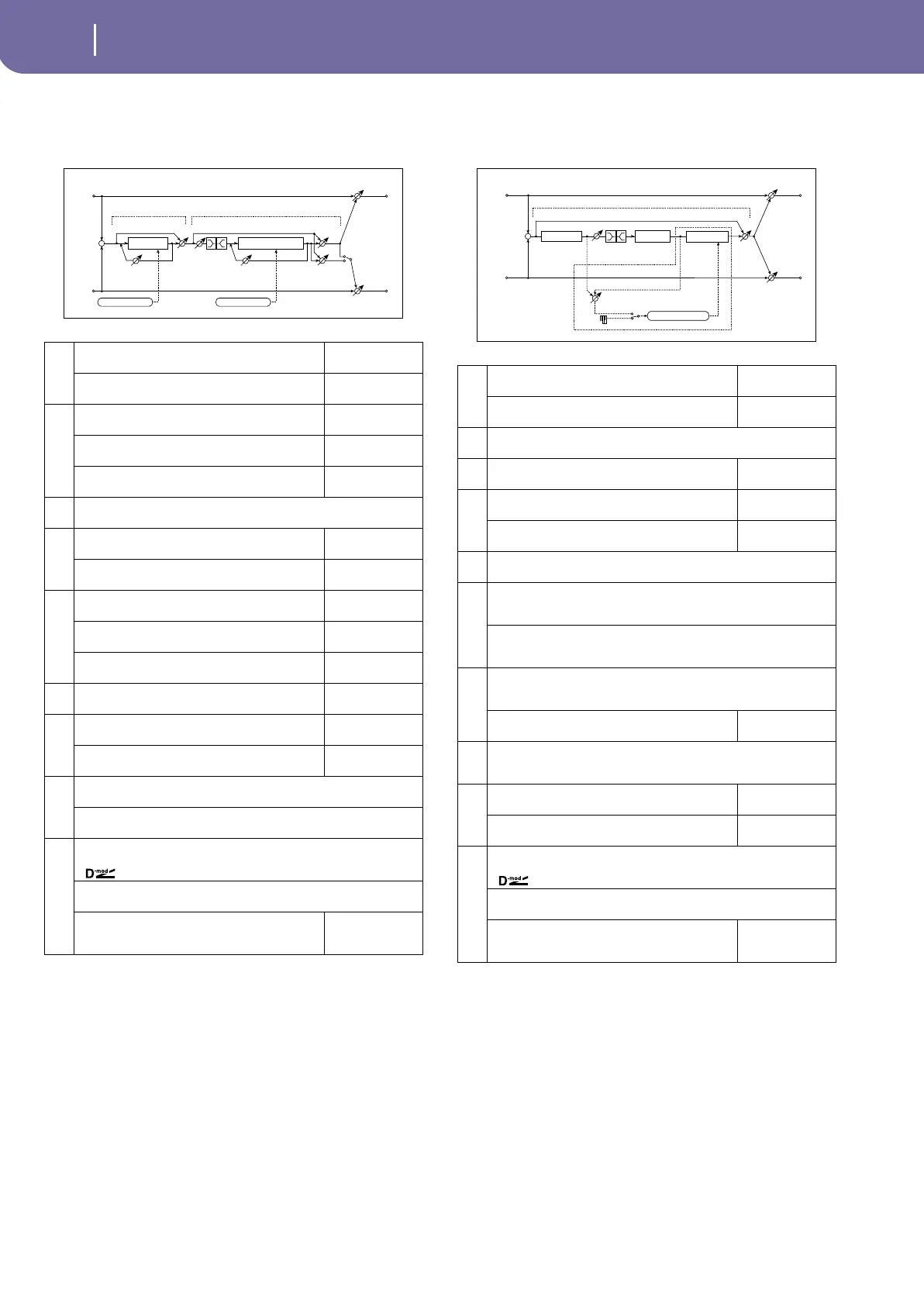

Mono – Mono Chain
088: Phaser - Cho/Flng
(Phaser – Chorus/Flanger)
This effect combines a mono-type phaser and a chorus/flanger.
089: Reverb - Gate
(Reverb – Gate)
This effect combines a mono-type reverb and a gate.
f: Envelope Select, f: Src, g: Input Reverb Mix, g:
Threshold
The “Envelope Select” parameter enables you to select whether
turning the gate on and off is triggered by the input signal level
or controlled directly by the modulation source. You can select
from Off to Gate2+Dmpr for the Src parameter to specify the
modulation source.
When “Envelope Select” is set to Input, the gate is controlled by
the level of signals that are the combination of the dry sound and
the reverb sound. When the signal level exceeds the threshold,
the gate opens and the reverb sound is output.
Normally, set “Input Reverb Mix” to Dry (the gate is controlled
only by the dry sound). If you wish to extend the gate time, set
the “Input Reverb Mix” value higher and adjust the “Threshold”
value.
a
[P] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
b
[P] Manual
Sets the frequency to which the effect is applied
0...100
Depth
Sets the depth of LFO modulation
0...100
Resonance
Sets the resonance amount
–100...+100
☞ Fx:023
c
[P] Phaser Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the phaser effect balance
☞ Fx:010, 023
d
[F] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
e
[F] Delay Time [msec]
Sets the delay time
0.0...50.0msec
Depth
Sets the depth of LFO modulation
0...100
Feedback
Sets the feedback amount
–100...+100
☞ Fx:020
f
[F] EQ Trim
Table , “Sets the EQ input level,” on page 330
0...100
g
[F] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 330
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 330
–15...+15dB
h
[F] Cho/Flng Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the effect balance of the chorus/flanger
☞ Fx:010, 020
Output Mode Normal, Wet Invert
Selects the output mode for the chorus/flanger
☞ Fx:060
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Chorus/Flanger
Cho/Flng
Wet / Dry
LEQ
HEQ
EQ
Trim
Chorus/Flanger
Feedback
Phaser
Phaser
Wet / Dry
Phaser
Resonance
LFO: Tri / Sine
LFO: Tri / Sine
Normal
Wet Invert
Output Mode
–
+
a
[R] Reverb Time [sec]
Sets the reverberation time
0.1...10.0sec
High Damp [%]
Sets the damping amount in the high range
0...100%
b
[R] Pre Delay [msec] 0...200msec
Sets the delay time of the reverb sound and gate control signal
c
[R] EQ Trim
Table , “Sets the EQ input level,” on page 330
0...100
d
[R] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 330
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 330
–15...+15dB
e
[R] Reverb Balance Dry, 1:99...99:1, Wet
Sets the reverb effect balance
f
[G] Envelope Select D-mod, Input
Switches between modulation source control and input signal control
☞
Src Off...Gate2+Dmpr
Selects the modulation source that controls the gate when Envelope Select
is set to D-mod
☞
g
[G] Input Reverb Mix Dry, 1:99...99:1, Wet
Sets the balance between the dry and reverb sounds of the gate control sig-
nal.
☞
Threshold
Sets the gate threshold level
0...100
☞
h
[G] Polarity +, –
Switches between non-invert and invert of the gate on/off state
☞ Fx:005
i
[G] Attack
Sets the attack time
1...100
☞ Fx:005
Release
Sets the release time
1...100
☞ Fx:005
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Reverb
Balance
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
LEQ
HEQ
EQ Trim
Reverb
Pre Delay
Envelope - Control
D-mod
Input
Envelope Select
Gate
Input Reverb Mix
Reverb
Gate
Gate+Dmpr
