Slope elements

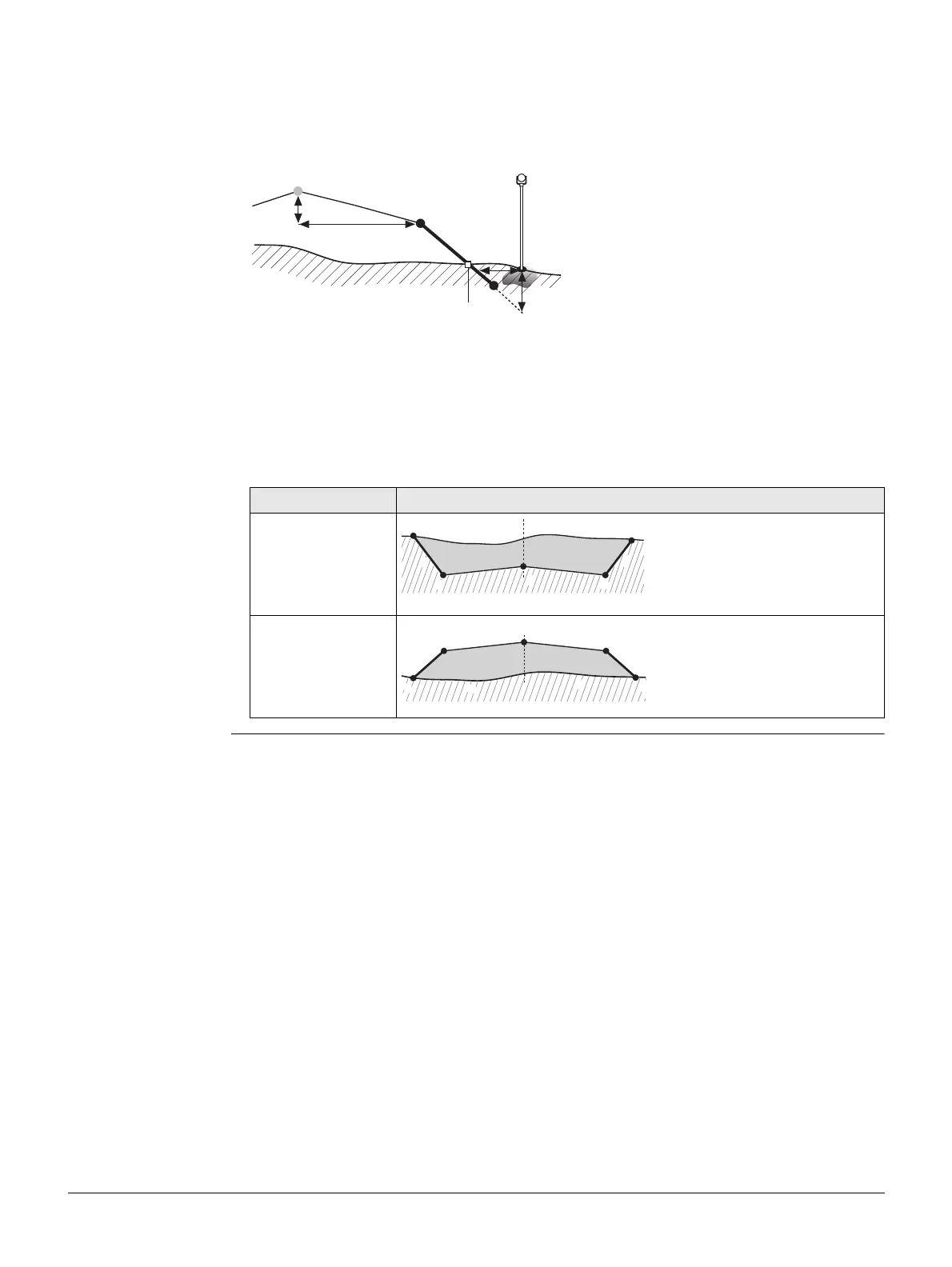

Explanation of the slope elements:
a) Horizontal alignment at a defined chainage.
b) Hinge point, is defined by entered offset left/right and height difference.
c) Slope = ratio.
d) Catch point, or daylight point, indicates the point of intersection between the
slope and the natural surface. Both the hinge point and the catch point lie on the
slope.
e) Natural surface, is the undisturbed surface before project construction.
P1 Measured point
a Horizontal alignment
b Hinge point
cSlope
dCatch point
e Natural surface
f Defined offset
g Defined height difference
h Cut situation for defined slope
i  Offset to catch point
Cut / Fill Description
Cut situation a) Horizontal alignment
b) Hinge point
c) Slope
d) Catch point
e) Natural surface
Fill situation a) Horizontal alignment
b) Hinge point
c) Slope
d) Catch point
e) Natural surface
