7.5.6 Grid Stakeout
Description The Grid subprogram calculates and displays the stake out elements for the points on
the grid, orthogonal (∆L, ∆O, ∆H) and polar (∆Hz,  ,  ). The grid is defined
without boundaries. It can be extended over the first and second base points of the
reference line.

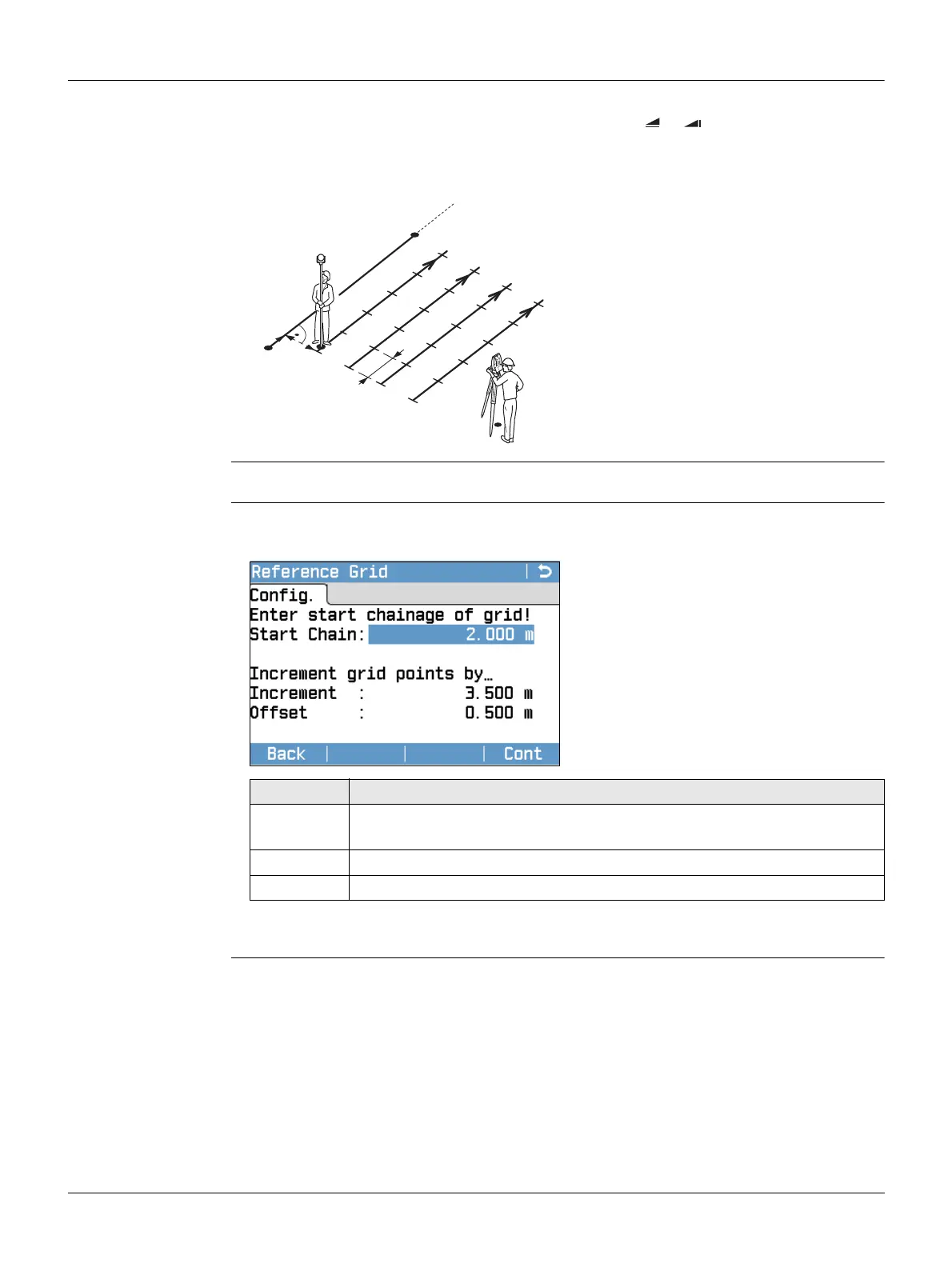

Example Grid Stakeout
Access Press Grid from the Reference Line - Info screen.
Grid definition Enter the chainage and the increment of grid points in length and cross direction of
the reference line.
Next step
Press Cont to proceed to the Reference Grid - Stakeout screen.
a Reference line
P0 Instrument station
P1 Start point
P2 End point
d1 Start distance
d2 Increment
d3 Line offset
TSOX_039
P1
P2
d1
a
d2
d3
P0
Field Description
Start Chain Distance from the reference line start point to the beginning grid start
point.
Increment Length of incrementation.
Offset Offset distance from the reference line.
