Leica FlexLine plus - Check

FlexLine plus, Programs
109
7.13.5 Check

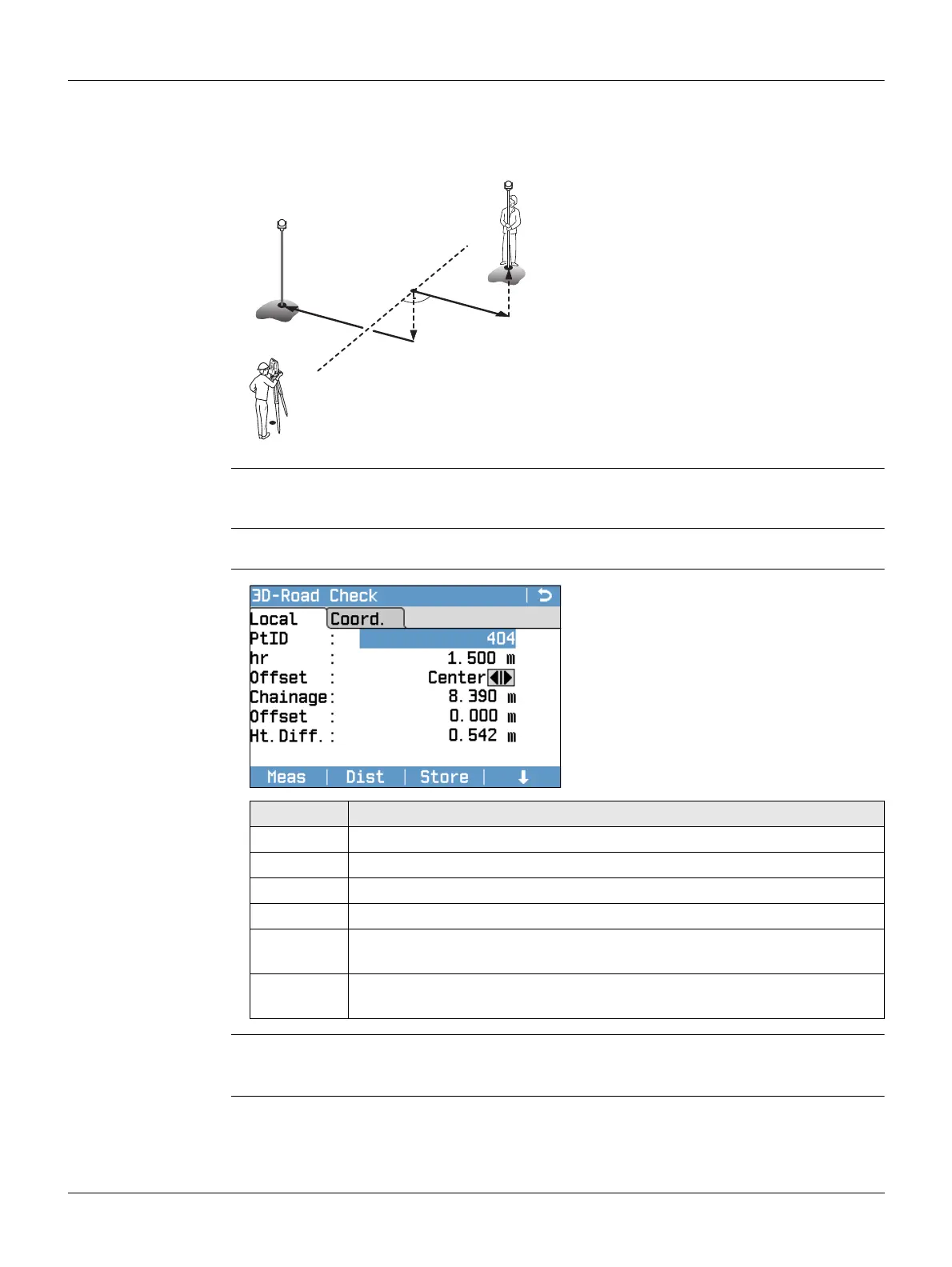

Description The subprogram Check is used for as-built checks. The points can be measured or
selected from the memory. The chainage and offset values are relative to an existing
horizontal alignment, and the height difference is relative to a vertical alignment or
manually entered height.

Defined chainage and increment values will not be considered in the subprogram
Check.
Access Press Check from the Define Stake/Check/Slope values screen.
3D-Road Check
Next step • Either, press Meas to measure and record.
• Or, press ESC to return to the Define Stake/Check/Slope values screen.
P0 Instrument station
P1 Target point
P2 Target point
a Horizontal alignment
bChainage
c+ Offset, positive
c- Offset, negative
d+ Height difference, positive
d- Height difference, negative
TSOX_053
a
P1
P2
c+
d+
b
c-
d-
P0
Field Description
Offset Defined horizontal offset. Left, Right or Centre.
Chainage Current chainage from measured point.
Offset Perpendicular offset to alignment.
Ht.Diff. Height difference between the measured point and the defined height.
∆East Calculated difference in Easting coordinate between the measured
point and the alignment element.
∆North Calculated difference in Northing coordinate between the measured
point and the alignment element.
