Leica FlexLine plus - Instrument Components

FlexLine plus, Description of the System
24

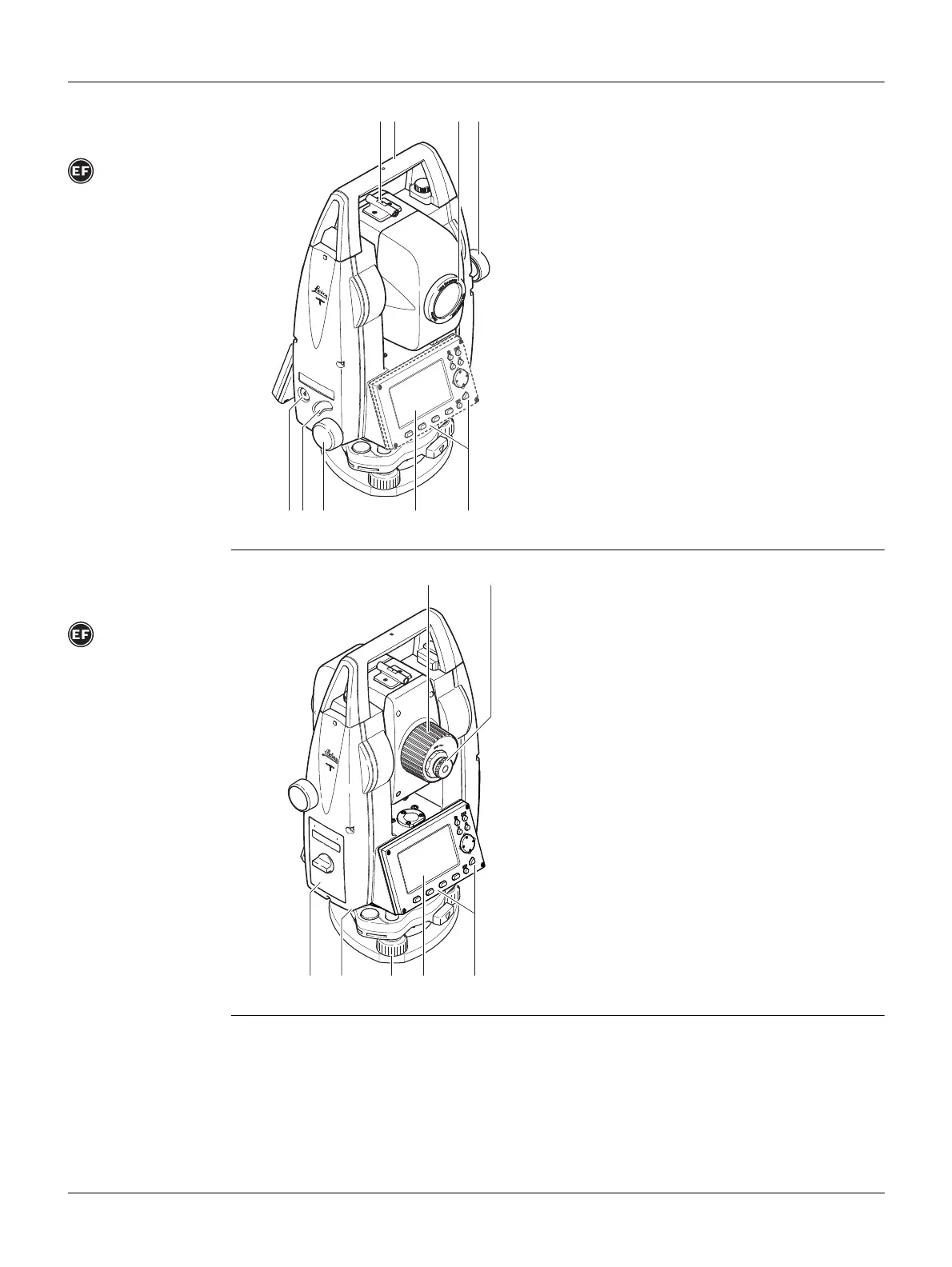

2.3 Instrument Components
Instrument
components
part 1 of 2
(Ergofocus
telescope)
Instrument
components
part 2 of 2
a) Optical sight
b) Detachable carrying handle with
mounting screw
c) Objective with integrated Electronic
Distance Measurement (EDM). Exit for
EDM laser beam
d) Vertical drive
e) On/Off key
f) Trigger key
g) Horizontal drive
h) Display
i) Second keyboard*; identical to first
keyboard
* Optional for TS02 plus
002724_002
ab c d
feg h i
j) Focusing telescope image
k) Eyepiece; focusing graticule
l) Battery cover
m) Serial interface RS232
n) Foot screw
o) Display
p) Keyboard
002725_002
jk
lm no p
