Leica FlexLine plus - Stakeout

FlexLine plus, Programs
66
7.4 Stakeout
Description Stakeout is a program used to place marks in the field at predetermined points. These
predetermined points are the points to be staked. The points to be staked may
already exist in a job on the instrument, or be manually entered.
The program can continuously display differences, between current position and
desired stake out position.

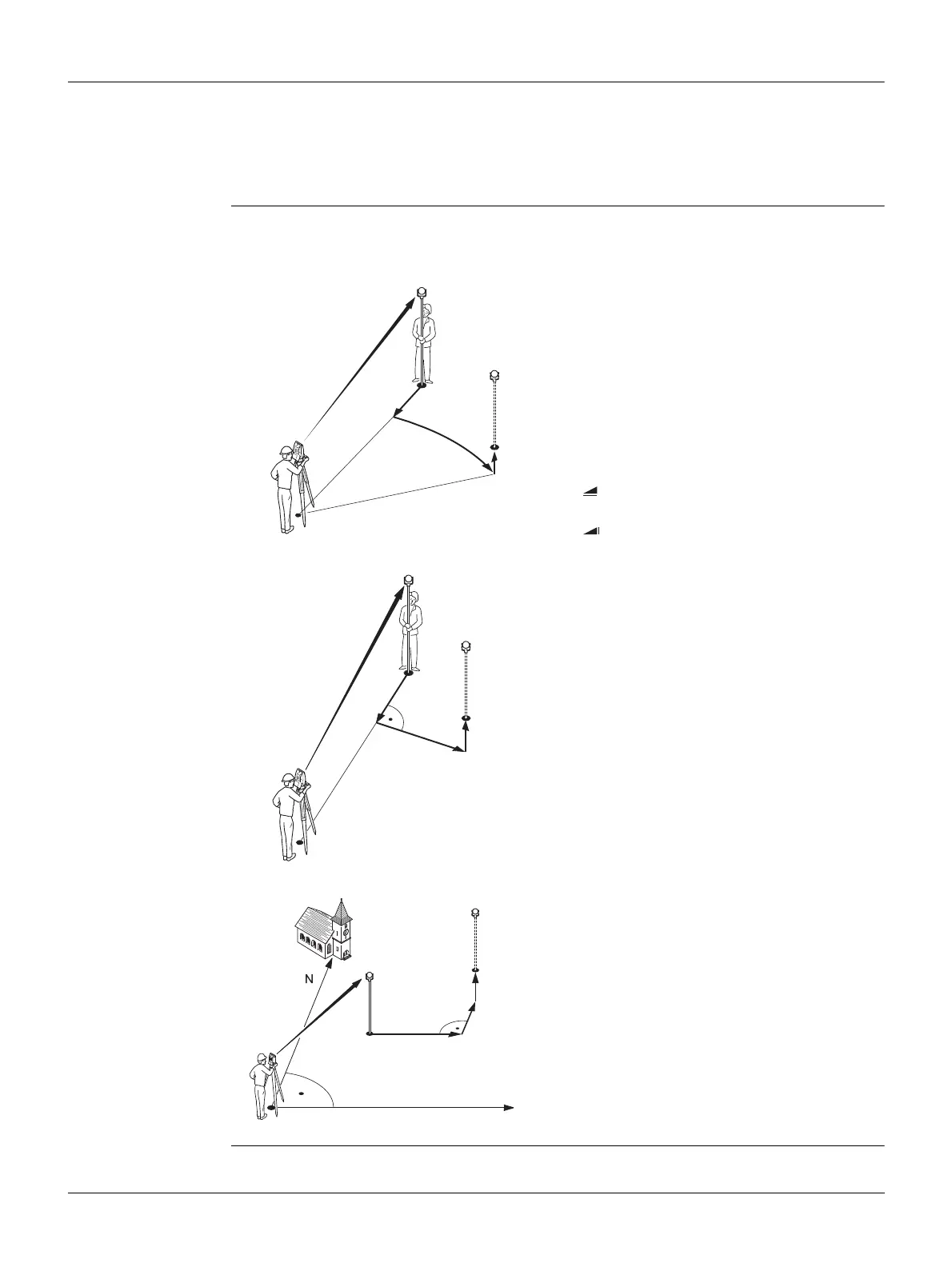

Stakeout modes Points can be staked using different modes: Polar mode, Orthogonal to station mode
and Cartesian mode.
Polar Stakeout mode
Orthogonal to Station Stakeout mode
Cartesian Stakeout mode
P0 Instrument station
P1 Current position
P2 Point to be staked
a-  : Difference in horizontal distance
b+ ∆Hz: Difference in direction
c+  : Difference in height
P0 Instrument station
P1 Current position
P2 Point to be staked
d1- ∆Length: Difference in longitudinal distance
d2+ ∆Trav.: Difference in perpendicular distance
d3+ ∆Height: Difference in height
P0 Instrument station
P1 Current position
P2 Point to be staked
a ∆East: Difference in Easting coordinate
b ∆North: Difference in Northing coordinate
c ∆Height: Difference in height
TSOX_027
P1
P2
P0
a-
c-
b+
P0
P1
P2
d2+
d3+
d1-
TSOX_028
P0
P1
a
b
c
P2
TSOX_032
