Leica FlexLine plus - Remote Height

FlexLine plus, Programs
95
7.10 Remote Height
Description Remote Height is a program used to compute points directly above the base prism
without a prism at the target point.
Access
Remote height
measurement
Measure to the base point or press hr=? to determine an unknown target height.
Next step
After measuring, the Aim at remote point! screen appears.
Remote Height -
Result - Aim at
remote point!
Aim the instrument at the inaccessible remote point.
Next step • Either, press Cont to save the measurement and record the calculated coordinates
of the remote point.
•Or, press Base to enter and measure a new base point.
• Or, press ESC to exit the program.

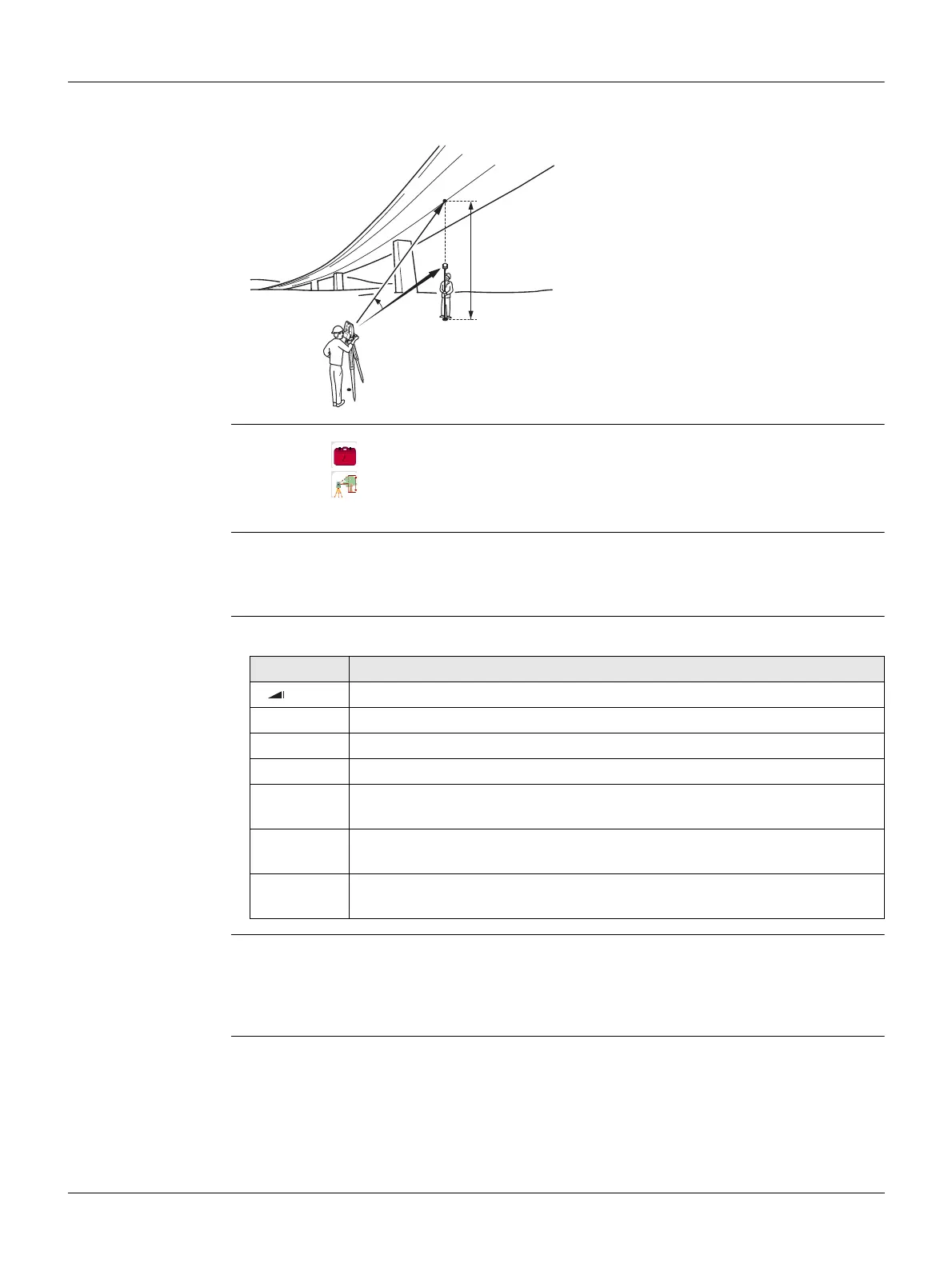

P0 Instrument station
P1 Base point
P2 Remote point
d1 Slope distance
a Height difference from P1 to P2
 Vertical angle between base point
and remote point
TSOX_050
a
P1
P0
P2
d1
α
1. Select Programs from the Main Menu.
2. Select Remote Ht from the Programs Menu.
3. Complete program pre-settings. Refer to "6 Programs - Getting Started".
Field Description
 Height difference between the base point and the remote point.
Height Height of the remote point.
East Calculated Easting coordinate for the remote point.
North Calculated Northing coordinate for the remote point.
∆East Calculated difference in Easting coordinate between the base point and
the remote point.
∆North Calculated difference in Northing coordinate between the base point
and the remote point.
∆Height Calculated difference in Height between the base point and the remote
point.
