7.13.6 Stake Slope

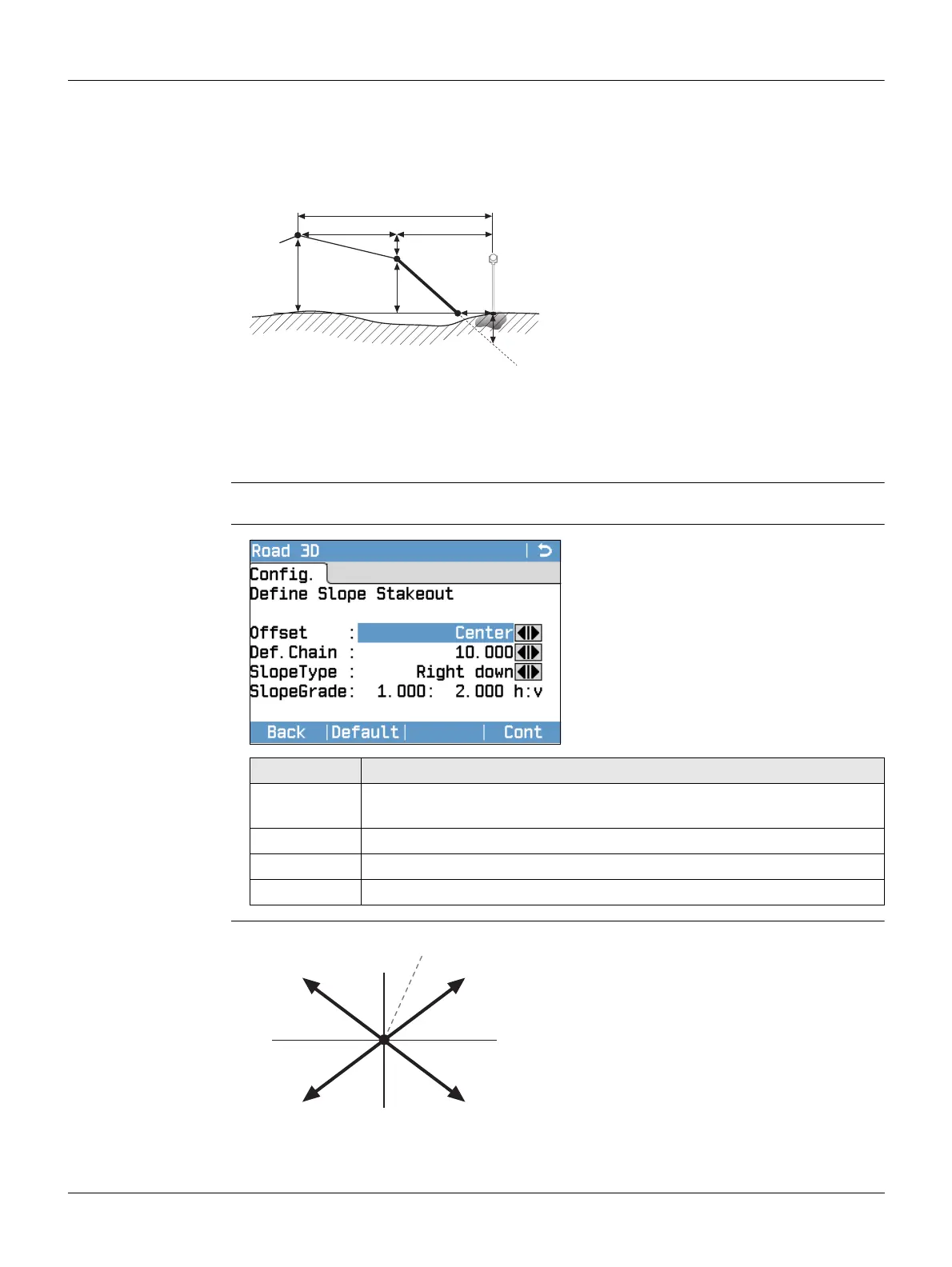

Description The subprogram Stake Slope is used to stake out the catch point, which is the inter-
section point of a defined slope with the natural surface.
The slope is always defined as starting from a hinge point. If the parameter offset
right/left and height difference are not entered, the point at the defined chainage on
the horizontal alignment is the hinge point.
Access Press Stk Slp from the Define Stake/Check/Slope values screen.
Define Slope
Stakeout
Slope Type
P1 Measured point
a Horizontal alignment
b Defined offset
c Defined height difference
d Hinge point
e Defined slope
fCatch point
g Natural surface
h  Offset to catch point
i Cut/fill to catch point
j Offset to hinge point
k Offset to alignment
l Height difference to hinge point
m Height difference to alignment
TSOX_056
P1
f
e
i
h
g
a
c
b
k
lm
j
d
Field Description
Offset Horizontal offset from the horizontal alignment to define the hinge
point.
Def.Chain Defined chainage for stakeout.
SlopeType Type of slope. Refer to "Slope Type".
SlopeGrade Slope ratio. Refer to " Slope Grade".
Left up Hinge point Right up Left up
Creates an upward plane extending to the
left of the defined hinge point.
Right up
Creates an upward plane extending to the
right of the defined hinge point.
Left down
Creates a downward plane extending to
the left of the defined hinge point.
Right down
Creates a downward plane extending to
the right of the defined hinge point.
Left down Right down
TSOX_120
