FlexLine plus, Programs
111
Slope Grade Ratio of the slope. The unit for slope grade is defined in the Regional Settings screen.
Refer to "5.2 Regional Settings".
Next step
Press Slope Stakeout to proceed to the Slope Stakeout screen.

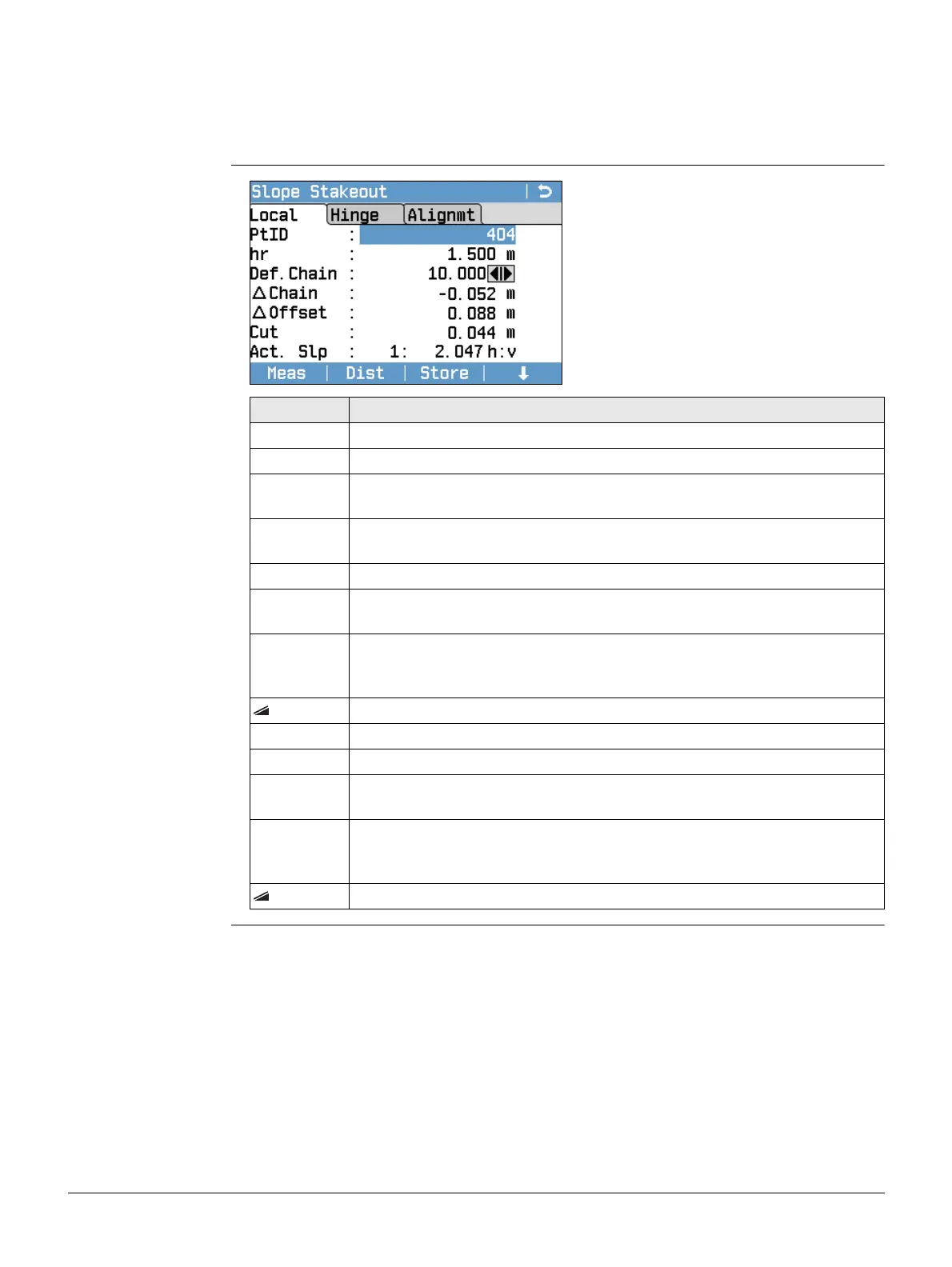

Slope Stakeout
Field Description
DefChain Defined chainage for stake out.
∆Chain Difference between the defined chainage and the measured chainage.
∆Offset Horizontal offset between the catch point of defined slope and the
measured position.
Cut/Fill Vertical offset between the catch point of the defined slope and the
measured position. A cut is above the slope, a fill is below the slope.
Act.Slope Measured slope of the reflector position to the hinge point.
Offs.Hng Measured offset to the horizontal alignment including offset right and
offset left.
∆H Hinge Height difference to the hinge point. The vertical offset between the
defined height at the current chainage, and the measured position,
including the defined height difference.
Hinge Slope distance from the measured point to the hinge point.
Height Height value of the measured point.
Act. Ch. The measured chainage.
Offs.Aln Measured offset to the horizontal alignment excluding offset right and
offset left.
∆H Aln Height difference to the alignment. The vertical offset between defined
height at the current chainage, and the measured position, excluding
the defined height difference.
Aln Slope distance from the measured point to the alignment.
