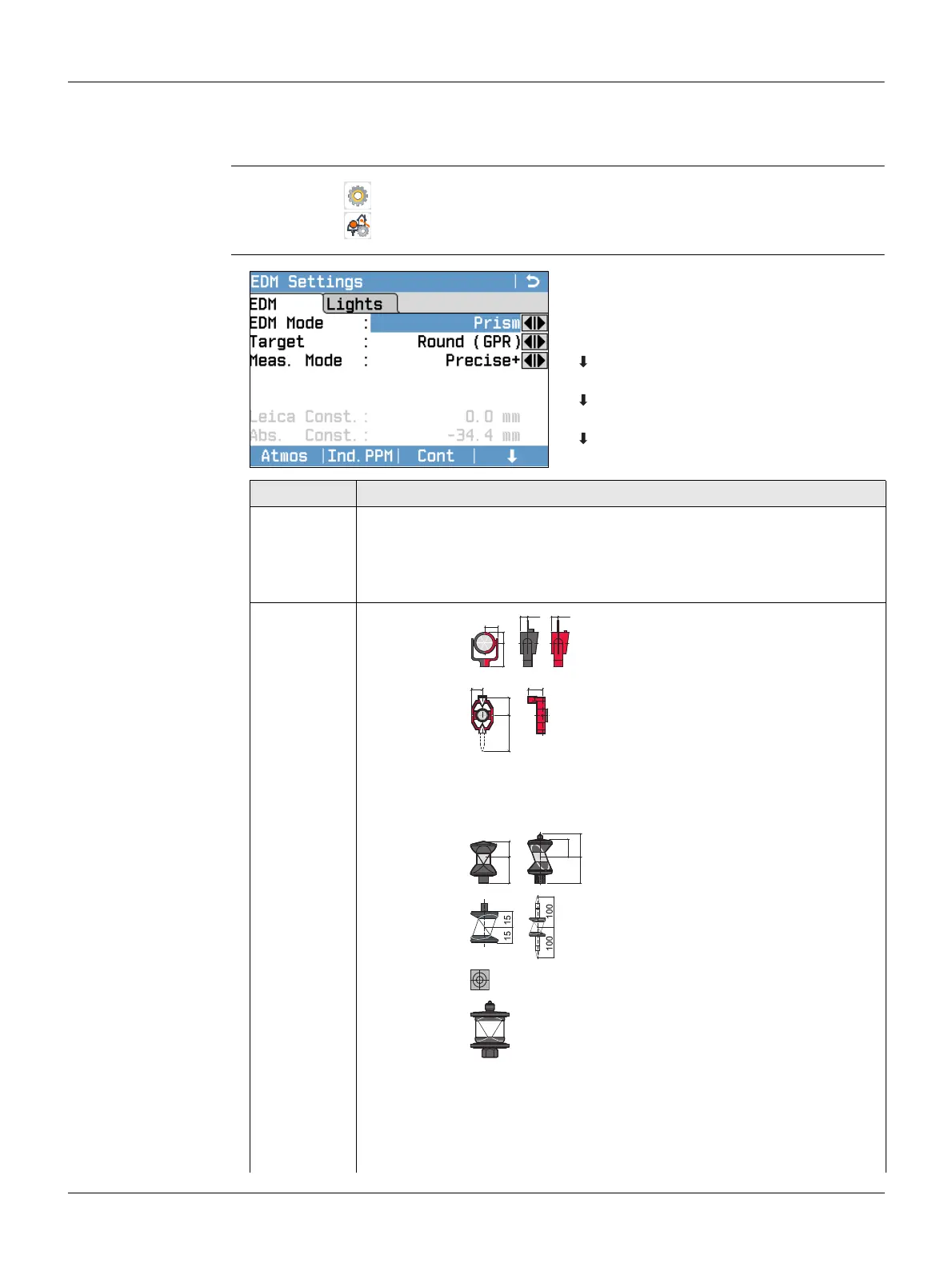

5.5 EDM Settings
Description The settings on this screen define the active EDM, Electronic Distance Measurement.
Different settings for measurements are available with Non-Prism (NP) and Prism (P)
EDM modes.
Access
EDM Settings
1. Select Settings from the Main Menu.
2.
Select EDM from the Settings Menu.
Atmos
To enter atmospheric data ppm.
Ind.PPM
To enter an individual ppm value.
Scale
To enter projection scale details.
Signal
To view EDM Signal reflection value.
Freq.
To view the EDM frequency.
Field Description
EDM Mode Prism For distance measurements using prisms.
Non-Prism For distance measurements without prisms.
Tape For distance measurements using Retro reflective
targets (3 mm + 2 ppm).
Target Round (GPR) Standard prism GPR121/GPR111
Leica Const.: 0.0 mm
Mini (GMP)
Mini0
(GMP111-0)
GMP111
Leica Const.: +17.5 mm
GMP111-0
Leica Const.: 0.0 mm
Jp Mini
(SMP222)
Miniprism Leica Const.: +34.4 mm
360° (GRZ4) GRZ4/GRZ122
Leica Const.: +23.1 mm
360°Mini(GR
Z101)
GRZ101
Leica Const.: +30.0 mm
Tape (GZM) Leica Const.: +34.4 mm
360°
(MPR122)
MPR122
Leica Const.: +28.1 mm
None Without prism Leica Const.: +34.4 mm
User 1 /
User 2
For any prism modes, the user can define two of their
own prisms.
Constants can be entered in mm in either Leica Const.
or Abs. Const.. For example:
