7.8 Tie Distance
Description Tie Distance is a program used to compute slope distance, horizontal distance, height
difference and azimuth of two target points which are either measured, selected from
the memory, or entered using the keypad.
Tie distance
methods
The user can choose between two different methods:

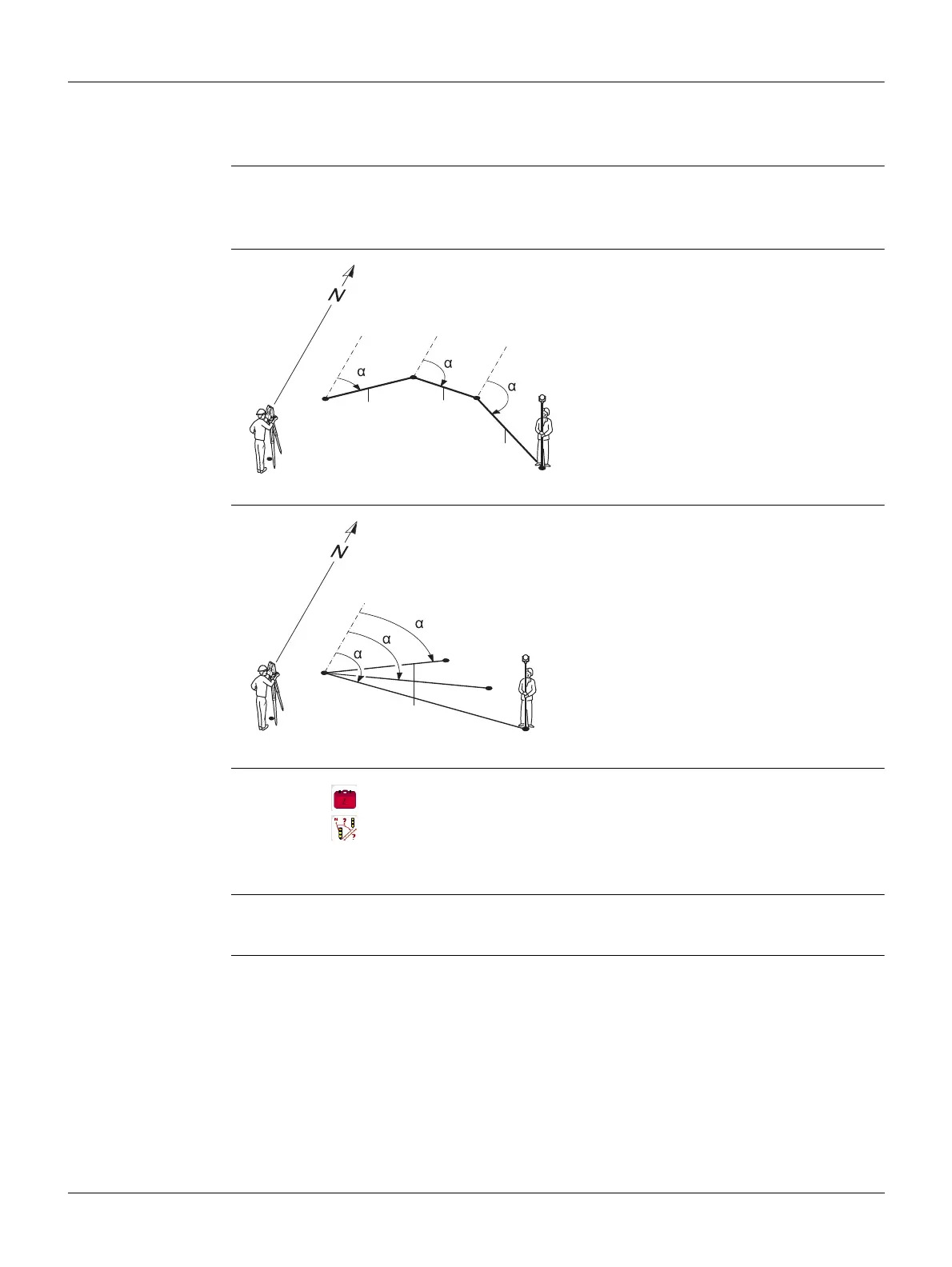

• Polygonal: P1-P2, P2-P3, P3-P4.
• Radial: P1-P2, P1-P3, P1-P4.
Polygonal method
Radial method
Access
Tie distance
measurements
After completing the measurements required, the Tie Distance Result screen will
appear.
P0 Instrument station
P1-P4 Target points
d1 Distance from P1-P2
d2 Distance from P2-P3
d3 Distance from P3-P4
1 Azimuth from P1-P2
2 Azimuth from P2-P3
3 Azimuth from P3-P4
TSOX_046
P1
P0
P2
P3
P4
Hz = 0
d3
d2
d1
1
2
3
P0 Instrument station
P1-P4 Target points
d1 Distance from P1-P2
d2 Distance from P1-P3
d3 Distance from P1-P4
1 Azimuth from P1-P4
2 Azimuth from P1-P3
3 Azimuth from P1-P2
TSOX_047
P1
P0
P2
P3
P4
Hz = 0
d1
d3
d2
1
2
3
1. Select Programs from the Main Menu.
2. Select Tie Dist. from the Programs Menu.
3. Complete program pre-settings. Refer to "6 Programs - Getting Started".
4. Select Polygonal or Radial.
