7.9.3 Area to Reference Plane
Area to Reference
Plane
Next step
1. Measure three new points or select three exisiting points to define the reference
plane.
2. Then measure or select existing points to define the area.
3. The 2D and 3D areas are calculated automatically and displayed once three points
have been measured or selected.
Calc
To display and record additional
results.
1PtBack
To undo measurement or selection of
the previous point.

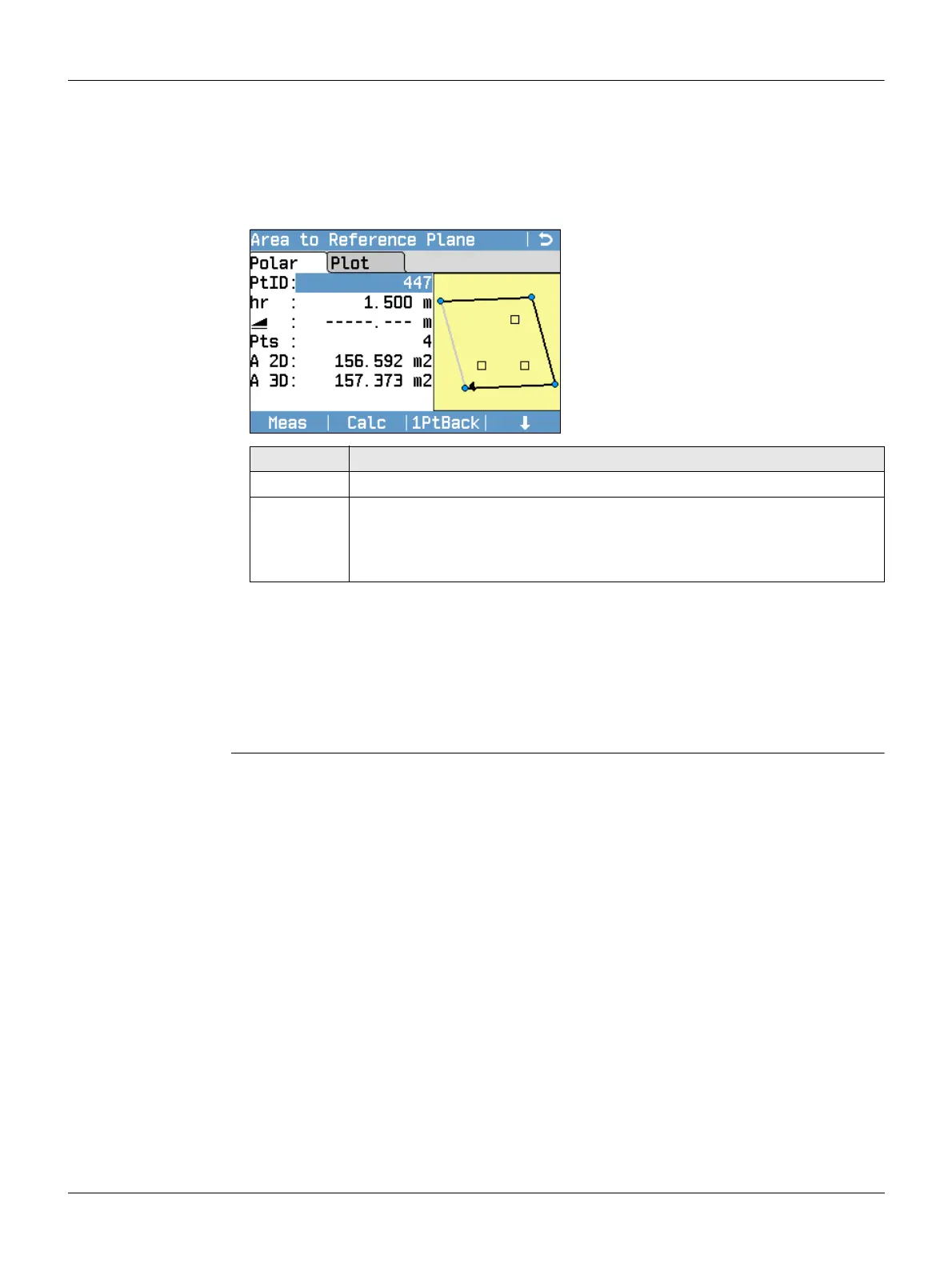

Field Description
A 2D Two-dimensional area calculated by projection onto a horizontal plane.
A 3D Three-dimensional area calculated by projection onto the manually
defined reference plane.
The 3D area is calculated automatically after measuring or selecting
three points.
1. Press Calc to calculate area and volume and proceed to the Area to Ref. Plane
Results screen.
2. In the Area to Ref. Plane Results screen.
• View the area in ha and m
2
as well as the perimeter of the area.
•Press NewArea to define a new area.
• Or, press End to exit the program.
