Leica FlexLine plus - Stakeout

FlexLine plus, Programs
82

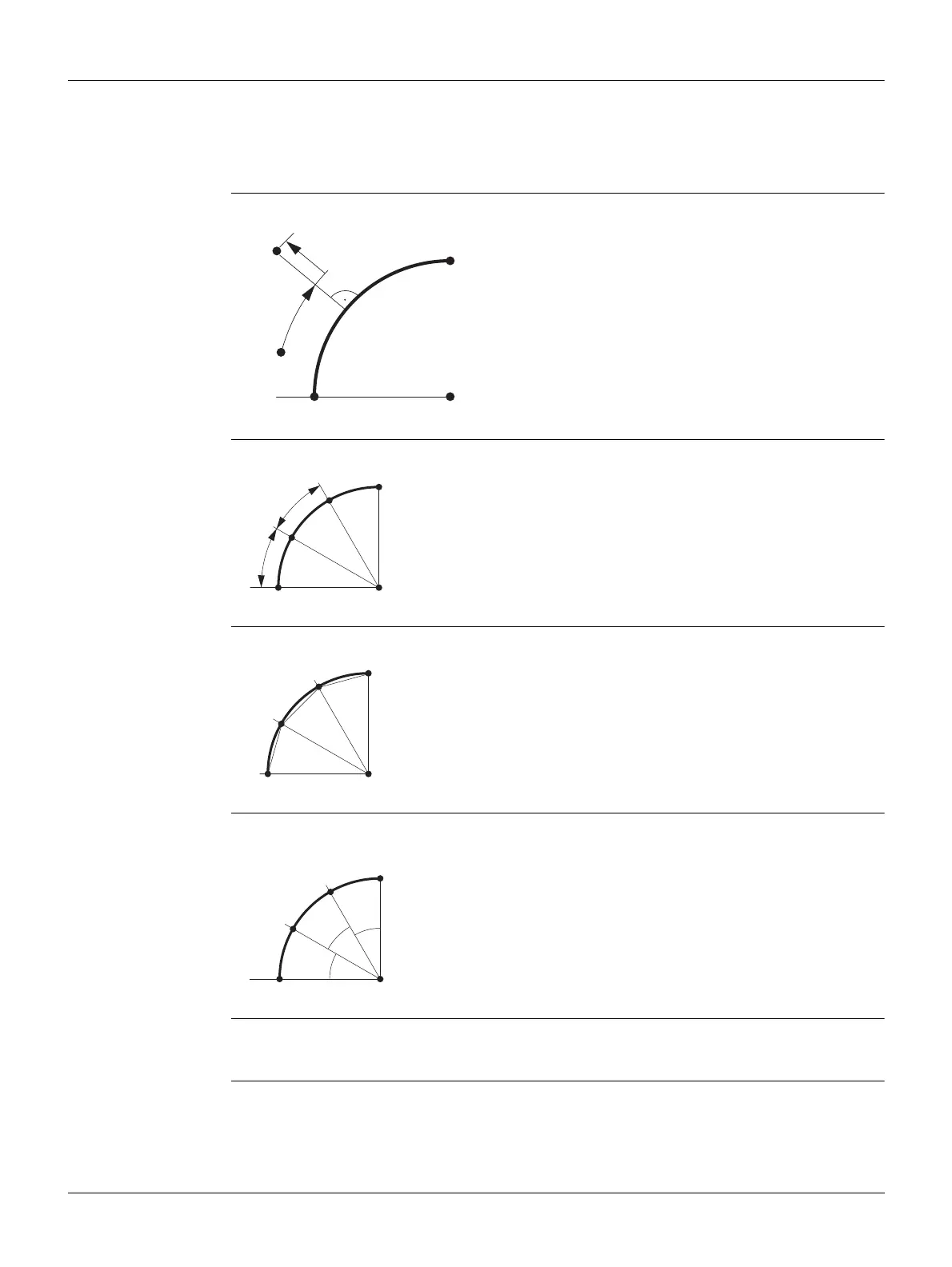

7.6.4 Stakeout
Description The Stakeout subapplication calculates the difference between a measured point and
the calculated point. The Reference Arc program supports four ways to stake out:
Stake out point To stake out a point by entering a line and an offset value.
Stake out arc To stake out a series of equidistant points along the arc.
Stake out chord To stake out a series of equidistant chords along the arc.
Stake out angle To stake out a series of points along the arc defined by the angle segments from the
center point of the arc.
Access 1) Press Stake from the Reference Arc - Info screen.
2) Select one of the four methods of stake out available.
• Stake out point • Stake out chord
• Stake out arc • Stake out angle
P0 Center point of arc
P1 Start point of arc
P2 Measured point
P3 Stake out point
P4 End point of arc
a Radius of arc
b+ Line offset
c- Perpendicular offset
TSOX_042
P0
a
P1
P3
P2
c-
b+
P4
P0 Center point of arc
P1 Start point of arc
P2 Stake out point
P3 Stake out point
P4 End point of arc
a Radius of arc
bArc length
TSOX_043
P0
P1
P2
b
b
a
P3
P4
P0 Center point of arc
P1 Start point of arc
P2 Stake out point
P3 Stake out point
P4 End point of arc
a Radius of arc
bChord length
TSOX_044
P0
P1
P2
a
b
P3
P4
P0 Center point of arc
P1 Start point of arc
P2 Stake out point
P3 Stake out point
P4 End point of arc
a Radius of arc
bAngle
TSOX_045
P0
P1
P2
P3
a
b
b
b
P4
