Leica FlexLine plus - 2 D; 3 D Area

FlexLine plus, Programs
89

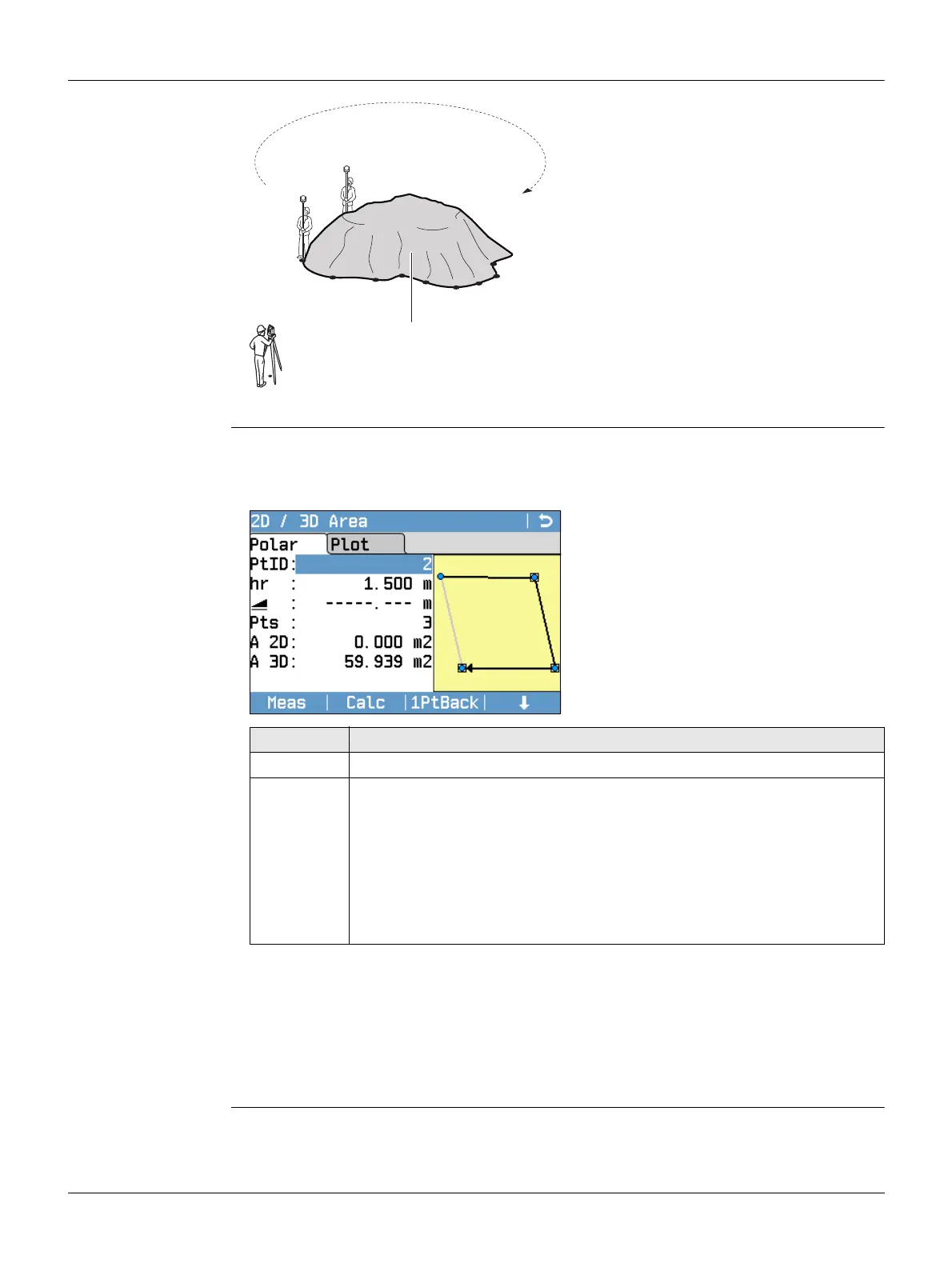

7.9.2 2D / 3D Area
Graphical
representation
2D / 3D Area
Next step
Press Calc to calculate area and volume and proceed to the 2D / 3D Area Results
screen.
In the 2D / 3D Area Results screen.
• View the area in ha and m
2
as well as the perimeter of the area.
• Press NewArea to define a new area.
• Or, press End to exit the program.
P0 Instrument station
P1a.. Boundary point
a Volume as calculated by the trian-
gulated irregular network (TIN)
001857_002
P0
P1a
P1b
a
1. Measure or select existing points to define the area.
2. The 2D and 3D areas are calculated automatically and displayed once three points
have been measured or selected.
Calc
To display and record additional
results.
1PtBack
To undo measurement or selection of
the previous point.
Field Description
A 2D Two-dimensional area calculated by projection onto a horizontal plane.
A 3D Three-dimensional area calculated by projection onto an automatically
defined horizontal reference plane.
The 3D area is calculated based on the following:
• The system will use the three points which cover the largest area.
• If there are two or more equal largest areas, the system will use the
area with the shortest perimeter.
• If the largest areas have equal perimeters, the system will use the
area with the last measured point.
