7.9.5 Area Division
Area division
methods

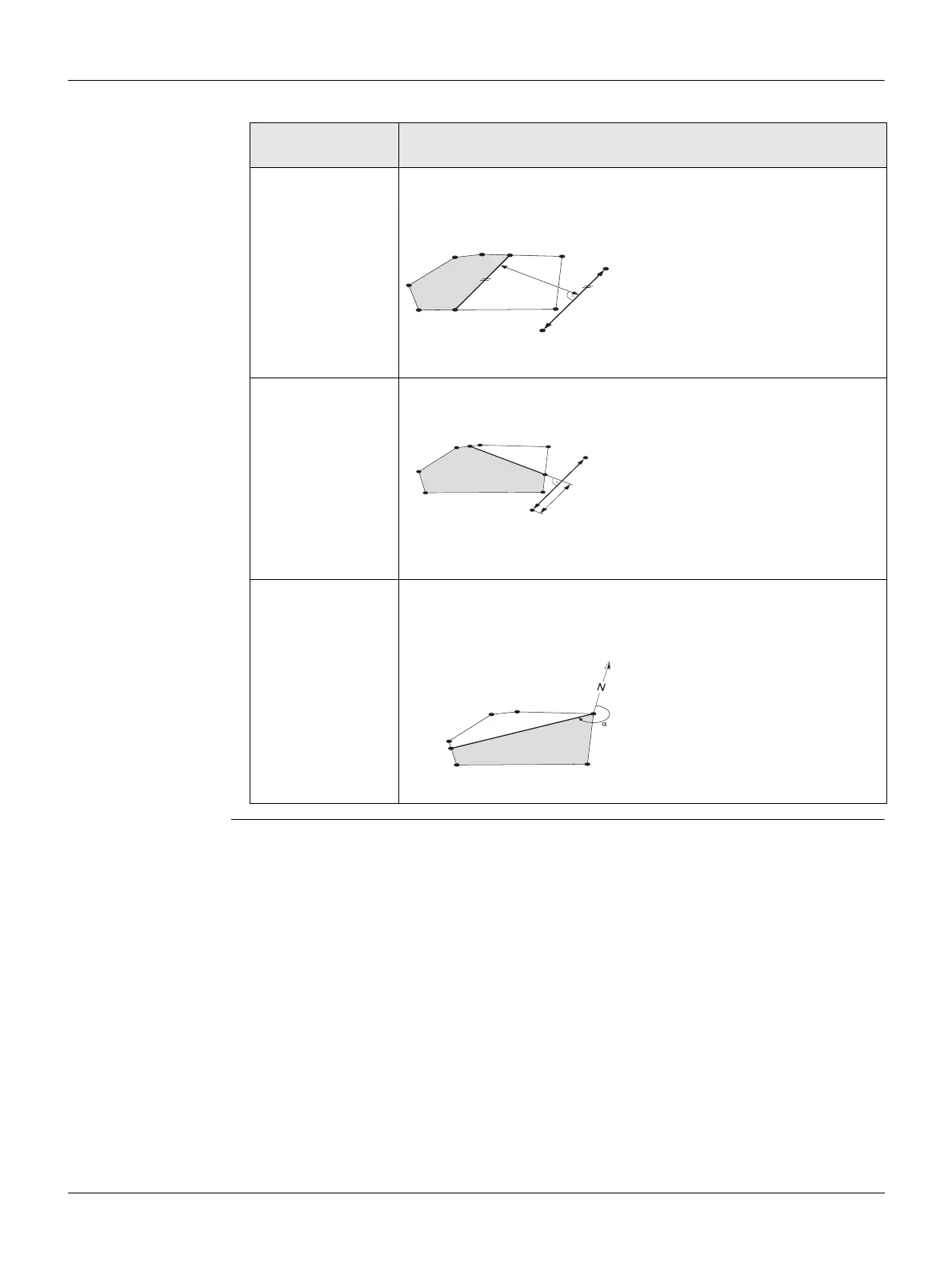

The diagrams show the area division methods.
Area Division
method
Description
Parallel line(%) The border will be parallel to a line defined by two points. The
division is calculated using a defined percentage split.
P0 First point of defined line
P1 Second of defined line
P2 Ptn1 First new point on
parallel line
P3 Ptn2Second new point on
parallel line
dDistance
a ALeft
Perpend. line(%) The border will be perpendicular to a line defined by two points.
The division is calculated using a defined percentage split.
P0 First point of defined line
P1 Second of defined line
P2 Ptn1 First new point on
perpendicular line
P3 Ptn2Second new point on
perpendicular line
dDistance
a ALeft
Swing line(%) The area is divided by a line rotated around an existing point of
the area. The division is calculated using a defined percentage
split.
P0 Selected rotation point
P1 New point on swing line
α Azim.
a ALeft
