7.13.4 Stake
Description The subprogram Stake is used to stake out points relative to an existing alignment.
The height difference is relative to a vertical alignment or manually entered height.
Access Press Stake from the Define Stake/Check/Slope values screen.

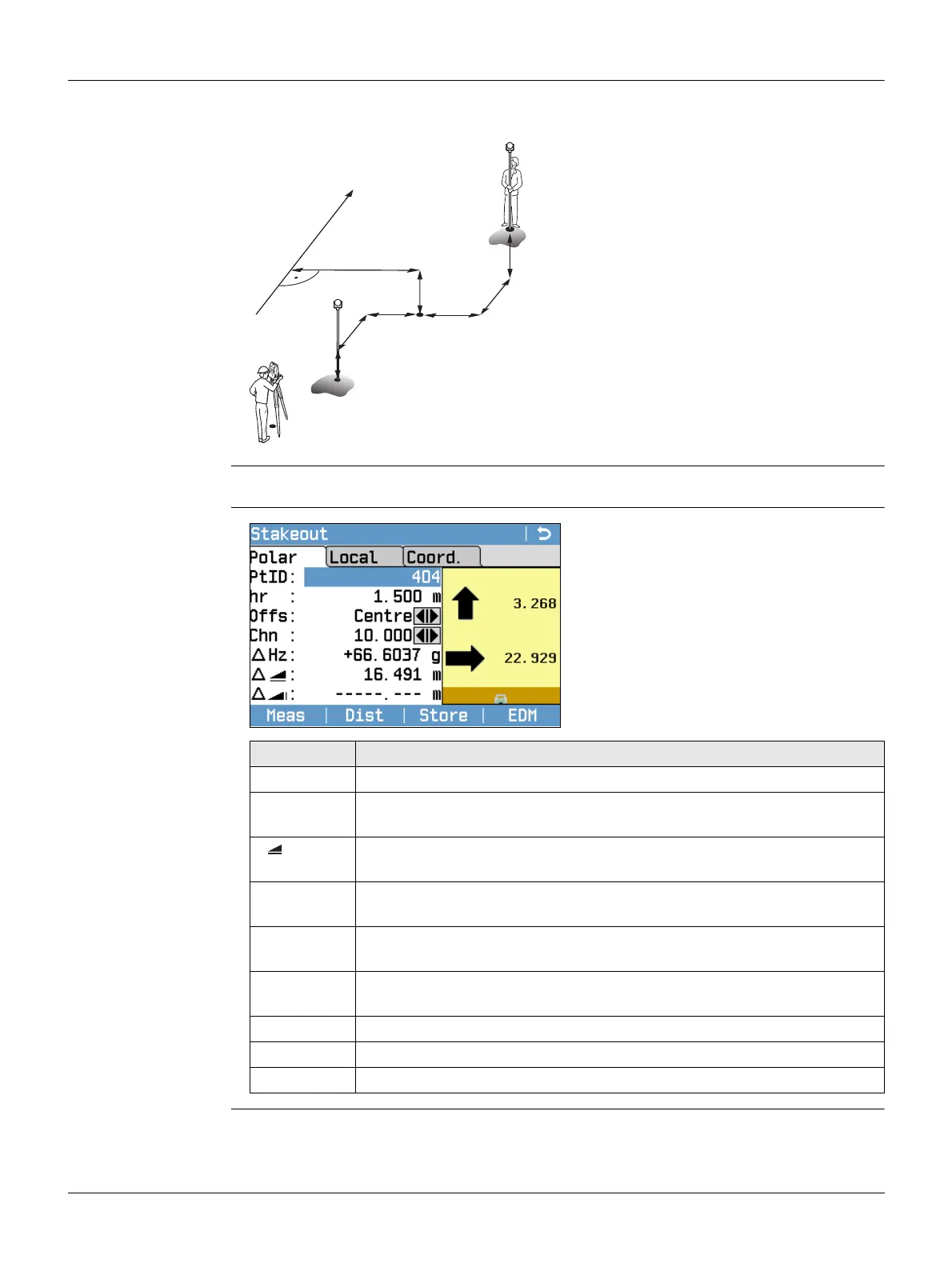

Stakeout
Next step • Either, press Meas to measure and record.
• Or, press ESC to return to the Define Stake/Check/Slope values screen.
P0 Instrument station
P1 Target point
P2 Measured point
P3 Measured point
a Horizontal alignment
b Defined chainage
c Offset
d Height difference
e+  Offset, positive
e-  Offset, negative
f+  Chainage, positive
f-  Chainage, negative
g+  Height, positive
g-  Height, negative
TSOX_054
P0
a
d
e+
e-
f+
f-
g+
g-
c
P1
P2
P3
b

To find/enter codes, press the
FNC/Favourites key and select
Coding.
Field Description
Chainage Selected chainage to stake out.
∆Hz Angle offset: Positive if the stake out point is to the right of the meas-
ured point.
 Horizontal offset: Positive if the stake out point is further away than
the measured point.
∆Height Height offset: Positive if the stake out point is higher than the meas-
ured point.
∆Chain Longitudinal offset: Positive if the stake out point is further away than
the measured point.
∆Offset Perpendicular offset: Positive if the stake out point is to the right of
the measured point.
Def.East Calculated East coordinate of the stake out point.
Def.North Calculated North coordinate of the stake out point.
Def.Hght Calculated Height of the stake out point.
