FlexLine plus, Description of the System
25

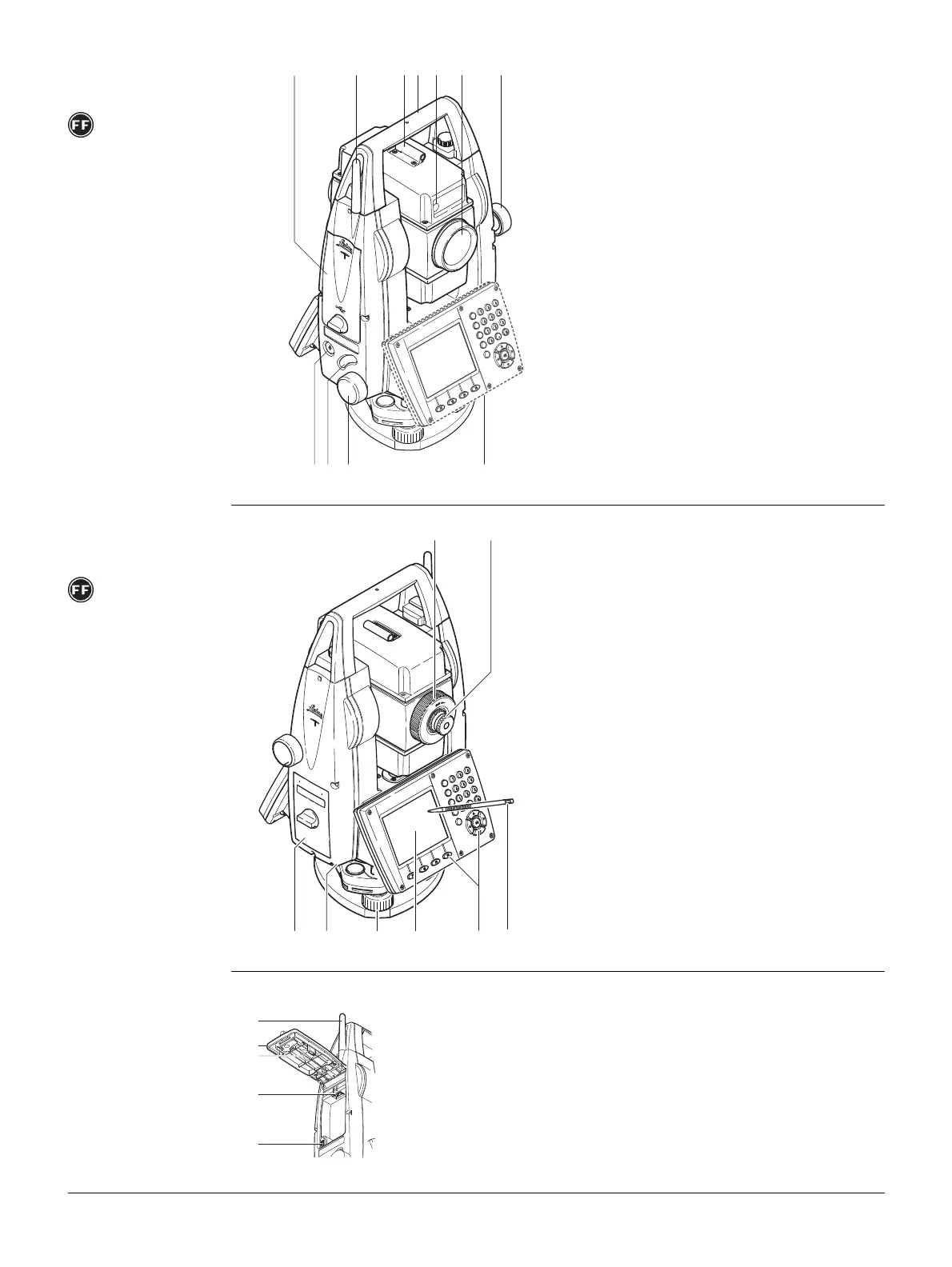

Instrument
components
part 1 of 2
(Finefocus
telescope)
Instrument
components
part 2 of 2
Communication side
cover
A Communication side cover is included for TS06 plus/TS09 plus.
a) Compartment for USB memory stick and
USB cable ports
b) Bluetooth antenna
c) Optical sight
d) Detachable carrying handle with
mounting screw
e) Electronic Guide Light (EGL)*
f) Objective with integrated Electronic
Distance Measurement (EDM). Exit for
EDM laser beam
g) Vertical drive
h) On/Off key
i) Trigger key
j) Horizontal drive
k) Second keyboard**; identical to first
keyboard
* Optional for TS06 plus
** Optional for TS06 plus/TS09 plus
ab
c
dfeg
j
kh i
TSOX_009a
l) Focusing telescope image
m) Eyepiece; focusing graticule
n) Battery cover
o) Serial interface RS232
p) Foot screw
q) Display
r) Keyboard, model may vary depending
on instrument
s) Stylus
001947_002
lm
no p q rs
a) Bluetooth antenna
b) Compartment lid
c) USB memory stick cap storage
d) USB host port
e) USB device port
